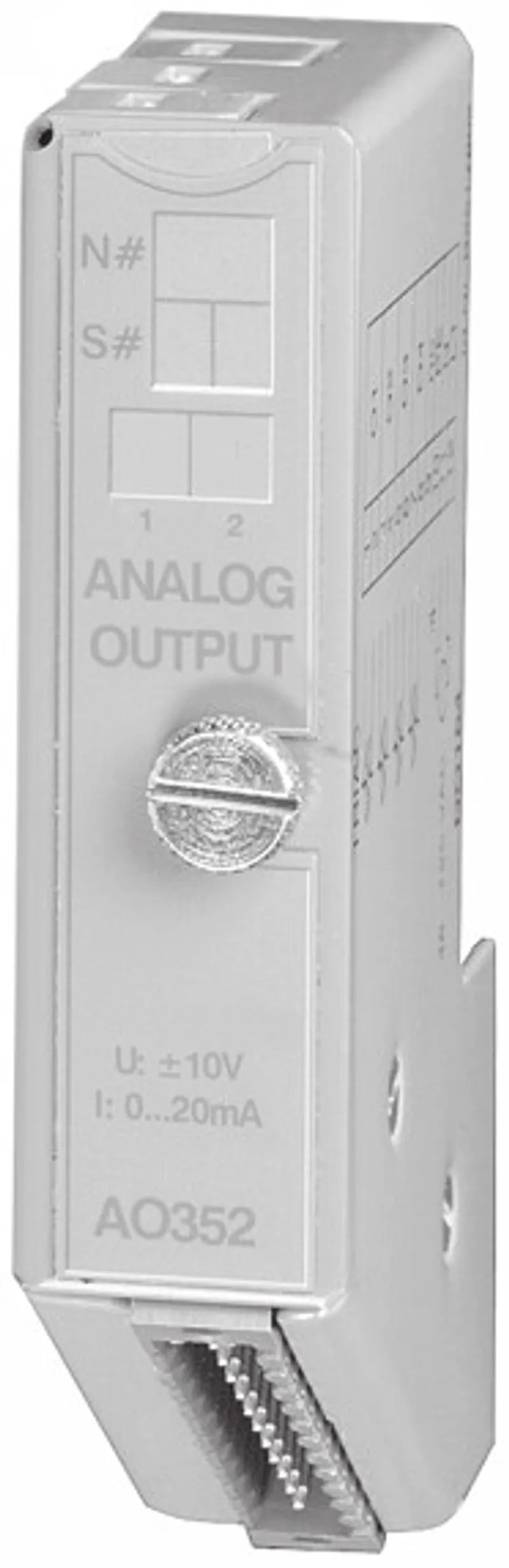

B&R 7AO352.70

2003 analog output module 2 outputs, ±10 V or 0 to 20 mA

MPN: 7AO352.70

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7AO352.70?

2003 analog output module 2 outputs, ±10 V or 0 to 20 mA, 12-bit, screw-in module, order 1x terminal block TB712 separately!

Specifications

General Information

Short Description	2003 Analog Output Module, 2 outputs, +/- 10 V or 0 -20 mA, 12 Bit, screw-in module, Order TB712 terminal block separately!
C-UL-US Listed	Yes
B&R ID Code	$0E
Slot	AF101 adapter module, CP interface

Static Characteristics

Module Type	B&R 2003 screw-in module
Output Signal	Can be set for each channel using a switch
Current	0 - 20 mA
Voltage	±10 V
Digital Converter Resolution	12 Bit
Short Circuit Protection	Yes
Precision at 25 °C	Voltage Current
Offset	Max. ±5.2 mV Max. ±5.3 µA
Gain	Max. 0.3 % Max. ±0.06 %
Linearity Error	Max. ±0.13 % of final value Max. ±0.13 % of final value
Power Consumption	Max. 1.2 W
Load	Max. 400 Ω
LSB Value (12 Bit)	5.16 µA ±2.4 % / LSB
Temperature Drift	±122 ppm / °C ±4 µA / °C
Load	Max. 10 mA
LSB Value (12 Bit)	5.15 mV ±0.8 % / LSB
Temperature Drift	±60 ppm / °C ±1.4 mV / °C

Operating Characteristics

Electrical Isolation – Output - PCC	No
Electrical Isolation – Output - Output	No

Mechanical Characteristics

Dimensions

B&R 2003 screw-in module

Accessories

Required accessories (order separately)

7TB712.91	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB712.9	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7AO352.70PDF · 324 KB · 1.0 (06/08/2004) - EN
