B&R 7AT324.70

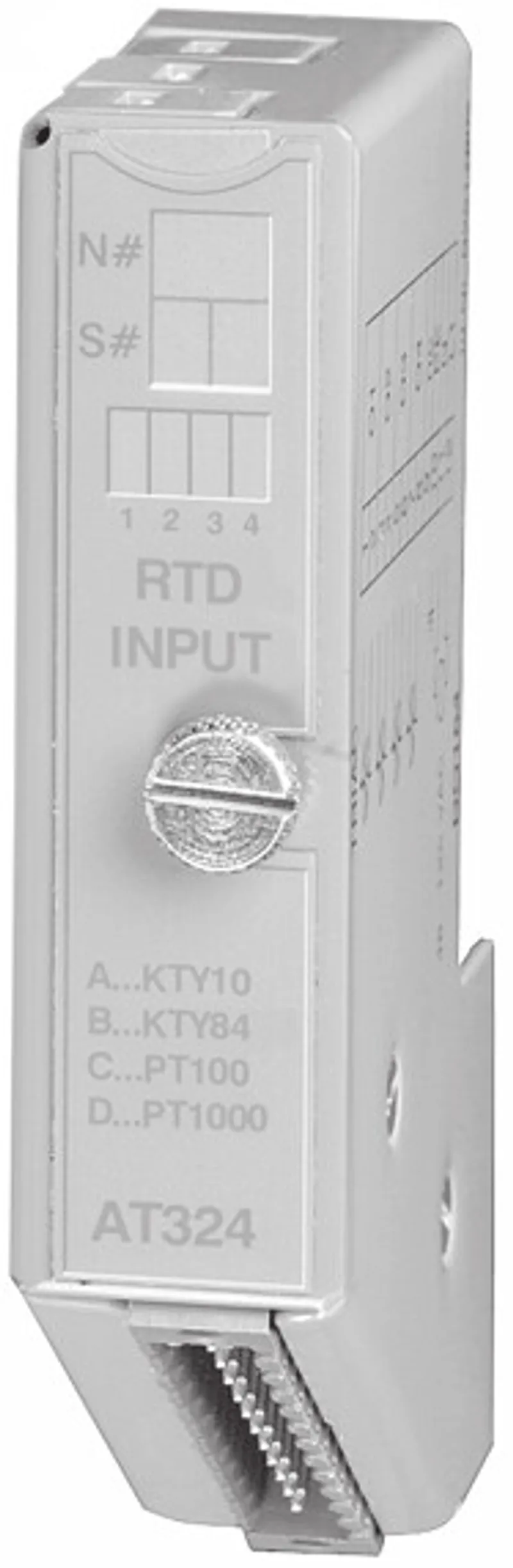

2003 analog input module, 4 temperature inputs

MPN: 7AT324.70

€68.90excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7AT324.70?

2003 analog input module, 4 temperature inputs (2-wire connections), KTY10 -50 to +150°C, KTY84 -40 to +300°C, Pt100 -200 to +850°C, Pt1000 -200 to +850°C, screw-in module, order 1x terminal block TB712 separately!

Specifications

General Information

Short Description	2003 Analog Input Module, 4 temperature inputs (2-line connection), KTY10 -50 to +150 degrees C, KTY84 -40 to +300 degrees C, PT100 -200 to +850 degrees C, PT1000 -200 to +850 degrees C, screw-in module, Order terminal block TB712 separately!
C-UL-US Listed	in preparation
B&R ID Code	$3E
Slot	AF101 adapter module, CP interface

Static Characteristics

Module Type	B&R 2003 screw-in module
Input Type	Resistance measurement using 2-line procedure with constant current feed
Sensor – KTY10-6	-50 °C to +150 °C
Sensor – KTY84-130	-40 °C to +300 °C
Sensor – PT100	-200 °C to +850 °C
Sensor – PT1000	-200 °C to +850 °C
Wiring	2-line
Conversion Method	Sigma Delta
Digital Converter Resolution	16 Bit
Input Amplification	Can be set for each channel using software
G=1	KTY10-6, KTY84-130, PT1000
G=2	PT100
Reference	5 kΩ ±0.1 %
Measurement Current	200 µA ±5.22 %
Resistance Measurement Range at G = 1 at G = 2	1 to 4995 Ω 1 to 2497.5 Ω
Input Amplification – Uniform	60 ms
Input Amplification – Different	190 ms
Resolution in °C – KTY10-6	1 LSB = 0.01 °C
Resolution in °C – KTY84-130	1 LSB = 0.03 °C
Resolution in °C – PT100	1 LSB = 0.15 °C
Resolution in °C – PT1000	1 LSB = 0.03 °C
Resolution in Ω at G = 1 at G = 2	1 LSB = 76.29395 mΩ ±0.1 % 1 LSB = 38.14697 mΩ ±0.1 %
Data Format	INT16
Standardization	Can be set per channel
KTY10-6	-50.00 °C to +150.00 °C
KTY84-130	-40.00 °C to +300.00 °C
PT100	-200.0 °C to +850.0 °C
PT1000	-200.0 °C to +850.0 °C
Value range for resistance measurement at G = 1 at G = 2	Can be set per channel 0.1 Ω to 5000.0 Ω 0.05 Ω to 5000.0 Ω
Measurement Range Monitoring – Open Inputs	$7FFF
Measurement Range Monitoring – Broken Line	$7FFF
Measurement Range Monitoring – Range Exceeded (neg.)	$8001
Measurement Range Monitoring – Range Exceeded (pos.)	$7FFF
Measurement Range Monitoring – General Error	$8000
Maximum Error at 25 °C	±0.1 %
Offset Drift	±2.5 mΩ / °C
Gain Drift	±30 ppm / °C
Maximum Error over Entire	±0.2 %
Repeat Precision	±0.01 %
Common Mode Rejection – DC	>90 dB
Common Mode Rejection – 50 Hz	>150 dB
Cross-talk between Channels	Typ. 100 dB
Power Consumption	Max. 0.1 W

Dynamic Characteristics

Input Filter – Type	Lowpass 1st Order
Input Filter – Cut-off Frequency	150 Hz

Operating Characteristics

Electrical Isolation – Input - PCC	No
Electrical Isolation – Input - Input	No

Mechanical Characteristics

Dimensions

B&R 2003 screw-in module

Accessories

Required accessories (order separately)

7TB712.91	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB712.9	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
