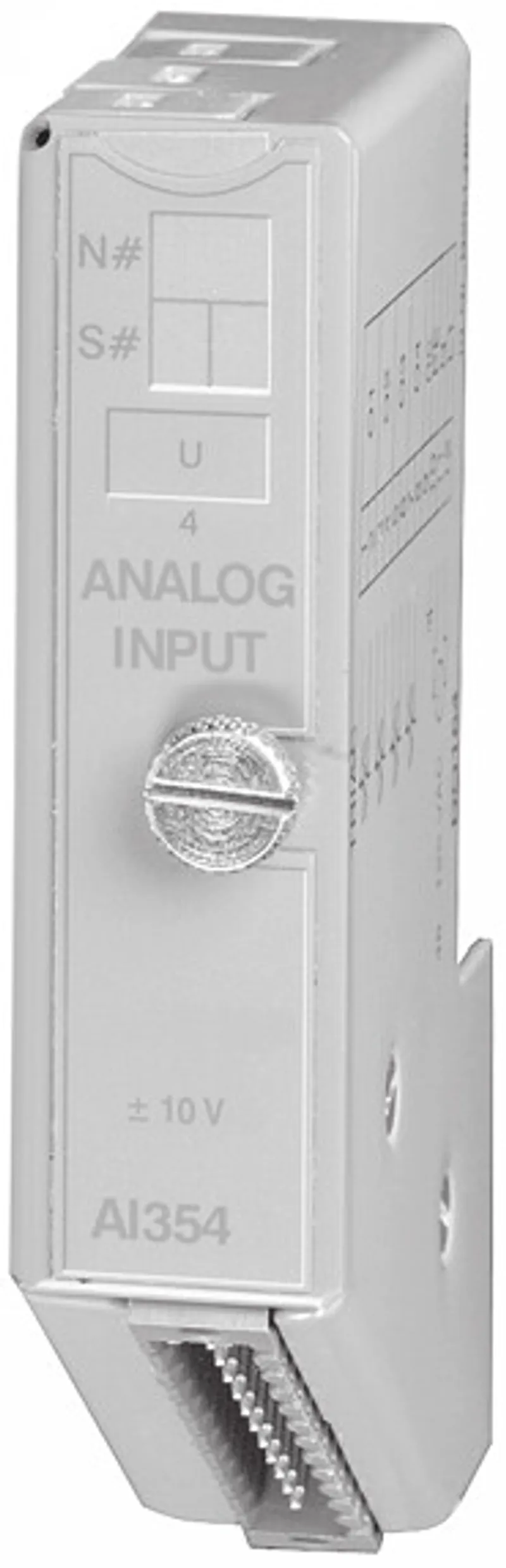

B&R 7AI354.70

2003 analog input module, 4 inputs , ±10 V, 12-bit + sign

MPN: 7AI354.70

€26.50excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7AI354.70?

2003 analog input module, 4 inputs , ±10 V, 12-bit + sign, screw-in module, order 1x terminal block TB712 separately!

Specifications

General Information

Short Description	2003 Analog Input Module, 4 inputs, +/- 10 V, 12 Bit + sign, screw-in module, Order TB712 terminal block separately!
C-UL-US Listed	Yes
B&R ID Code	$04
Slot	AF101 adapter module, CP interface

Static Characteristics

Module Type	B&R 2003 screw-in module
Number of Inputs	4 differential inputs
Input Signal	±10 V
Digital Converter Resolution	12 Bit + sign
Differential Input Resistance	20 MΩ
Measurement Precision at 25 °C – Offset	Max. ±2.5 mV
Measurement Precision at 25 °C – Gain	Max. 0.1 % of final value
Measurement Precision at 25 °C – Linearity Error	Max. 0.1 % of final value
Temperature Drift	±0.02 % / °C ±125 µV / °C
Power Consumption	Max. 0.5 W

Dynamic Characteristics

Input Filter – Cut-off Frequency	225 Hz
Input Filter – Attenuation	60 dB

Operating Characteristics

Electrical Isolation – Input - PCC	No
Electrical Isolation – Input - Input	No

Mechanical Characteristics

Dimensions

B&R 2003 screw-in module

Accessories

Required accessories (order separately)

7TB712.91	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB712.9	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7AI354.70PDF · 312 KB · 1.0 (06/08/2004) - EN
