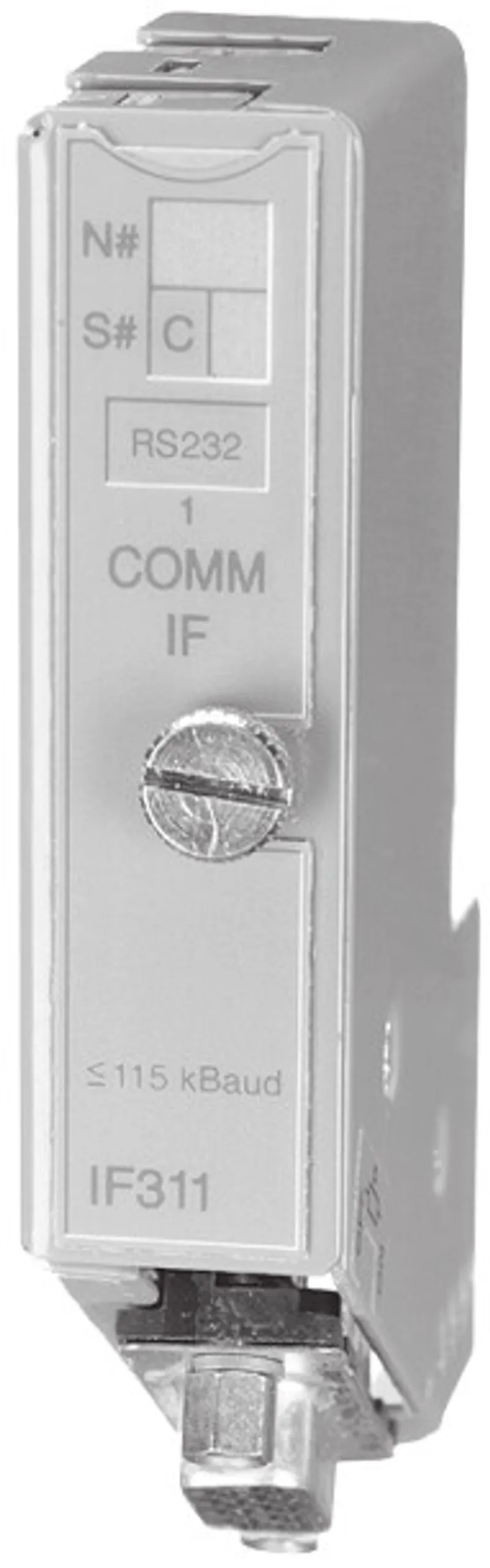

B&R 7IF311.7
2003 interface module, 1 RS232 interface, screw-in module
- MPN
- 7IF311.7
€179.14excl. VAT & shipping
In stock — 2 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 7IF311.7?
2003 interface module, 1 RS232 interface, screw-in module
Specifications
General Information
| Short Description | 2003 interface module, 1 RS232 interface, screw-in module |
| C-UL-US Listed | Yes |
| B&R ID Code | $18 |
| Module Type | B&R 2003 screw-in module |
| Slot | CP Interface, slots 1, 2 and 3 |
| Power Consumption | Max. 0.5 W max. 1.6 W with P120 / P121 |
| Interface Type | RS232 |
| Electrical Isolation – Interface - PCC | No |
| Design | 9 pin D-type plug |
| Handshake Lines | RTS, CTS |
| Baudrate | Max. 115.2 kBaud |
| Distance | 15 m at 19200 Baud |
| Network Capable | No |
| Data Formats – Data Bits | 5 to 8 |
| Data Formats – Parity | yes / no / even / odd |
| Data Formats – Stop Bits | 1/2 |
Mechanical Characteristics
| Dimensions | B&R 2003 screw-in module |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
7IF311.7: frequently asked questions
When can 7IF311.7 be shipped?
7IF311.7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7IF311.7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7IF311.7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7IF311.7, subject to availability and destination.
