Danfoss 16711Y-16-16Z

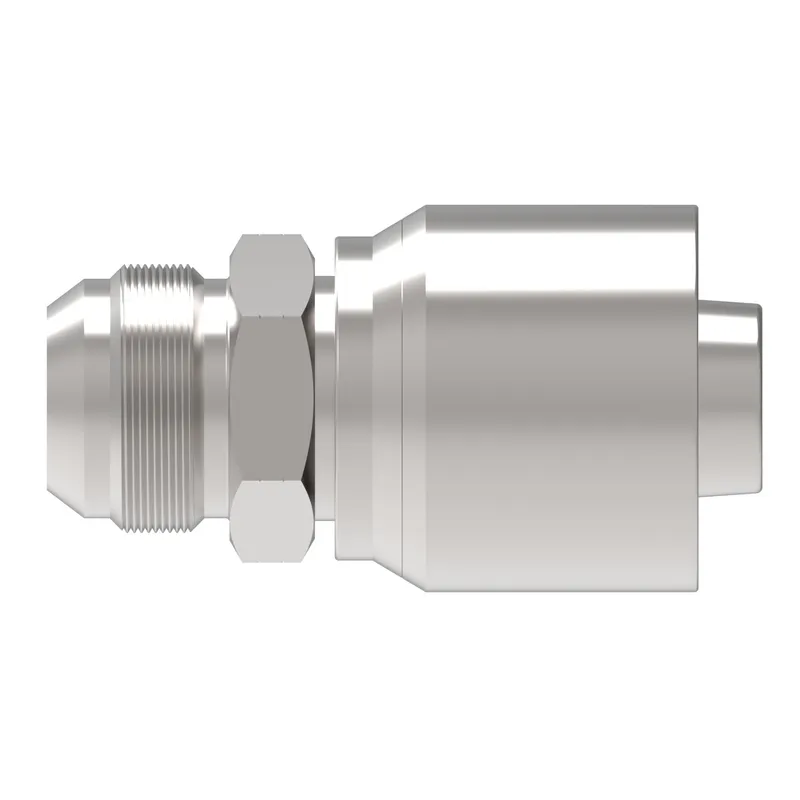

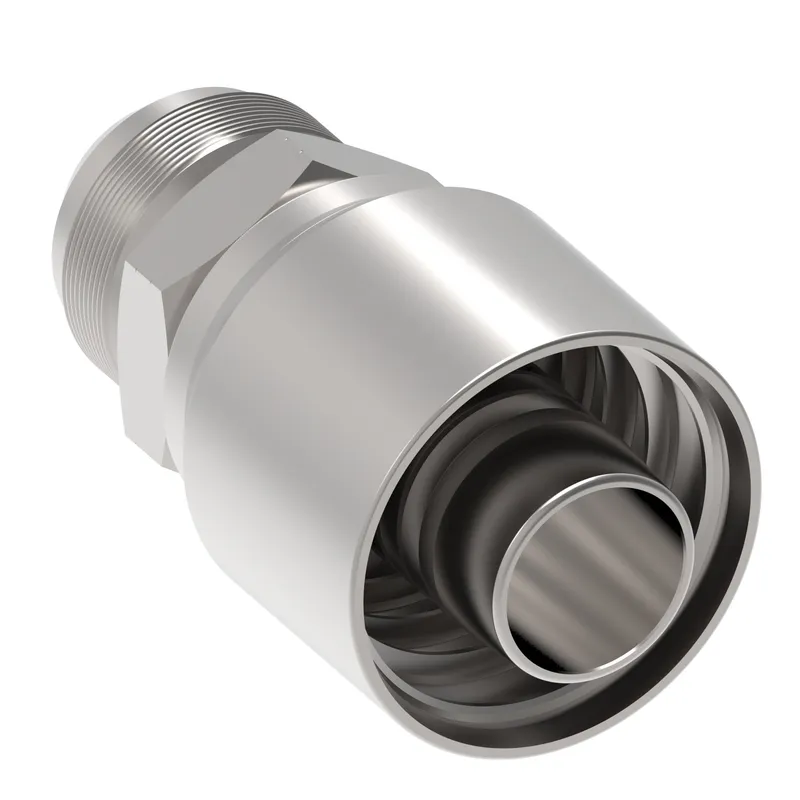

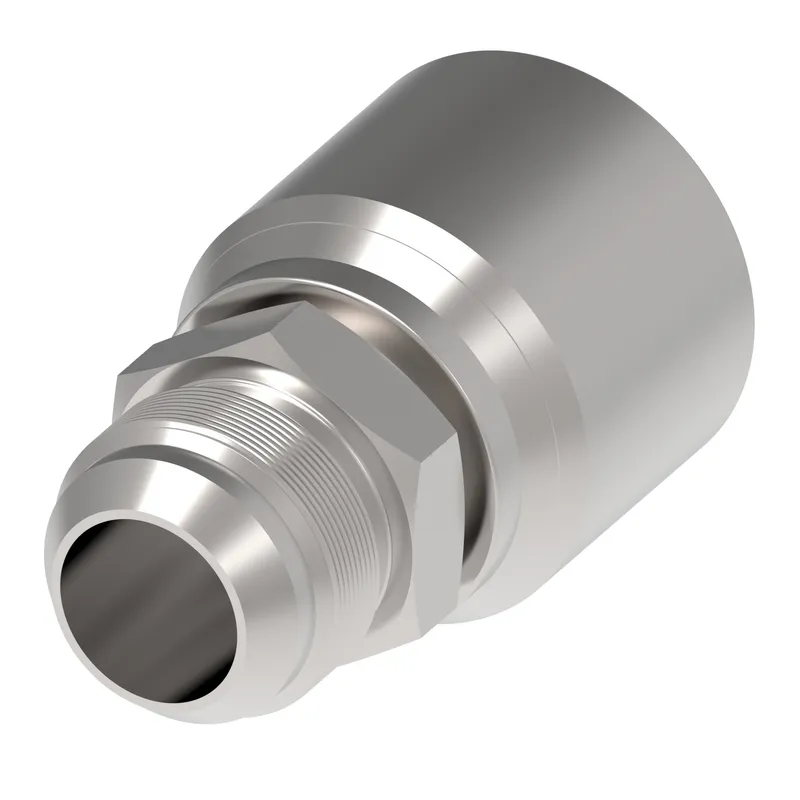

HOSE NIPPLE ASSY,1P/16,JIC-M/16,CS,STR

MPN
16711Y-16-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711Y-16-16Z?

Danfoss HOSE NIPPLE ASSY,1P/16,JIC-M/16,CS,STR, manufacturer part number 16711Y-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.562
A dimension MM90.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
End connection torque108-113 lb-ft(148-154 Nm)
End size 1-16
End Type 1Male 37 degree
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.420
Hex size 1 MM36.068
Hose cut off factor IN1.712
Hose cut off factor MM43.500
Hose size-16
Inside diameter IN0.826
Inside diameter MM21.000
Product height in1.830
Product height mm46.482
Product length in3.562
Product length mm90.474
Product materialCarbon steel
Product width in1.830
Product width mm46.482
Thread sealantNo
Thread size 11 5/16-12 UN

16711Y-16-16Z: frequently asked questions

When can 16711Y-16-16Z be shipped?

16711Y-16-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 16711Y-16-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 16711Y-16-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16711Y-16-16Z, subject to availability and destination.
