Danfoss 185264-10-8S

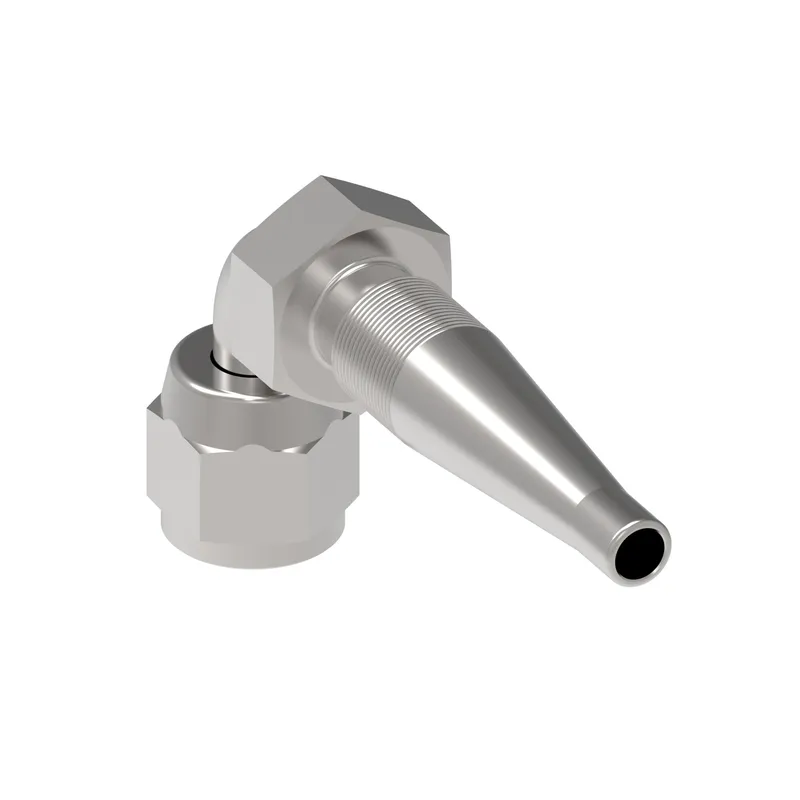

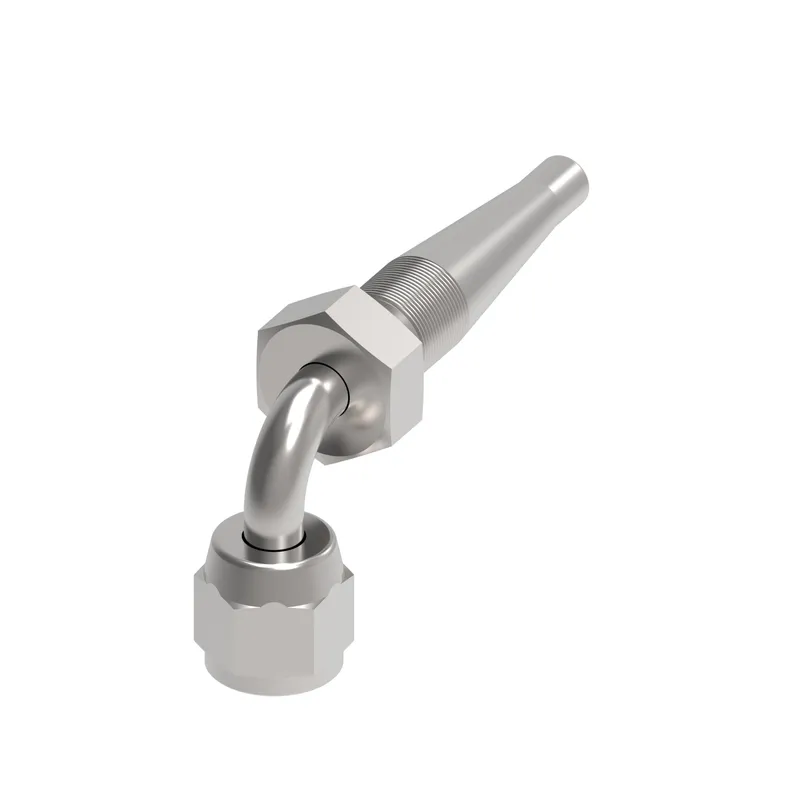

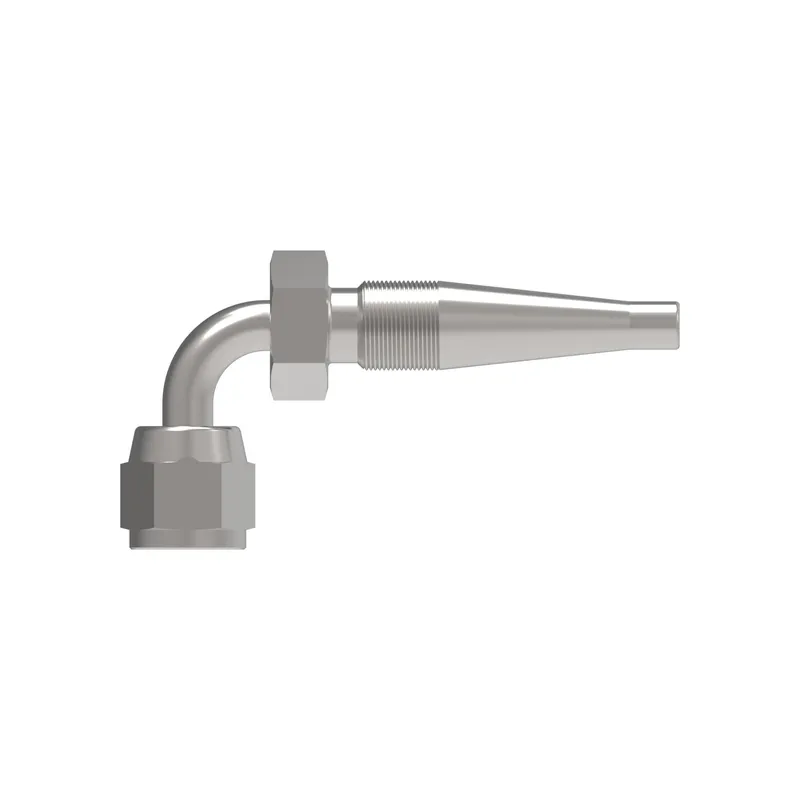

HOSE INSERT ASSY,2R/08,JIC-F/10,CS,90D

MPN: 185264-10-8S
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 185264-10-8S?

Danfoss HOSE INSERT ASSY,2R/08,JIC-F/10,CS,90D, manufacturer part number 185264-10-8S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.190
A dimension MM	81.020
Angle shape	90 Degree
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	1509
Construction Style	Reusable
Drop dimension IN	1.230
Drop dimension MM	31.24
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End size 2	-6
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hex size 2 IN	1.000
Hex size 2 MM	19.050
Hose cut off factor IN	0.660
Hose cut off factor MM	16.764
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	9.906
Product height in	1.610
Product height mm	40.894
Product length in	3.690
Product length mm	93.726
Product material	Carbon steel
Product width in	1.000
Product width mm	25.4
Thread sealant	No
Thread size 1	7/8-14 UNF
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
