Danfoss 16711Y-08-08CNZ

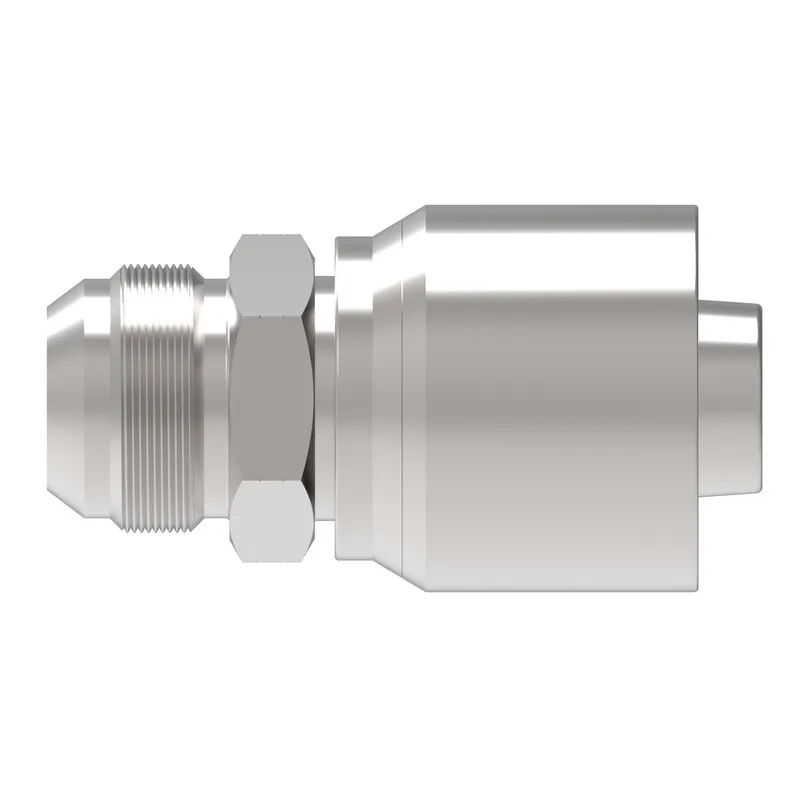

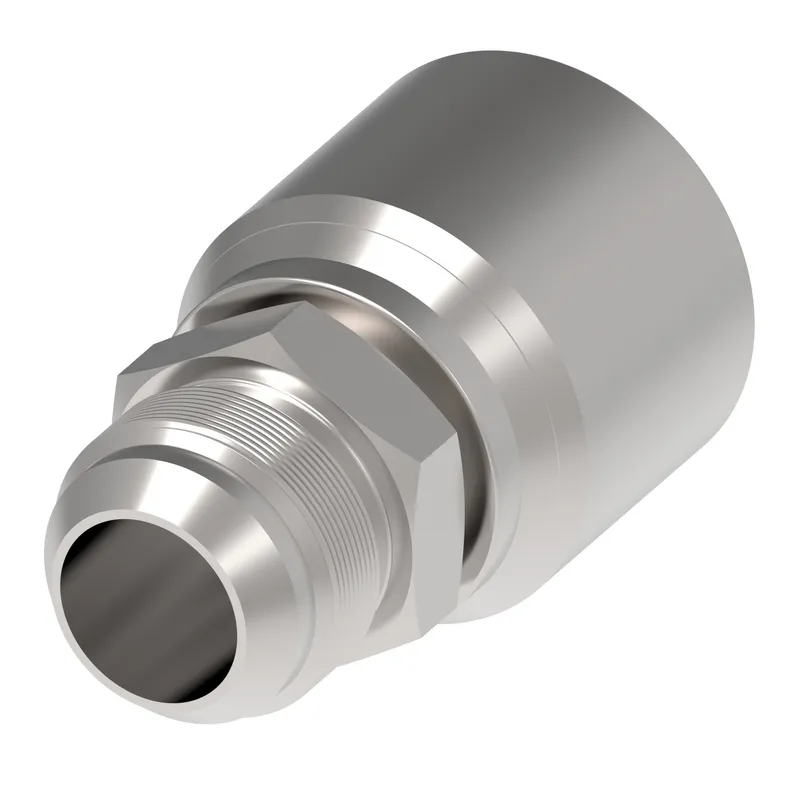

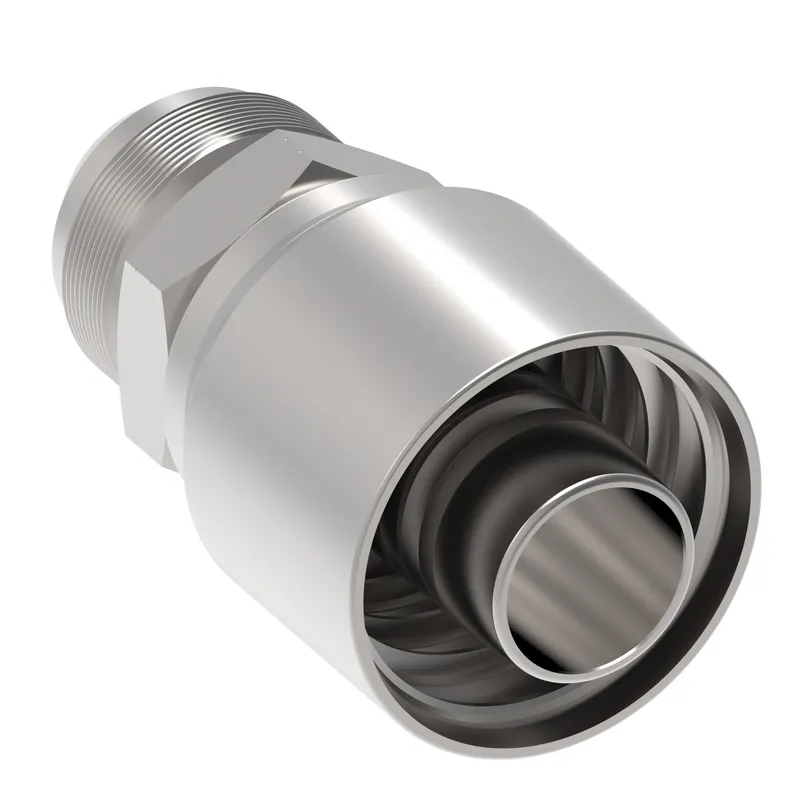

HOSE NIPPLE ASSY,1P/08,JIC-M/08,CS,STR

MPN
16711Y-08-08CNZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711Y-08-08CNZ?

Danfoss HOSE NIPPLE ASSY,1P/08,JIC-M/08,CS,STR, manufacturer part number 16711Y-08-08CNZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.500
A dimension MM63.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End connection torque38-42 lb-ft(52-58 Nm)
End size 1-8
End Type 1Male 37 degree
Finish platingZinc plating
Hex size 1 IN0.870
Hex size 1 MM22.098
Hose cut off factor IN1.259
Hose cut off factor MM32.000
Hose size-8
Inside diameter IN0.390
Inside diameter MM9.900
Product height in1.140
Product height mm28.956
Product length in2.500
Product length mm63.500
Product materialCarbon steel
Product width in1.140
Product width mm28.956
Thread sealantNo
Thread size 13/4-16 UNF
