Danfoss 185264-6S

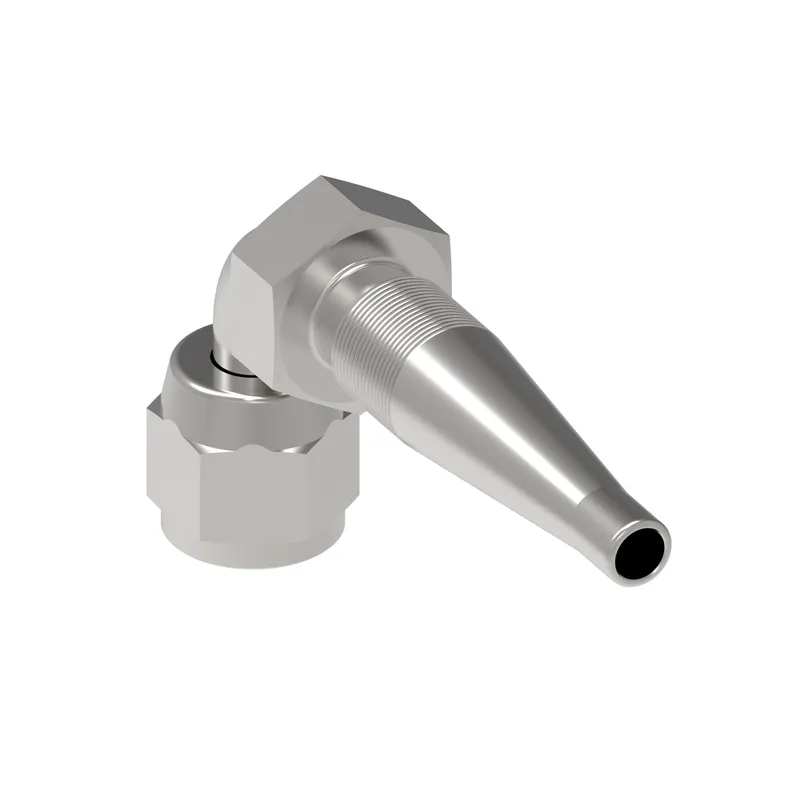

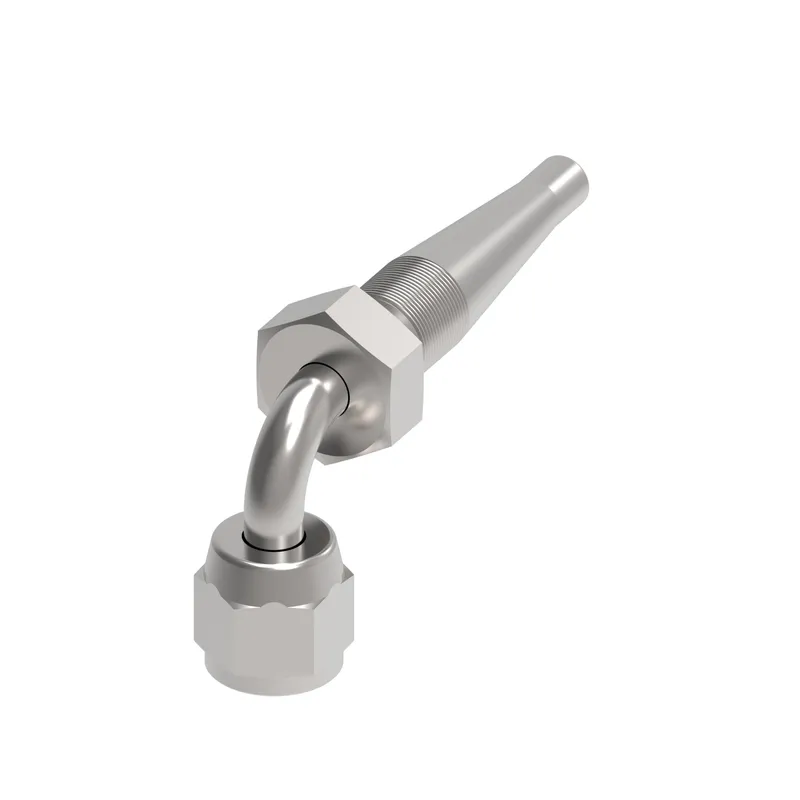

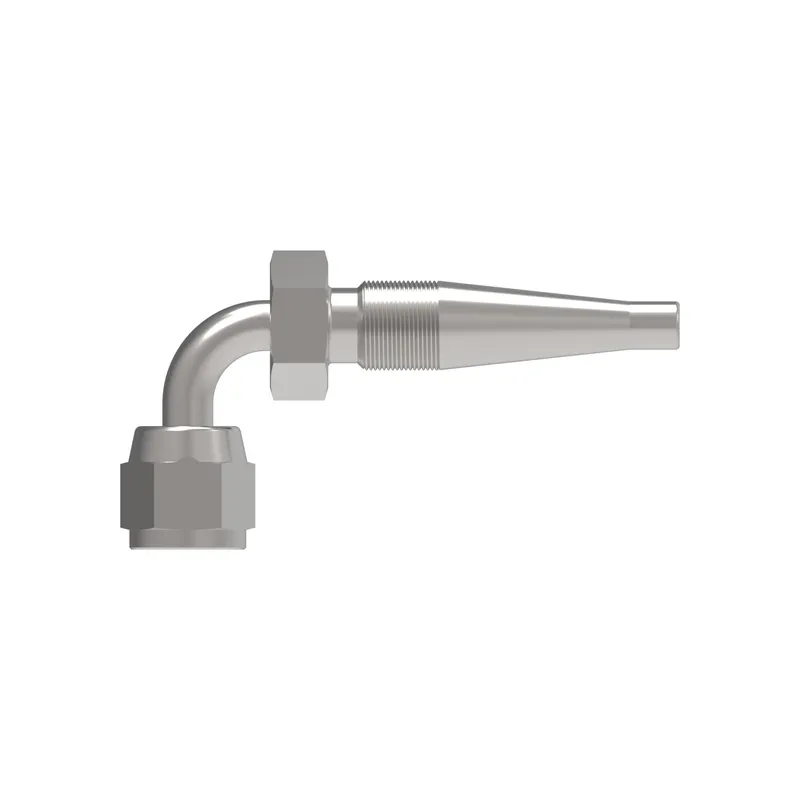

HOSE INSERT ASSY,2R/06,JIC-F/06,CS,90D

MPN: 185264-6S
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 185264-6S?

Danfoss HOSE INSERT ASSY,2R/06,JIC-F/06,CS,90D, manufacturer part number 185264-6S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.710
A dimension MM	68.830
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	1509
Construction Style	Reusable
Drop dimension IN	0.850
Drop dimension MM	21.59
End connection torque	18-20 lb-ft(24-28 Nm)
End size 1	-6
End size 2	-6
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.620
Hex size 1 MM	15.748
Hex size 2 IN	0.690
Hex size 2 MM	15.870
Hose cut off factor IN	0.780
Hose cut off factor MM	19.812
Hose size	-6
Inside diameter IN	0.310
Inside diameter MM	7.874
Product height in	1.160
Product height mm	29.464
Product length in	3.050
Product length mm	77.470
Product material	Carbon steel
Product width in	0.690
Product width mm	17.526
Thread sealant	No
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
