Danfoss 16711Y-12-12CNZ

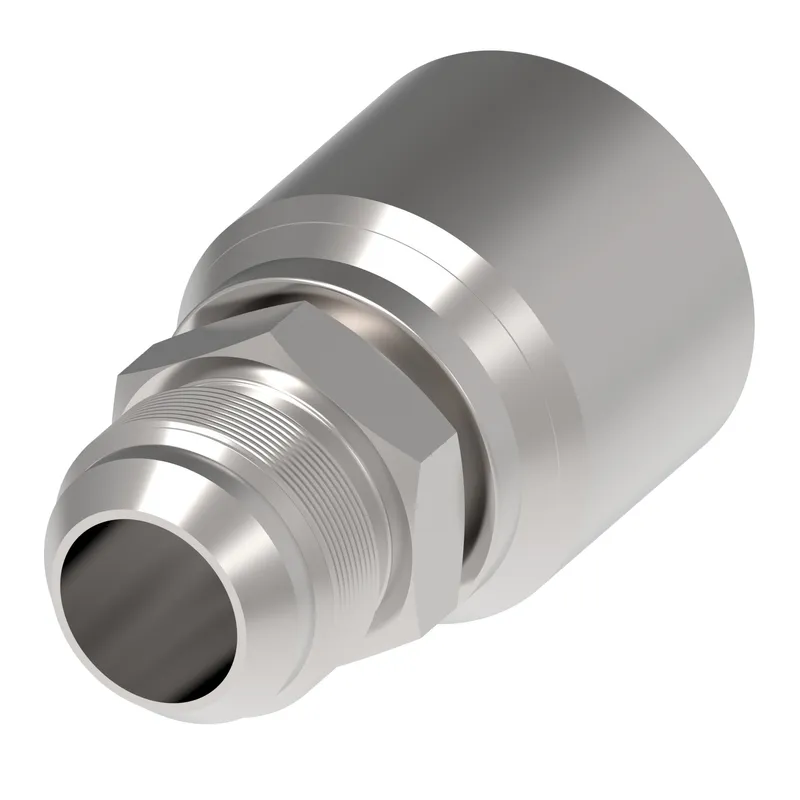

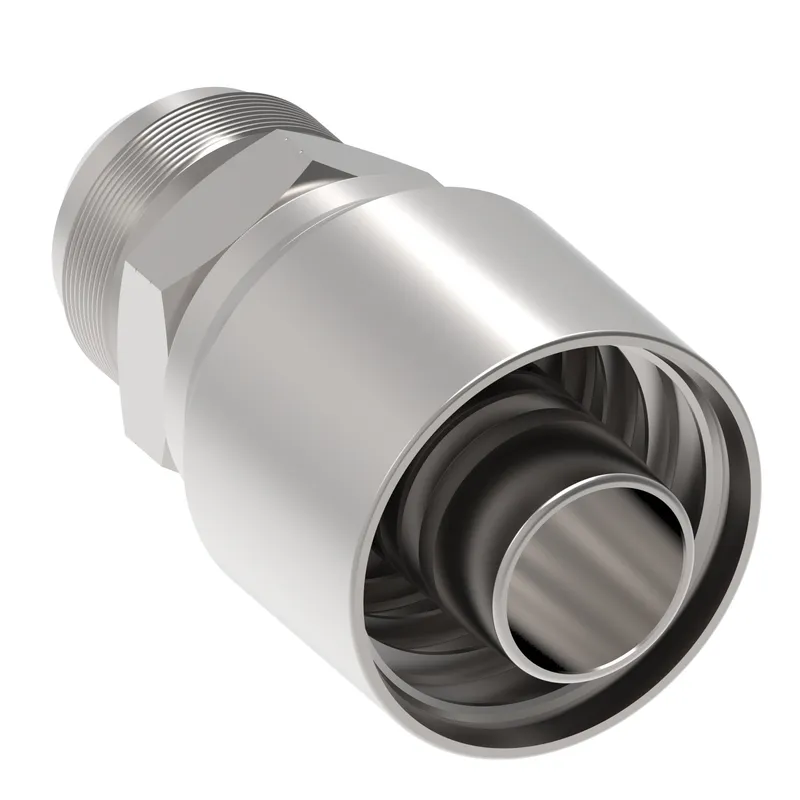

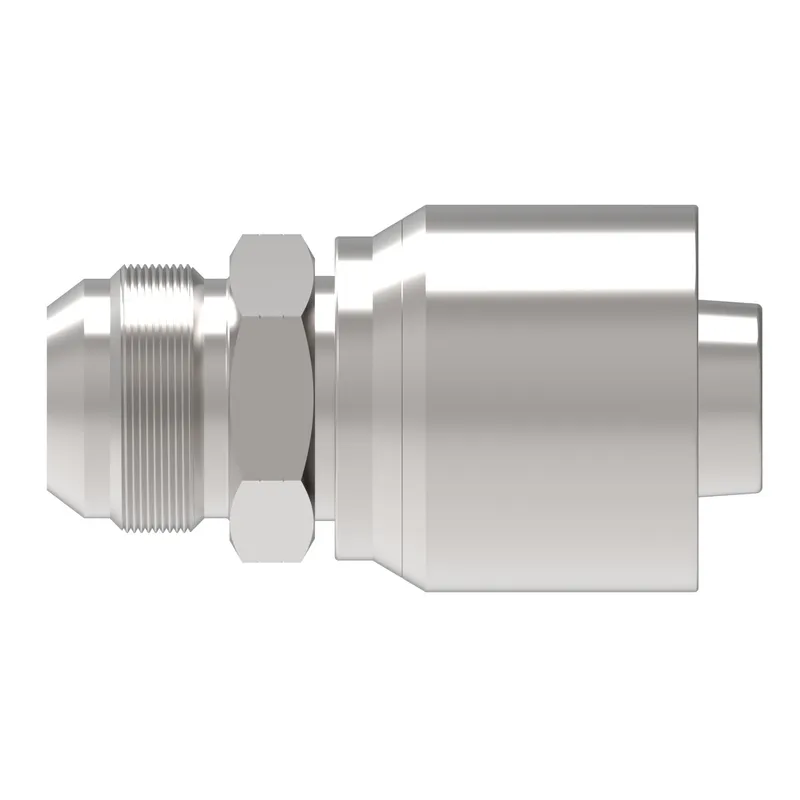

HOSE NIPPLE ASSY,1P/12,JIC-M/12,CS,STR

MPN
16711Y-12-12CNZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711Y-12-12CNZ?

Danfoss HOSE NIPPLE ASSY,1P/12,JIC-M/12,CS,STR, manufacturer part number 16711Y-12-12CNZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.090
A dimension MM78.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
End connection torque79-87 lb-ft(108-119 Nm)
End size 1-12
End Type 1Male 37 degree
Finish platingZinc plating
Hex size 1 IN1.180
Hex size 1 MM29.972
Hose cut off factor IN1.574
Hose cut off factor MM40.000
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.450
Product height mm36.830
Product length in3.090
Product length mm78.486
Product materialCarbon steel
Product width in1.450
Product width mm36.83
Thread sealantNo
Thread size 11 1/16-12 UN

16711Y-12-12CNZ: frequently asked questions

When can 16711Y-12-12CNZ be shipped?

16711Y-12-12CNZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 16711Y-12-12CNZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 16711Y-12-12CNZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16711Y-12-12CNZ, subject to availability and destination.
