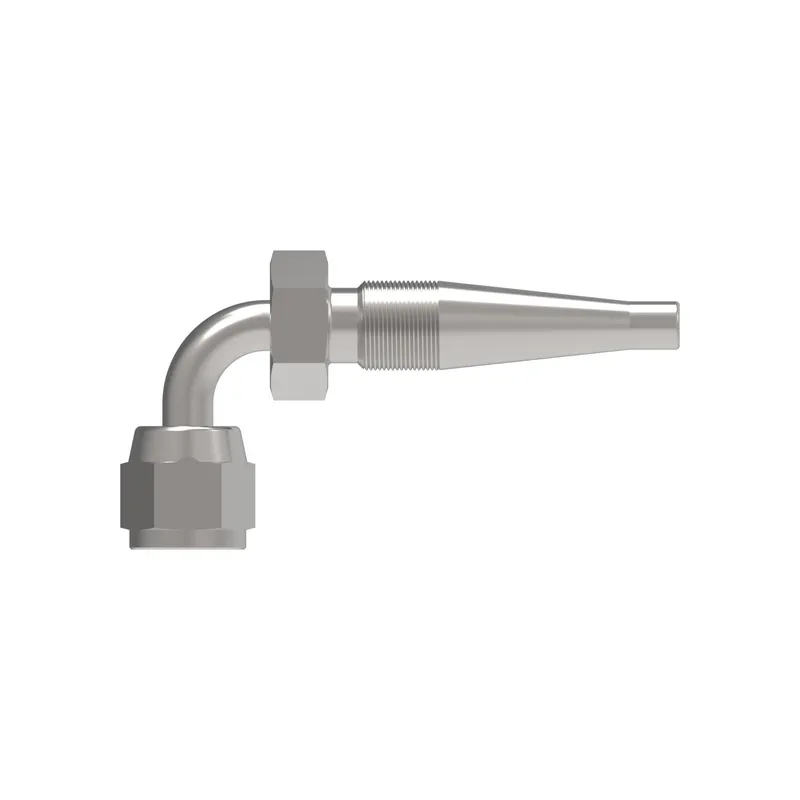

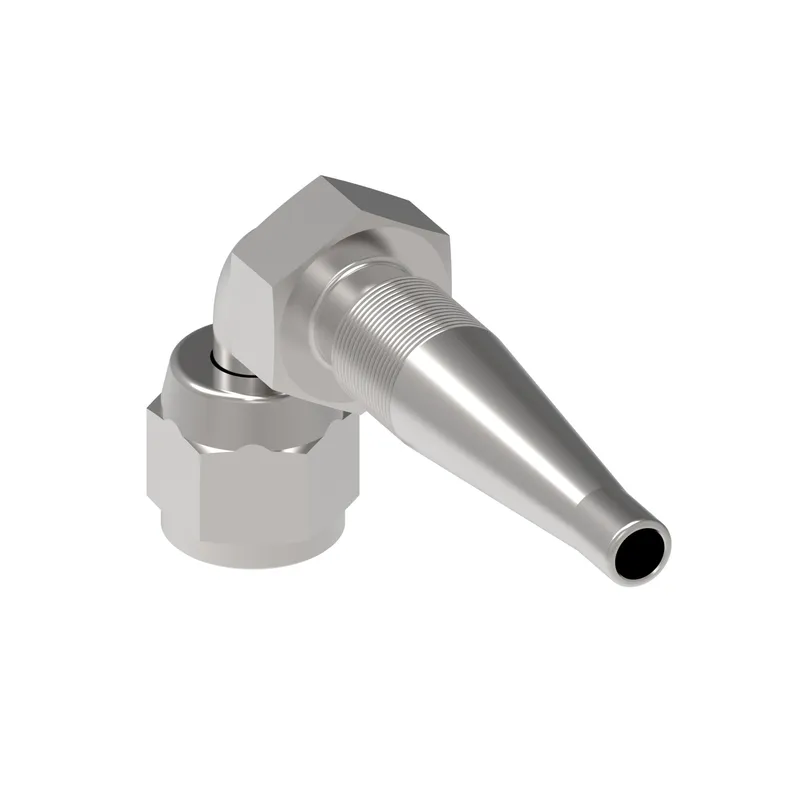

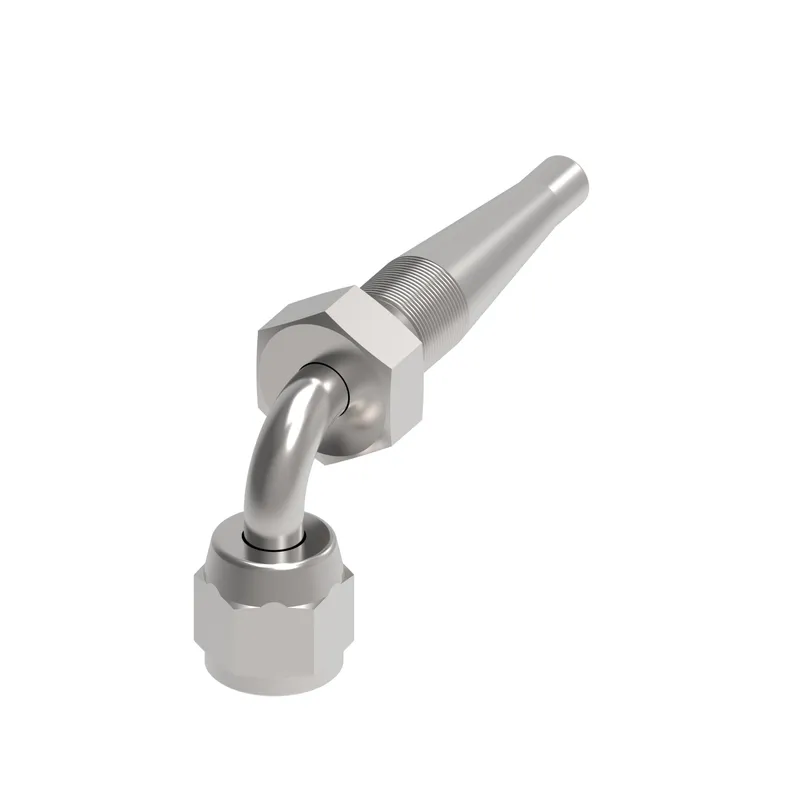

HOSE INSERT ASSY,2R/04,JIC-F/04,CS,90D

Name: HOSE INSERT ASSY,2R/04,JIC-F/04,CS,90D
Brand: Danfoss (Drives)
SKU: 185264-4S

MPN: 185264-4S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 185264-4S be shipped?

185264-4S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 185264-4S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 185264-4S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 185264-4S, subject to availability and destination.

Danfoss HOSE INSERT ASSY,2R/04,JIC-F/04,CS,90D, manufacturer part number 185264-4S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.350
A dimension MM	59.690
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	1509
Construction Style	Reusable
Drop dimension IN	0.680
Drop dimension MM	17.27
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-4
End size 2	-4
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Hex size 2 IN	0.560
Hex size 2 MM	17.460
Hose cut off factor IN	0.660
Hose cut off factor MM	16.764
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.318
Product height in	1.030
Product height mm	26.162
Product length in	2.630
Product length mm	66.802
Product material	Carbon steel
Product width in	0.690
Product width mm	17.526
Thread sealant	No
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
