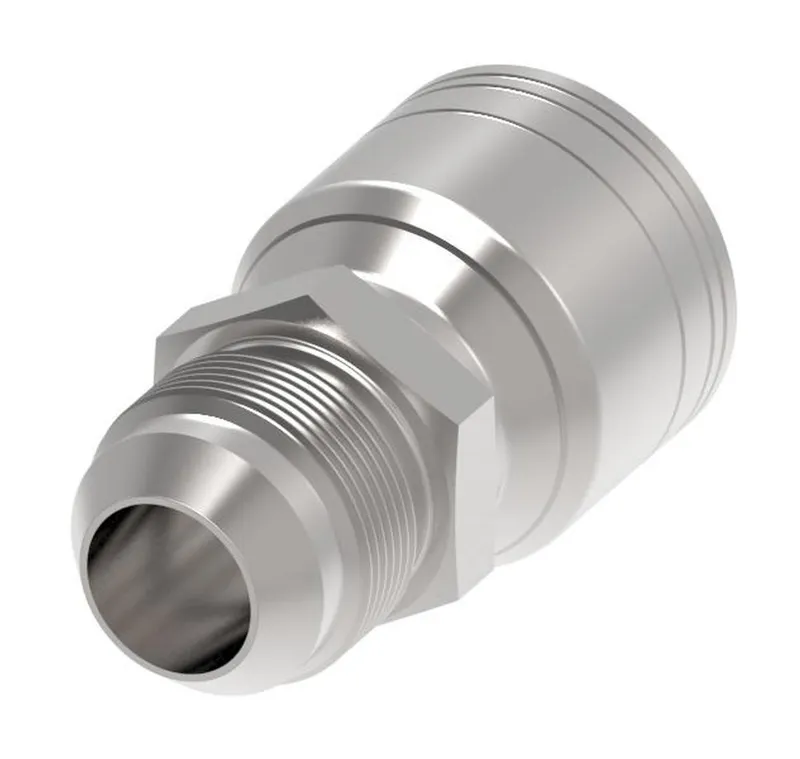

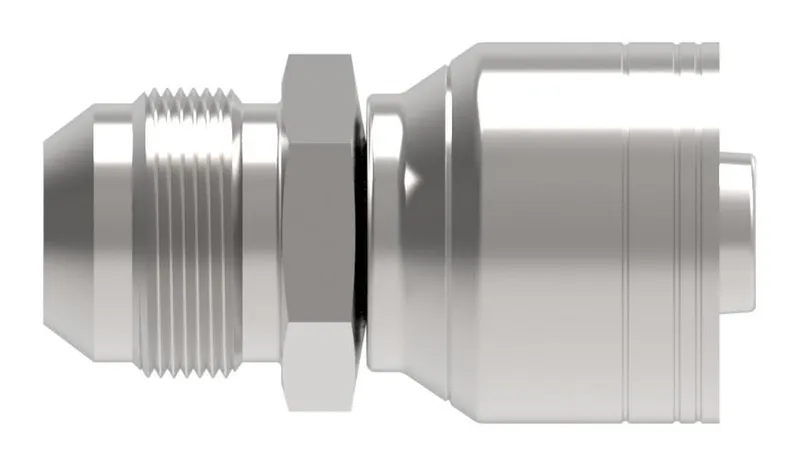

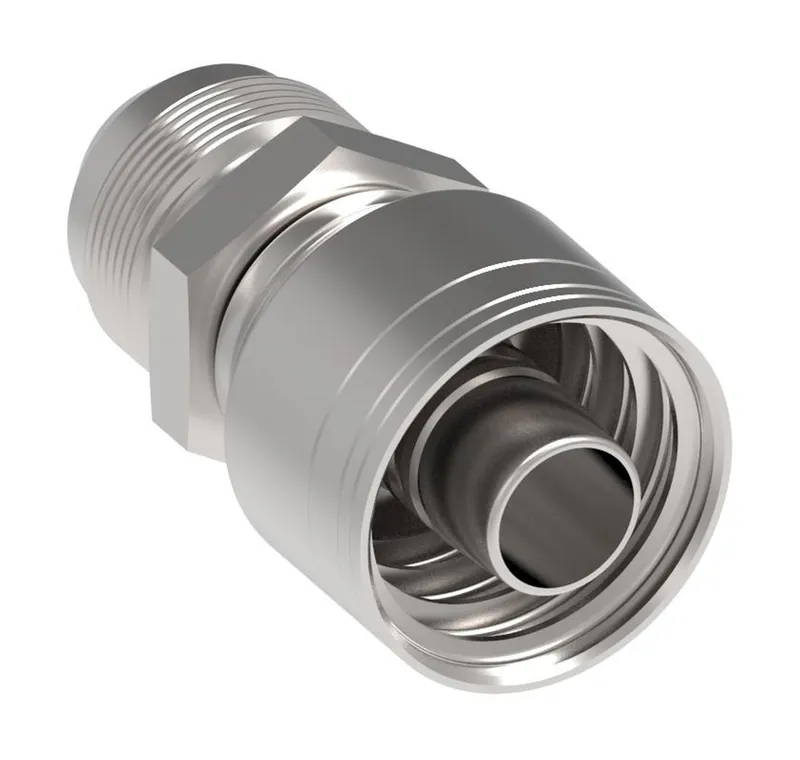

Danfoss 1A10MJ8

HOSE FTG, 1A/08, JIC-M/10, CS, STR

MPN: 1A10MJ8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10MJ8?

Danfoss HOSE FTG, 1A/08, JIC-M/10, CS, STR, manufacturer part number 1A10MJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.260
A dimension MM	57.400
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.945
Hex size 1 MM	24.000
Hex size 2 MM	24.000
Hose cut off factor IN	1.260
Hose cut off factor MM	31.900
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.220
Product height mm	31.000
Product length in	2.425
Product length mm	61.600
Product material	Carbon steel
Product width in	1.220
Product width mm	31
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	379
Working pressure max PSI	5500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
