Danfoss 1A12BP12AH

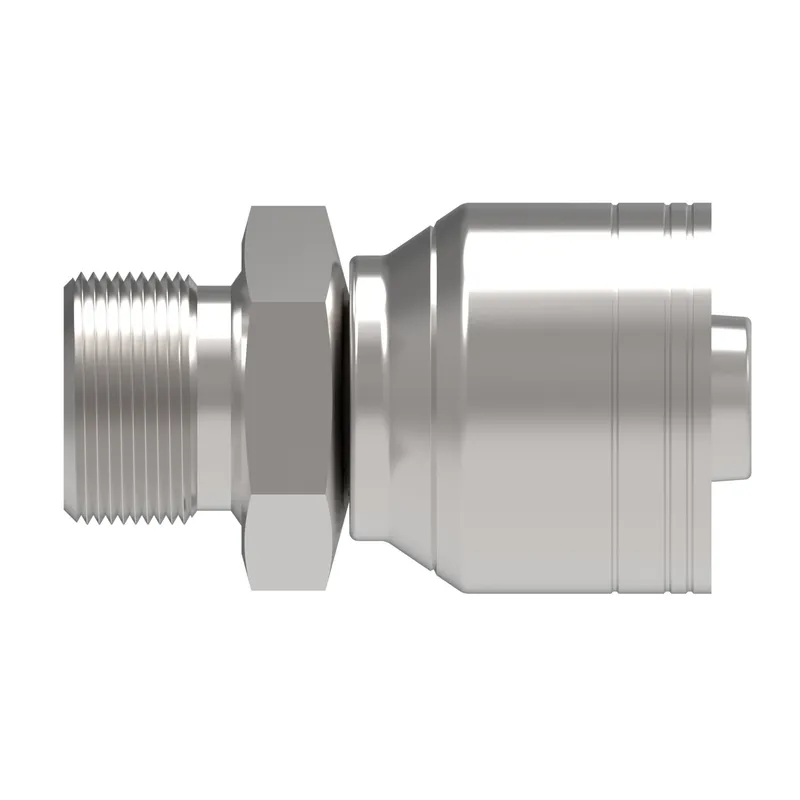

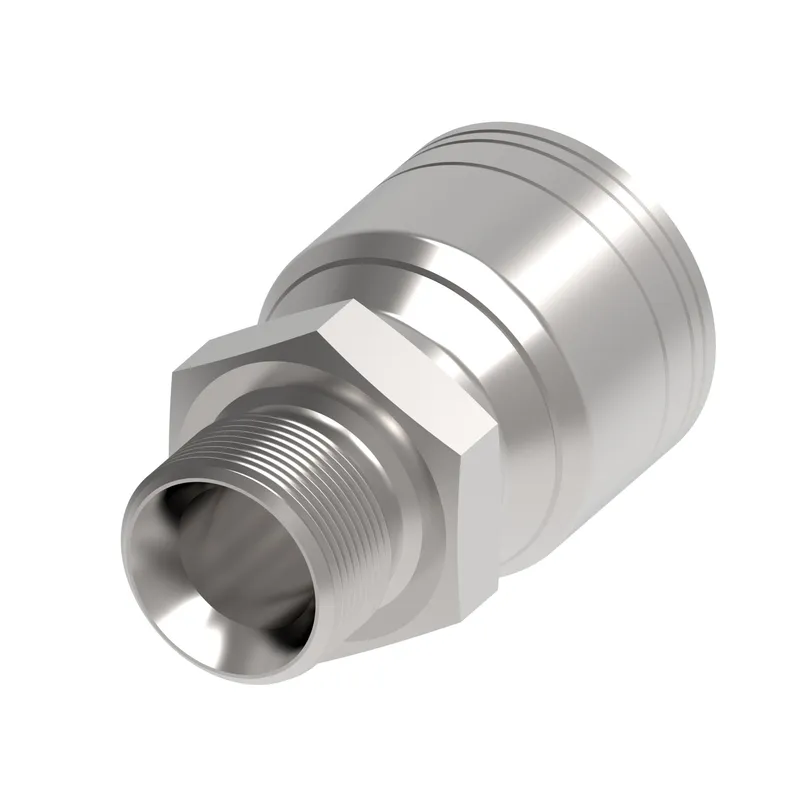

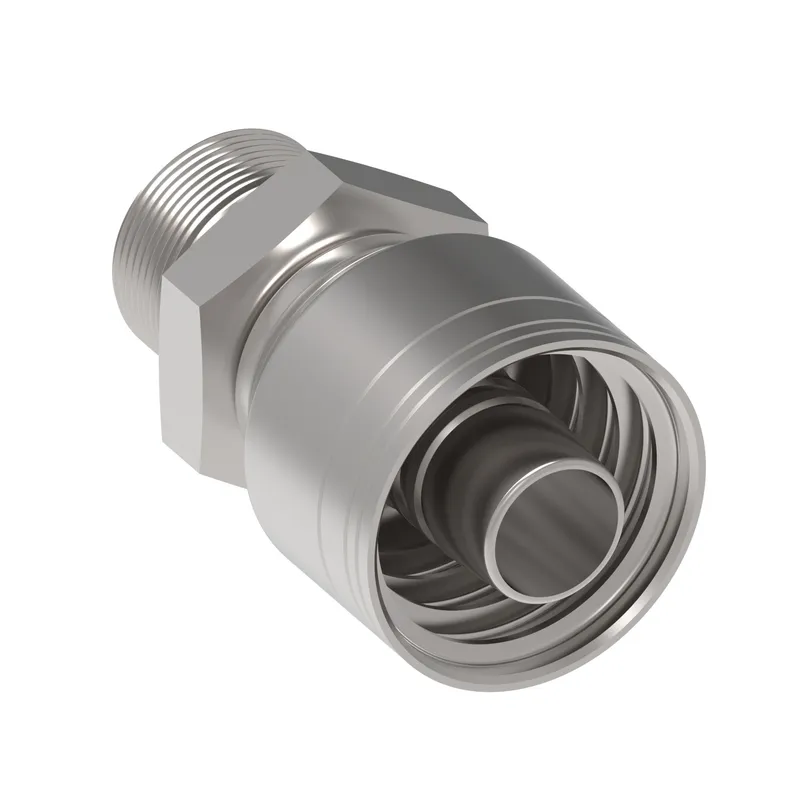

HOSE FTG, 1A/12, BSPJ/12, CS, STR

MPN: 1A12BP12AH
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A12BP12AH?

Danfoss HOSE FTG, 1A/12, BSPJ/12, CS, STR, manufacturer part number 1A12BP12AH. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.480
A dimension MM	63.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 1	-12
End Type 1	Male BSPP 60 degree cone
Finish plating	Zinc nickel
Hex size 1 IN	1.260
Hex size 1 MM	32.000
Hex size 2 MM	32.000
Hose cut off factor IN	1.300
Hose cut off factor MM	32.900
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.563
Product height mm	39.700
Product length in	2.484
Product length mm	63.100
Product material	Carbon steel
Product width in	1.563
Product width mm	39.7
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
