Danfoss 1A12BT10

HOSE FTG, 1A/10, BSPT-M/12, CS, STR

MPN: 1A12BT10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

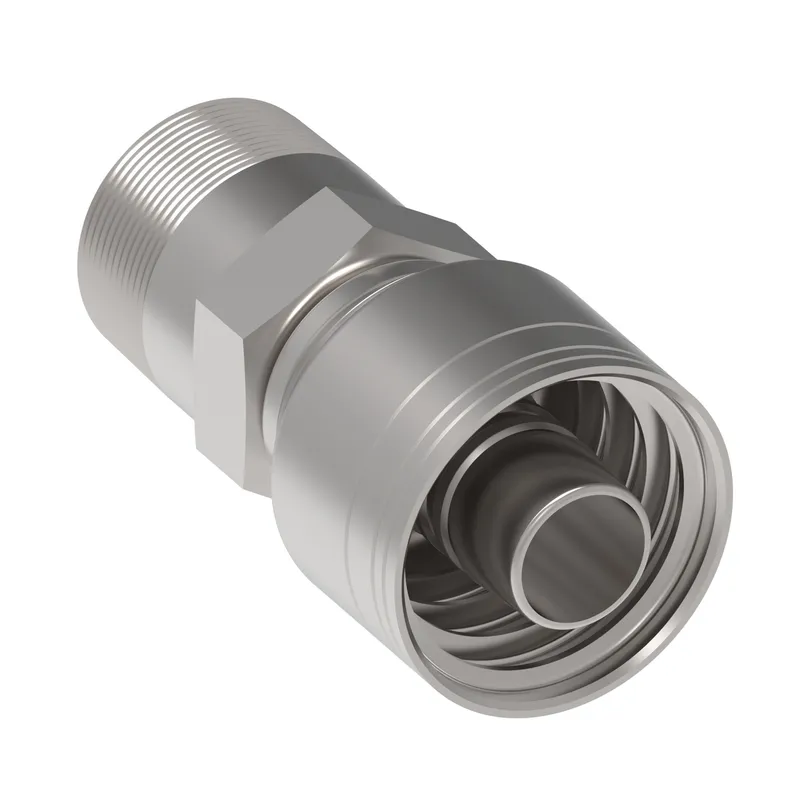

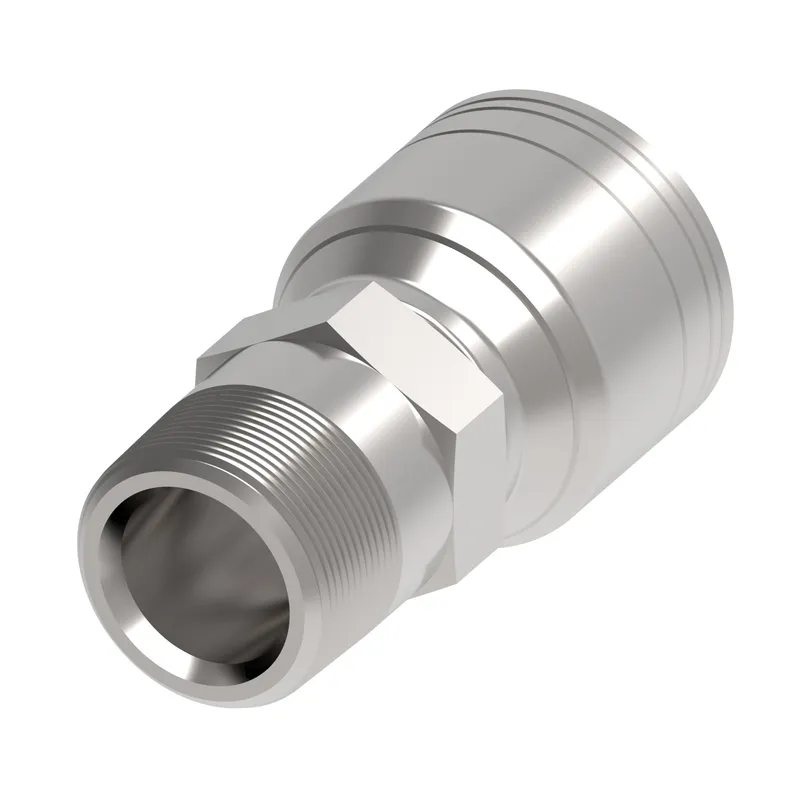

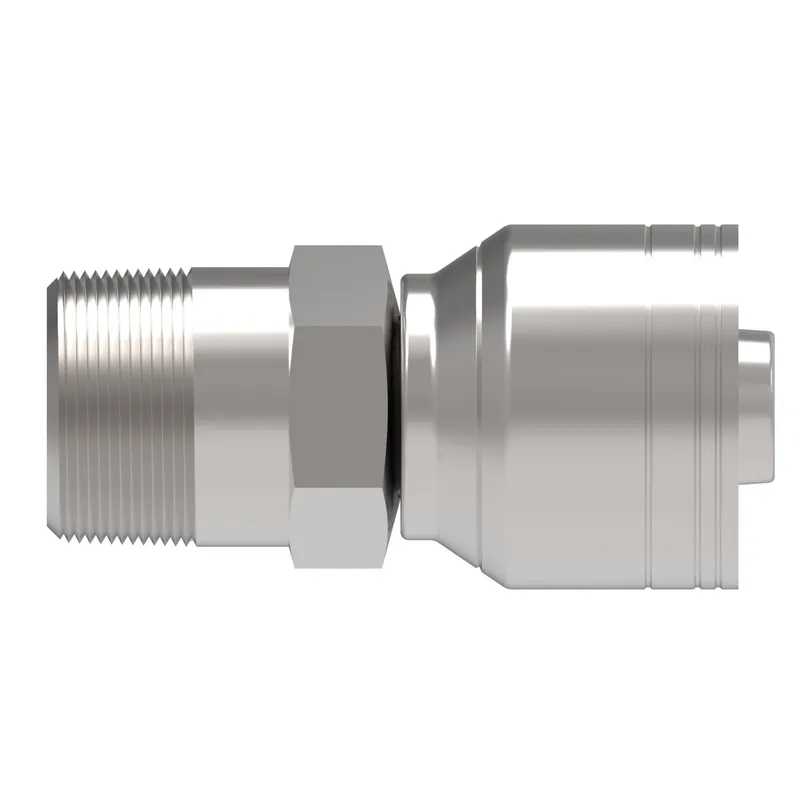

What is the Danfoss 1A12BT10?

Danfoss HOSE FTG, 1A/10, BSPT-M/12, CS, STR, manufacturer part number 1A12BT10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.760
A dimension MM	70.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End size 1	-12
End Type 1	Male pipe BSPT
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 MM	27.000
Hose cut off factor IN	1.610
Hose cut off factor MM	40.800
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.386
Product height mm	35.200
Product length in	2.764
Product length mm	70.200
Product material	Carbon steel
Product width in	1.386
Product width mm	35.2
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	Yes
Thread size 1	R 3/4
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1A12BT10: frequently asked questions

When can 1A12BT10 be shipped?

1A12BT10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A12BT10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A12BT10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A12BT10, subject to availability and destination.
