Braided hose and fittings Parts

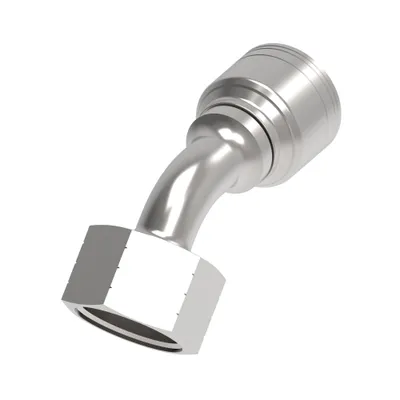

Danfoss

1A12FRA8

HOSE FTG, 1A/08, ORS-F/12, CS, 45D

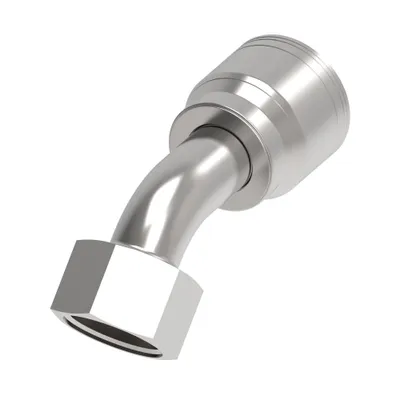

Danfoss

1A12FRA12

HOSE FTG, 1A/12, ORS-F/12, CS, 45D

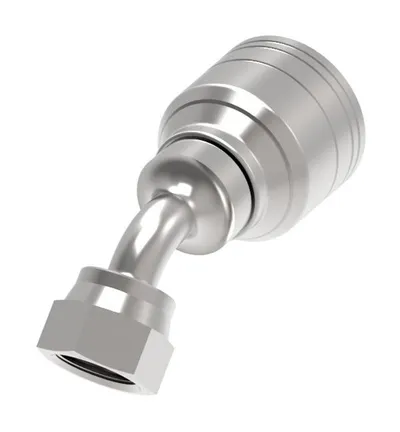

Danfoss

1A12FRA10

HOSE FTG, 1A/10, ORS-F/12, CS, 45D

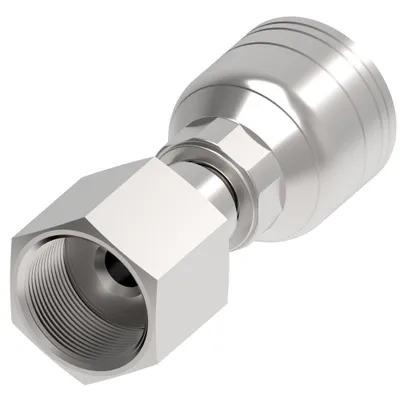

Danfoss

1A12FR8

HOSE FTG, 1A/08, ORS-F/12, CS, STR

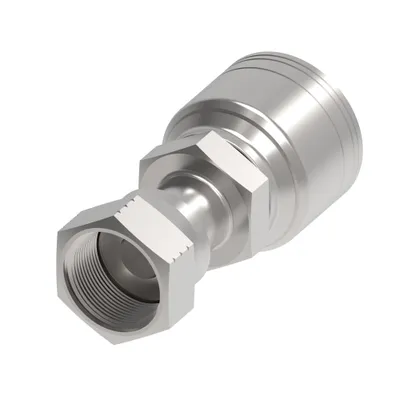

Danfoss

1A12FR16

HOSE FTG, 1A/16, ORS-F/12, CS, STR

Danfoss

1A12FR12

HOSE FTG, 1A/12, ORS-F/12, CS, STR

Danfoss

1A12FR10

HOSE FTG, 1A/10, ORS-F/12, CS, STR

Danfoss

1A12FLB8

HOSE FTG, 1A/08, C61/12, CS, 90D

Danfoss

1A12FLB16

HOSE FTG, 1A/16, C61/12, CS, 90D

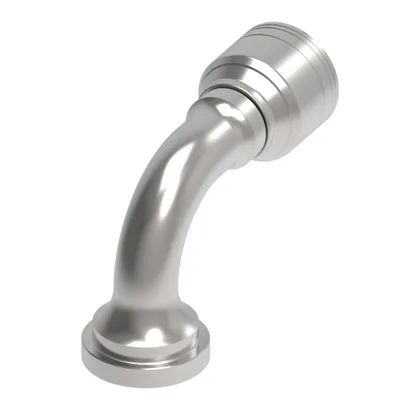

Danfoss

1A12FLB12

HOSE FTG, 1A/12, C61/12, CS, 90D

Danfoss

1A12FLB10

HOSE FTG, 1A/10, C61/12, CS, 90D

Danfoss

1A12FLA8

HOSE FTG, 1A/08, C61/12, CS, 45D

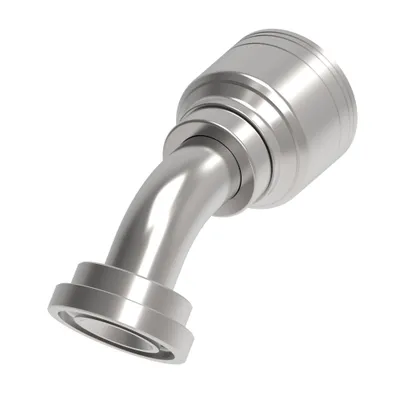

Danfoss

1A12FLA12

HOSE FTG, 1A/12, C61/12, CS, 45D

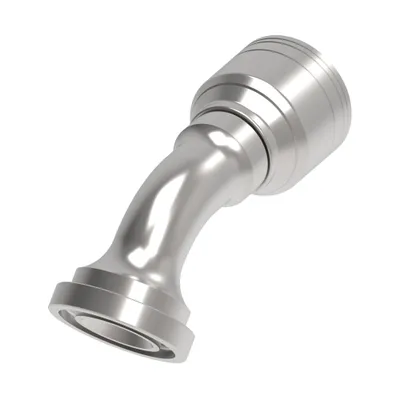

Danfoss

1A12FLA10

HOSE FTG, 1A/10, C61/12, CS, 45D

Danfoss

1A12FL8

HOSE FTG, 1A/08, C61/12, CS, STR

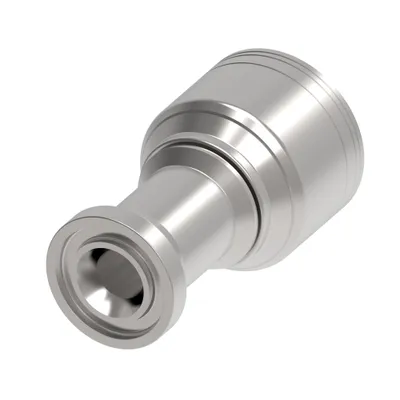

Danfoss

1A12FL16

HOSE FTG, 1A/16, C61/12, CS, STR

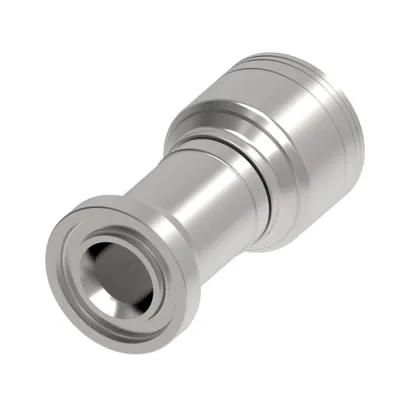

Danfoss

1A12FL12

HOSE FTG, 1A/12, C61/12, CS, STR

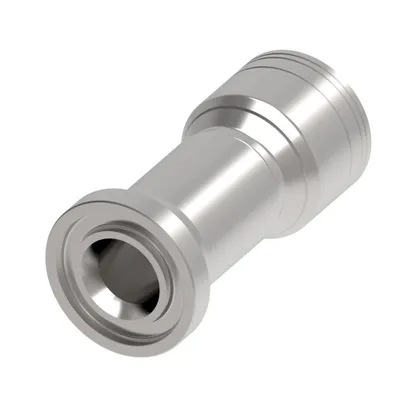

Danfoss

1A12FL10

HOSE FTG, 1A/10, C61/12, CS, STR

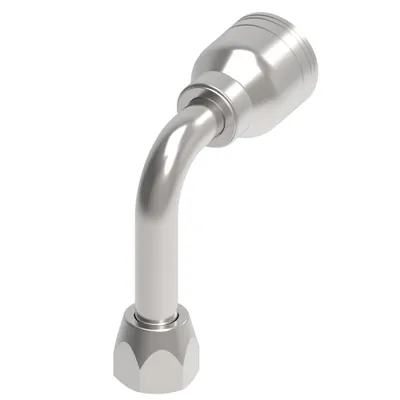

Danfoss

1A12FJC12

HOSE FTG, 1A/12, JIC-F/12, CS, 90D

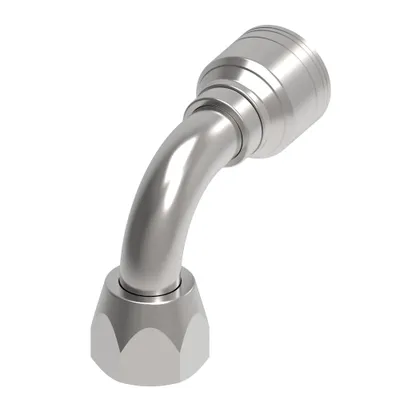

Danfoss

1A12FJB16.051

HOSE FTG, 1A/16, JIC-F/12, CS, 90D

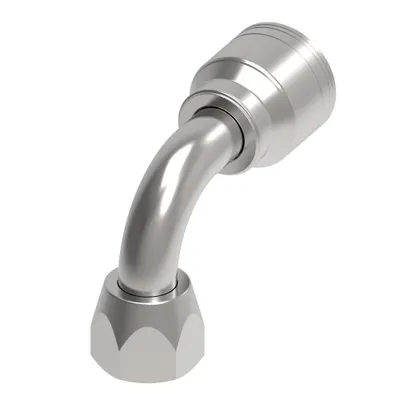

Danfoss

1A12FJB12

HOSE FTG, 1A/12, JIC-F/12, CS, 90D

Danfoss

1A12FJB10

HOSE FTG, 1A/10, JIC-F/12, CS, 90D

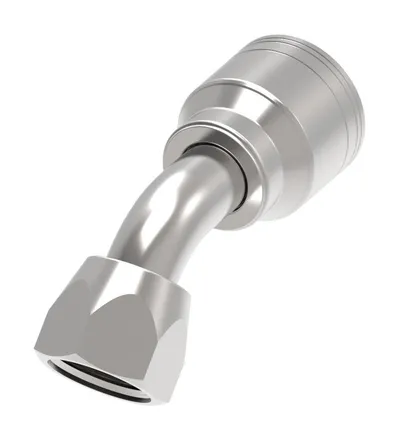

Danfoss

1A12FJA12

HOSE FTG, 1A/12, JIC-F/12, CS, 45D

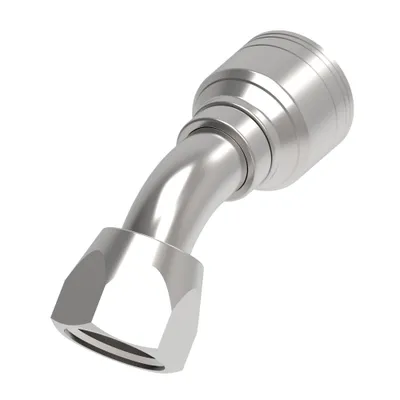

Danfoss

1A12FJA10

HOSE FTG, 1A/10, JIC-F/12, CS, 45D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	Hose cut off factor MM	Product height in	Product height mm	Product length in
1A12FRA8	3.020	51.562	2.710	68.834	4.300
1A12FRA12	3.630	60.400	2.878	73.100	4.846
1A12FRA10	3.390	59.944	2.790	70.866	4.600
1A12FR8	2.670	41.300	1.420	36.068	3.360
1A12FR16	3.190	47.300	1.940	49.300	3.190
1A12FR12	2.800	43.700	1.636	41.560	3.480
1A12FR10	2.640	41.500	1.630	41.402	3.360
1A12FLB8	3.283	57.900	2.740	69.596	4.190
1A12FLB16	3.660	59.100	3.100	78.740	4.550
1A12FLB12	3.370	58.500	2.910	73.914	4.120
1A12FLB10	3.310	58.100	2.820	71.628	4.190
1A12FLA8	3.480	62.800	2.360	59.944	4.380
1A12FLA12	3.540	62.900	2.530	64.262	4.410
1A12FLA10	3.560	64.200	3.350	85.090	5.340
1A12FL8	3.100	53.300	1.500	38.100	3.270
1A12FL16	3.470	54.400	1.941	49.300	3.494
1A12FL12	3.180	53.800	1.560	39.624	3.310
1A12FL10	3.130	53.300	1.500	38.100	3.260
1A12FJC12	3.420	55.200	5.081	129.286	3.840
1A12FJB16.051	3.290	49.100	3.360	85.344	3.920
1A12FJB12	3.420	55.200	3.180	80.772	3.980
1A12FJB10	3.180	54.800	3.090	78.486	3.800
1A12FJA12	3.490	56.900	2.760	70.104	4.630
1A12FJA10	3.250	56.388	2.670	67.818	4.580

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
