Danfoss 1A12BFB12C

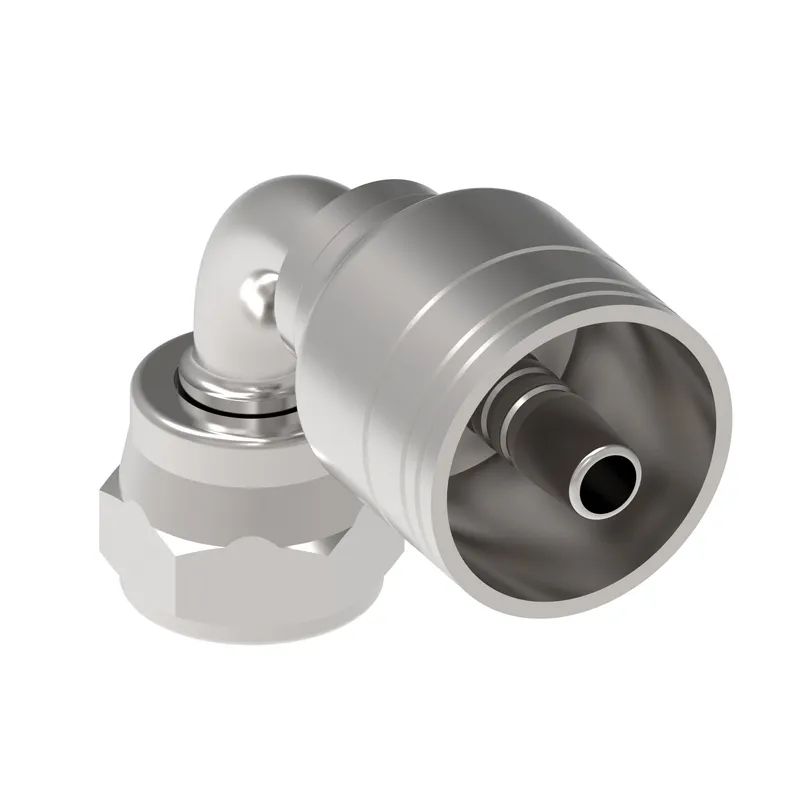

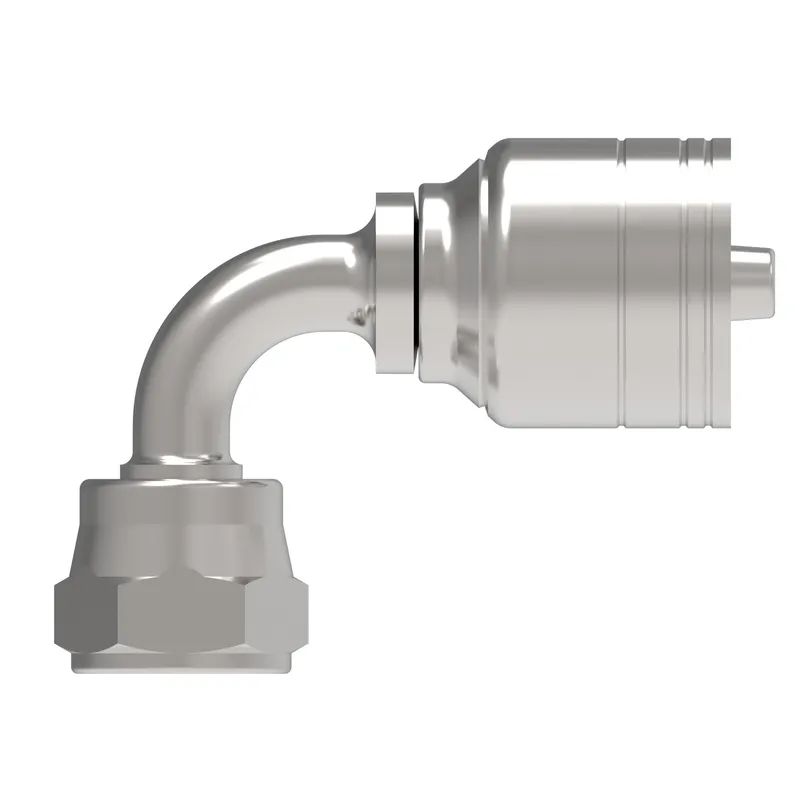

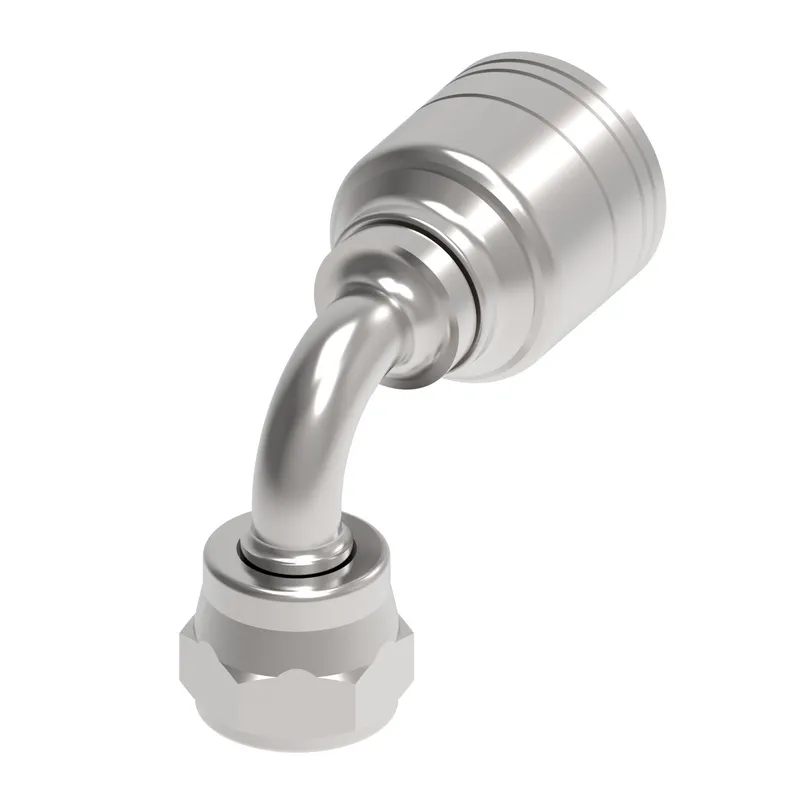

HOSE FTG, 1A/12, BF/12, CS, 90D

MPN: 1A12BFB12C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A12BFB12C?

Danfoss HOSE FTG, 1A/12, BF/12, CS, 90D, manufacturer part number 1A12BFB12C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.110
A dimension MM	79.100
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	1.870
Drop dimension MM	47.50
End connection torque	103-118 lb-ft(140-160 Nm)
End size 1	-12
End Type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.250
Hex size 1 MM	31.750
Hose cut off factor IN	2.050
Hose cut off factor MM	52.000
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	3.010
Product height mm	76.454
Product length in	3.730
Product length mm	94.742
Product material	Carbon steel
Product width in	1.560
Product width mm	39.624
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
