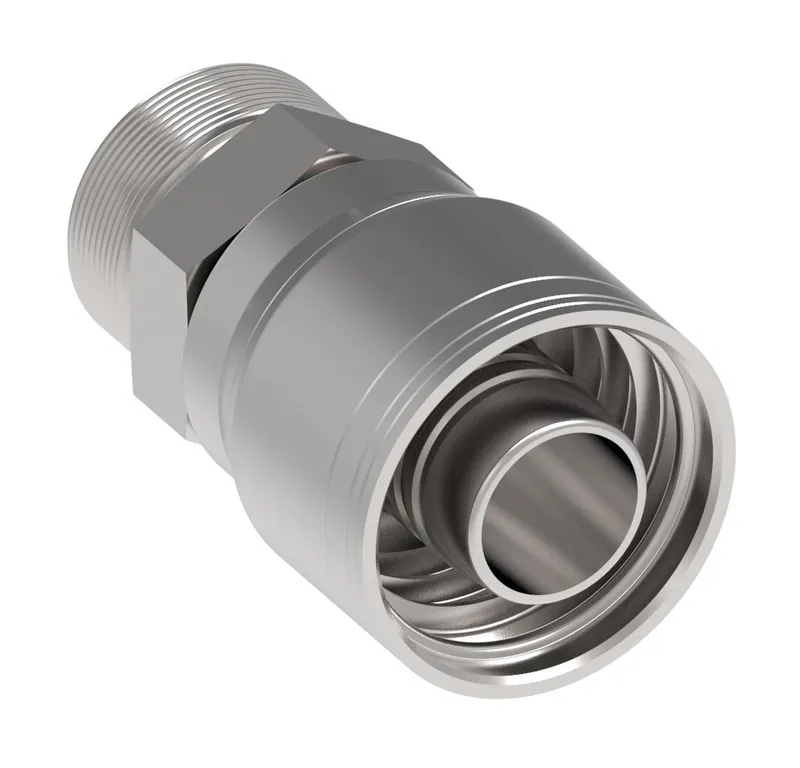

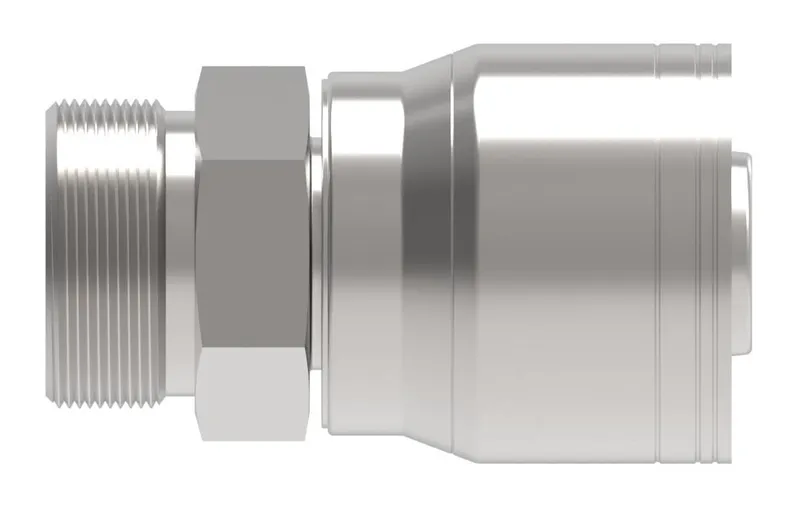

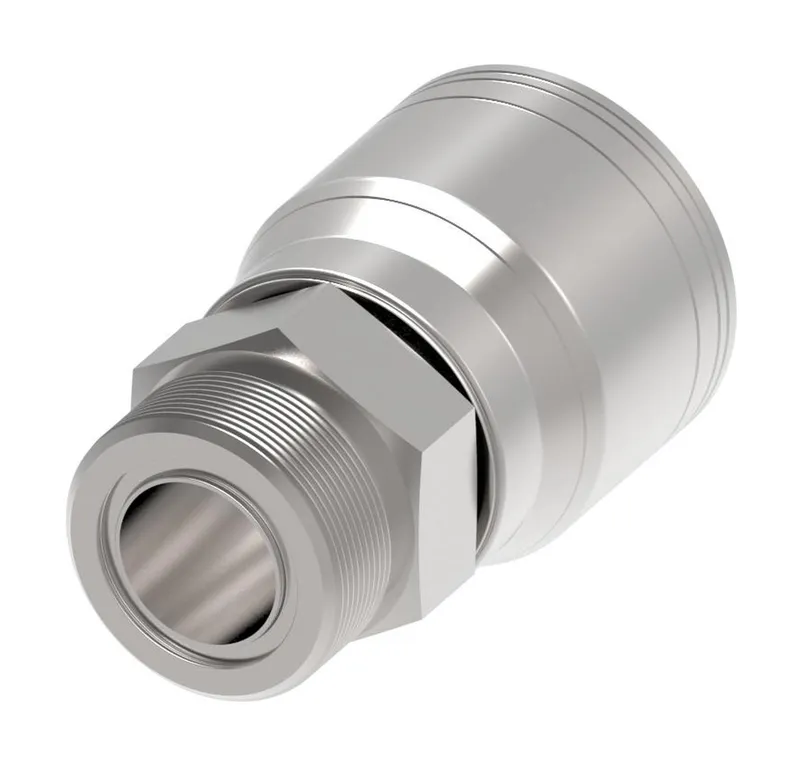

Danfoss 1A10MR10

HOSE FTG, 1A/10, ORS-M/10, CS, STR

MPN: 1A10MR10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10MR10?

Danfoss HOSE FTG, 1A/10, ORS-M/10, CS, STR, manufacturer part number 1A10MR10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146168139
A dimension IN	2.590
A dimension MM	65.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-16
End Type 1	Male ORFS
Finish plating	Dura-Kote
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hex size 2 MM	27.000
Hose cut off factor IN	1.610
Hose cut off factor MM	40.894
Hose size	-10
Inside diameter IN	0.480
Inside diameter MM	12.192
Product height in	1.390
Product height mm	35.306
Product length in	2.590
Product length mm	65.786
Product material	Carbon steel
Product width in	1.390
Product width mm	35.306
Series	1A/Z Series
Thread sealant	No
Thread size 1	1-14 UNS
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
