Danfoss 1A8DSB6C

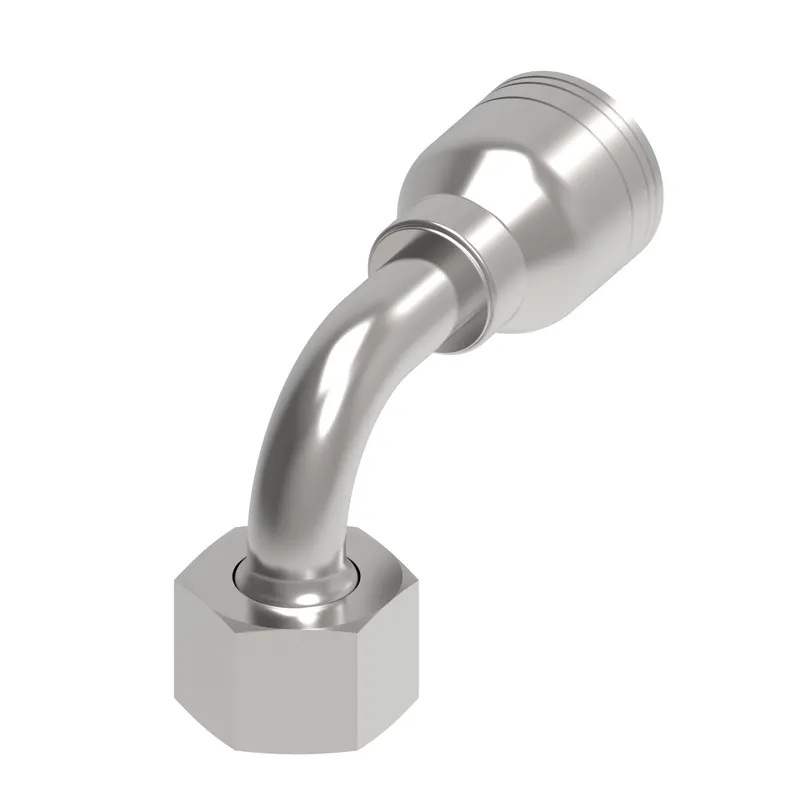

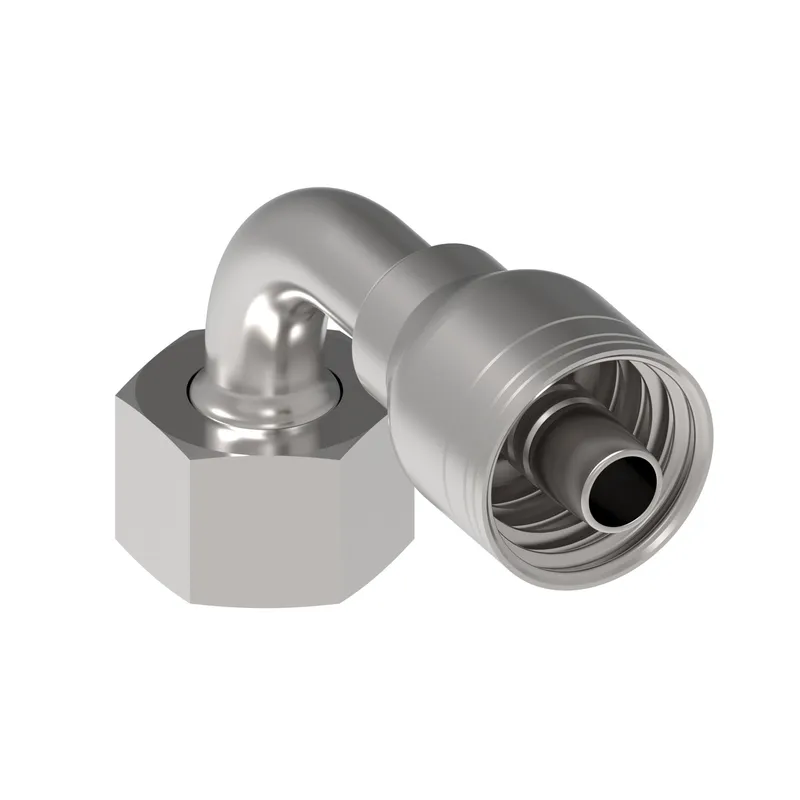

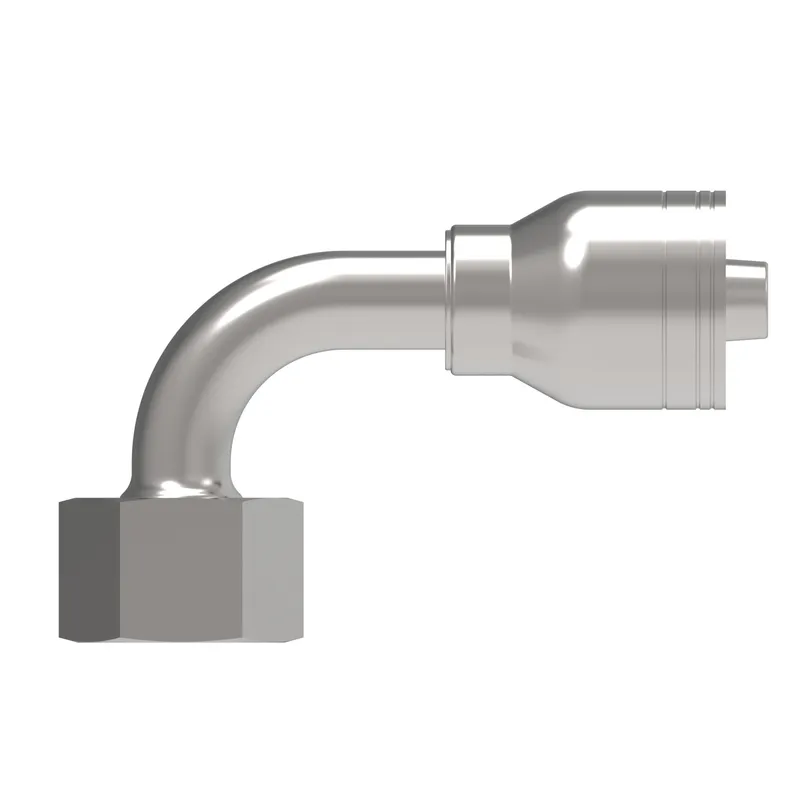

HOSE FTG, 1A/06, DKOH-B/08, AP, 90D

MPN: 1A8DSB6C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 1A8DSB6C?

Danfoss HOSE FTG, 1A/06, DKOH-B/08, AP, 90D, manufacturer part number 1A8DSB6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.360
A dimension MM	59.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.390
Drop dimension MM	35.30
End connection torque	50-60 lb-ft(68-78 Nm)
End size 1	-8
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Passivate
Hex size 1 IN	0.944
Hex size 1 MM	24.000
Hose cut off factor IN	1.360
Hose cut off factor MM	34.600
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.920
Product height mm	48.768
Product length in	2.830
Product length mm	71.882
Product material	316 Stainless steel
Product width in	1.080
Product width mm	27.432
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M20x1.5
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1A8DSB6C: frequently asked questions

When can 1A8DSB6C be shipped?

1A8DSB6C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A8DSB6C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A8DSB6C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A8DSB6C, subject to availability and destination.
