Danfoss 1A8FLB8

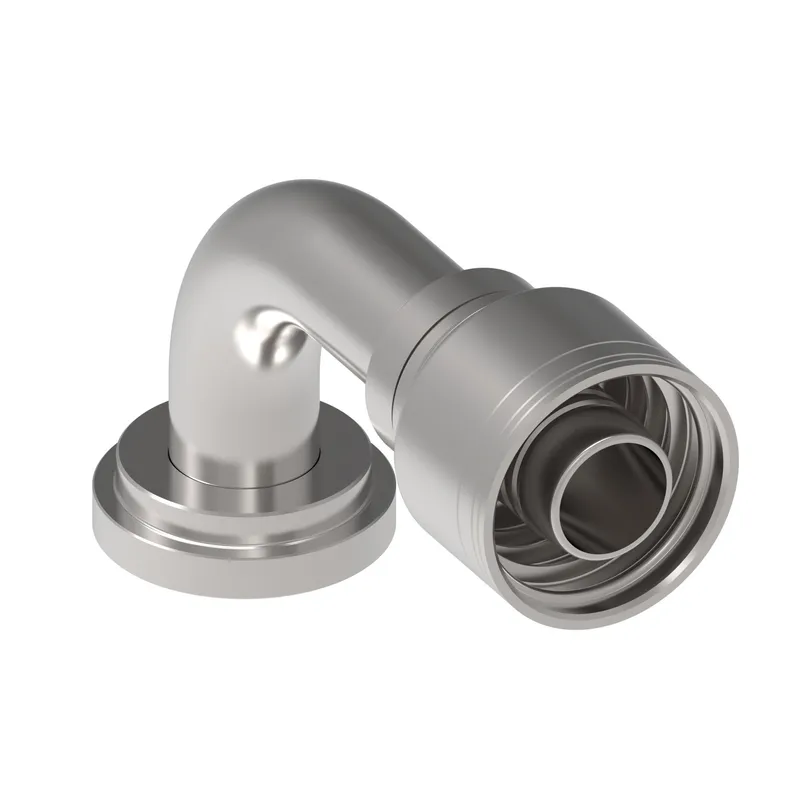

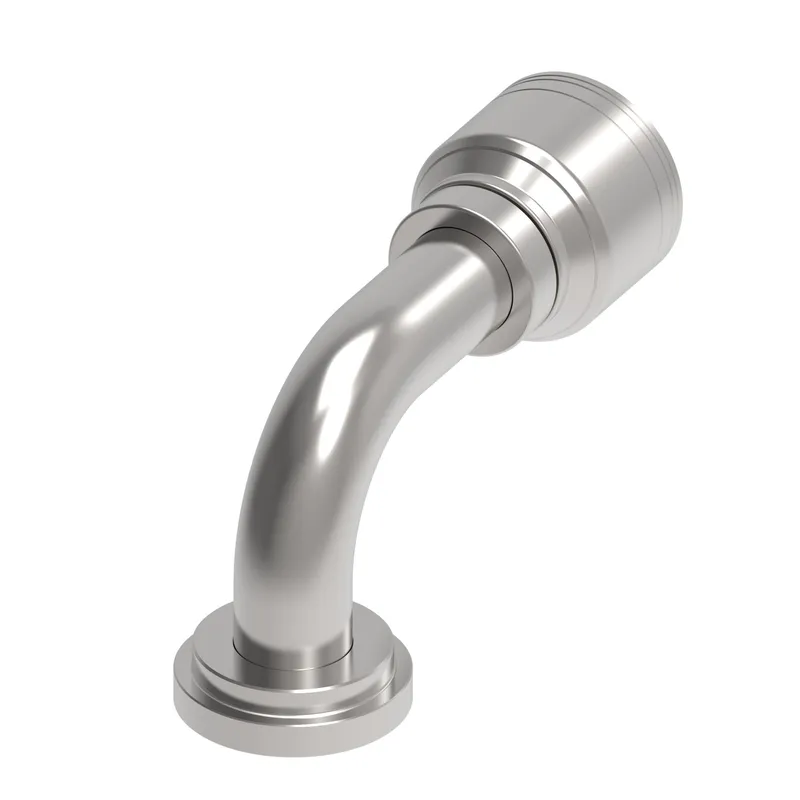

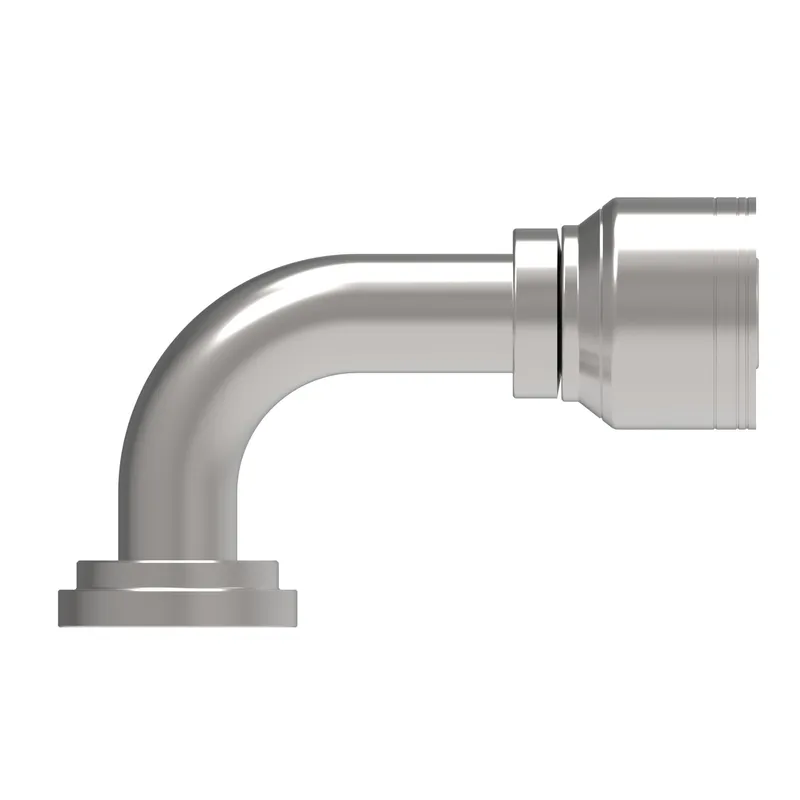

HOSE FTG, 1A/08, C61/08, CS, 90D

MPN: 1A8FLB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8FLB8?

Danfoss HOSE FTG, 1A/08, C61/08, CS, 90D, manufacturer part number 1A8FLB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146124951
A dimension IN	2.670
A dimension MM	67.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Construction Style	Crimp
Drop dimension IN	1.630
Drop dimension MM	41.40
End connection torque	15-19 lb-ft(20-25 Nm)
End size 1	-8
End Type 1	Split flange code 61
Finish plating	Dura-Kote
Hose cut off factor IN	1.670
Hose cut off factor MM	42.300
Hose size	-8
Inside diameter IN	0.360
Inside diameter MM	9.100
Product height in	2.240
Product height mm	56.896
Product length in	3.420
Product length mm	86.868
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
Working pressure max BAR	345.00
Working pressure max PSI	5000.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
