Danfoss 1A8FJB8.035

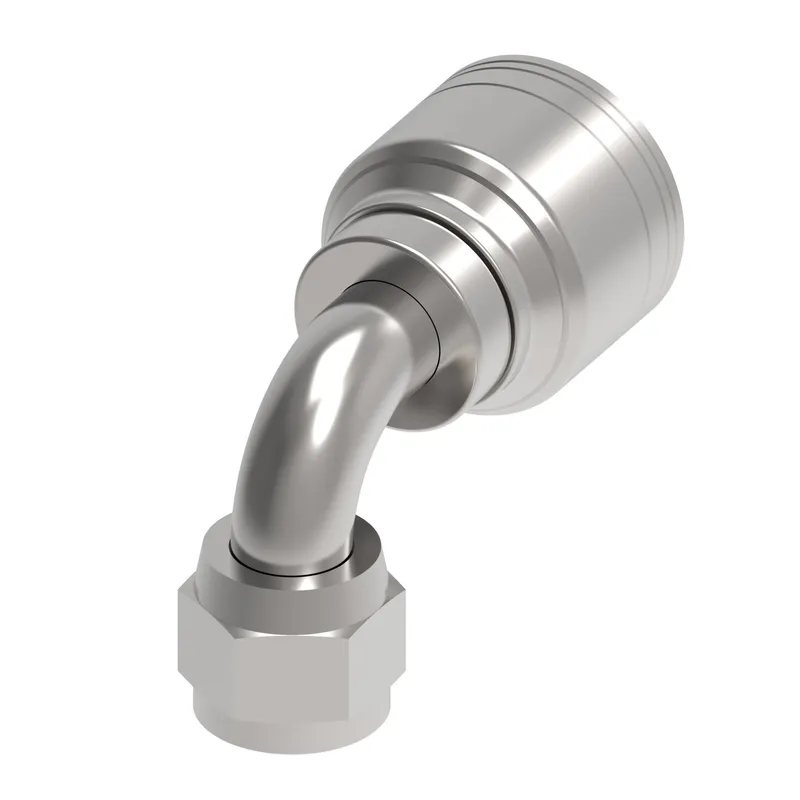

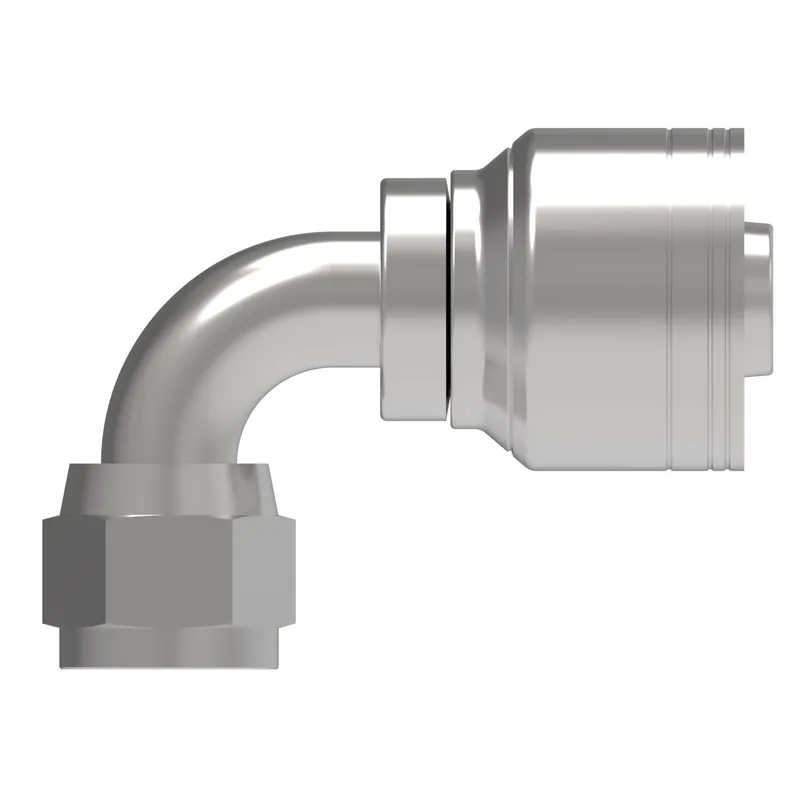

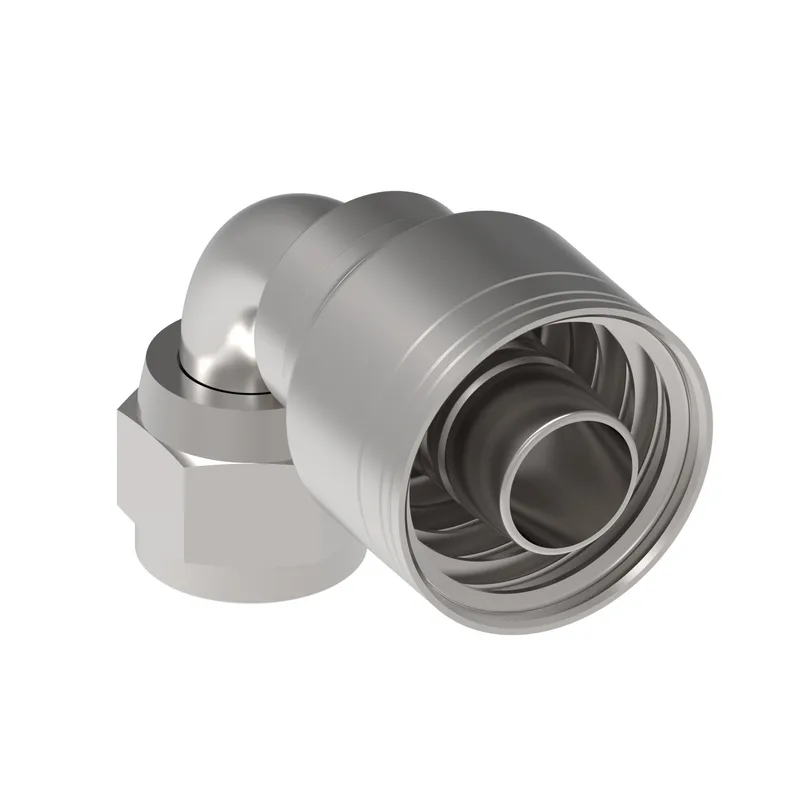

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

MPN: 1A8FJB8.035
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8FJB8.035?

Danfoss HOSE FTG, 1A/08, JIC-F/08, CS, 90D, manufacturer part number 1A8FJB8.035. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.560
A dimension MM	65.200
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	GH663, GH793
Construction Style	Crimp
Drop dimension IN	1.350
Drop dimension MM	34.50
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.390
Hose cut off factor MM	35.500
Hose size	-8
Inside diameter IN	0.370
Inside diameter MM	9.500
Product height in	1.968
Product height mm	50.000
Product length in	2.753
Product length mm	69.950
Product material	Carbon steel
Product width in	1.547
Product width mm	39.3
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	360.00
Working pressure max PSI	5300.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
