Danfoss 1A8FJB6

HOSE FTG, 1A/06, JIC-F/08, CS, 90D

MPN: 1A8FJB6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

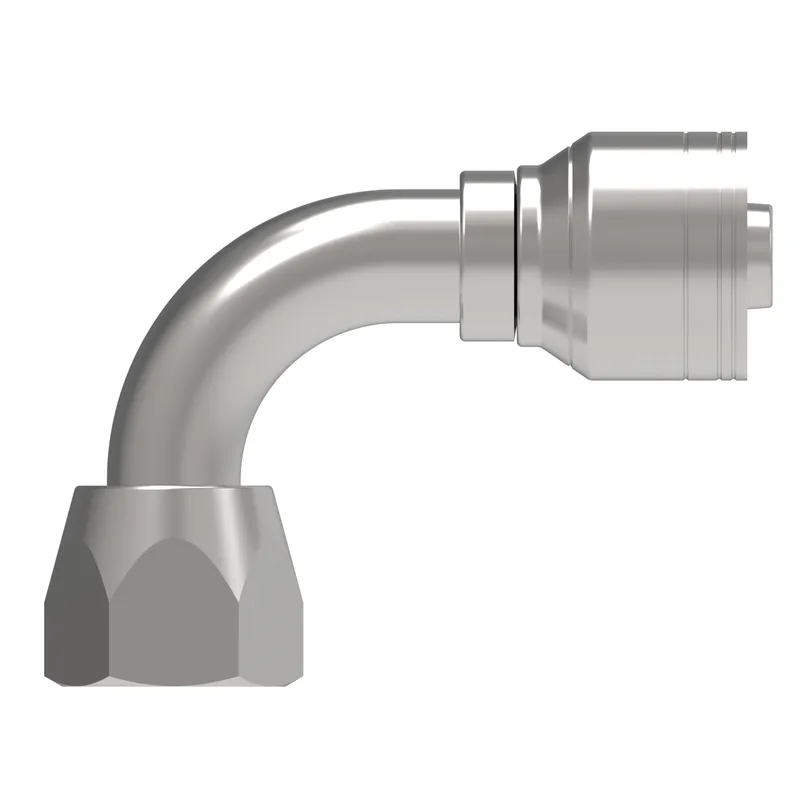

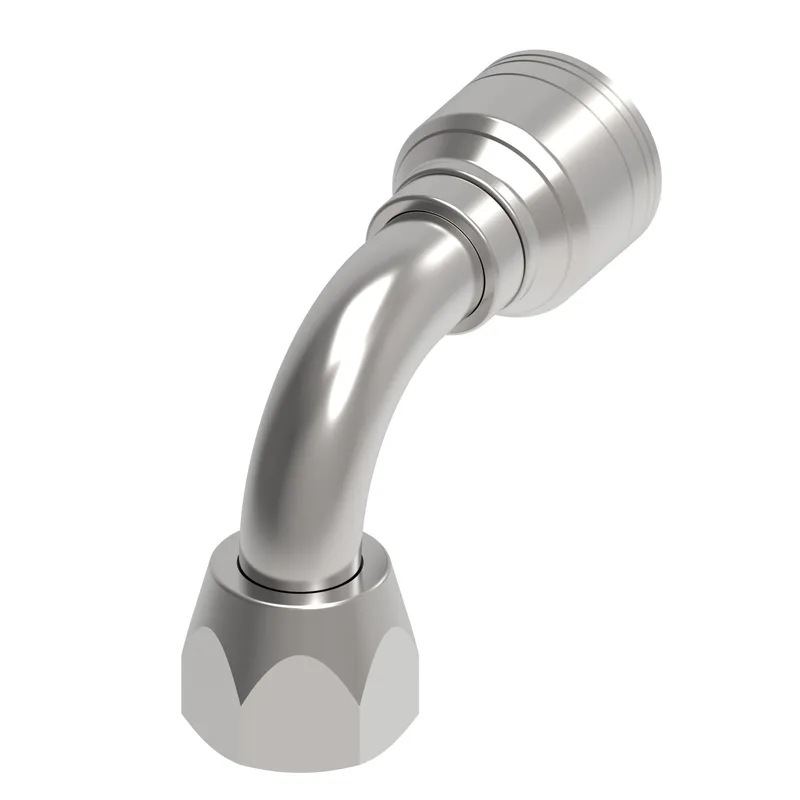

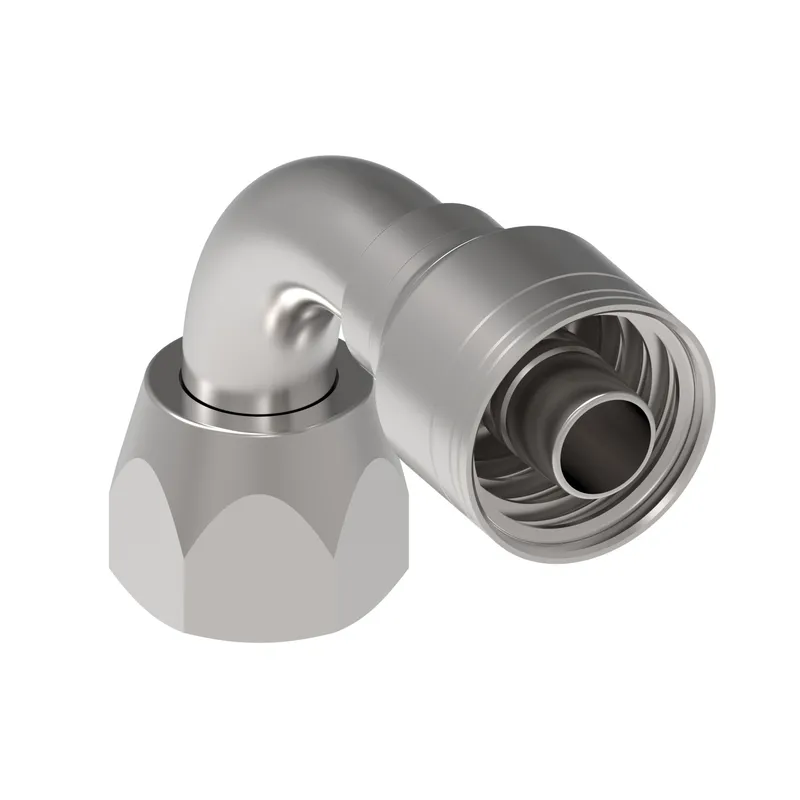

What is the Danfoss 1A8FJB6?

Danfoss HOSE FTG, 1A/06, JIC-F/08, CS, 90D, manufacturer part number 1A8FJB6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169075
A dimension IN	2.260
A dimension MM	57.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.090
Drop dimension MM	27.70
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	21.996
Hose cut off factor IN	1.420
Hose cut off factor MM	36.100
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	2.070
Product height mm	52.578
Product length in	2.840
Product length mm	72.136
Product material	Carbon steel
Product width in	1.067
Product width mm	27.101
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1A8FJB6: frequently asked questions

When can 1A8FJB6 be shipped?

1A8FJB6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A8FJB6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A8FJB6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A8FJB6, subject to availability and destination.
