Danfoss 1A8FRA6

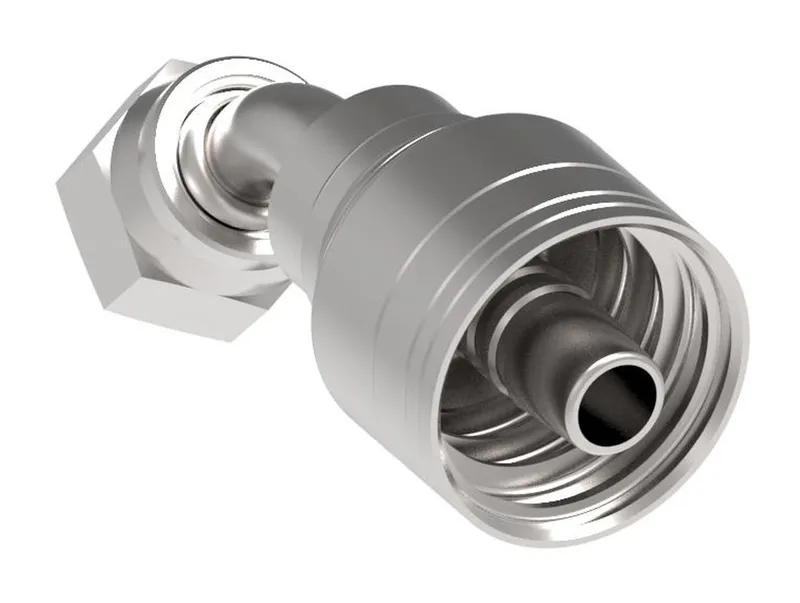

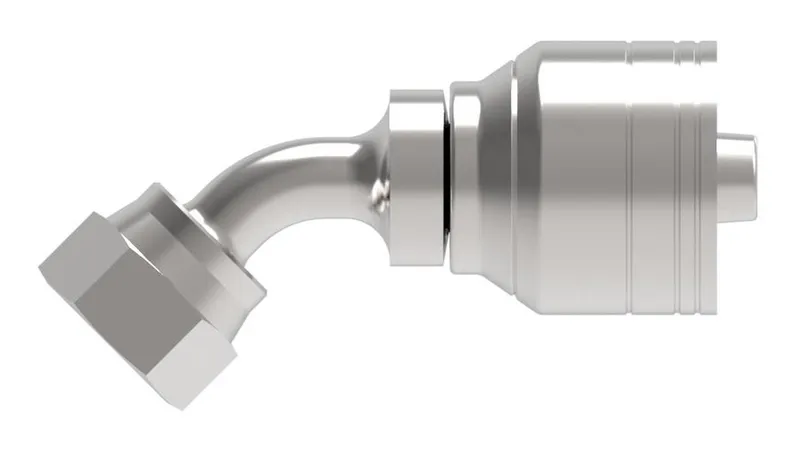

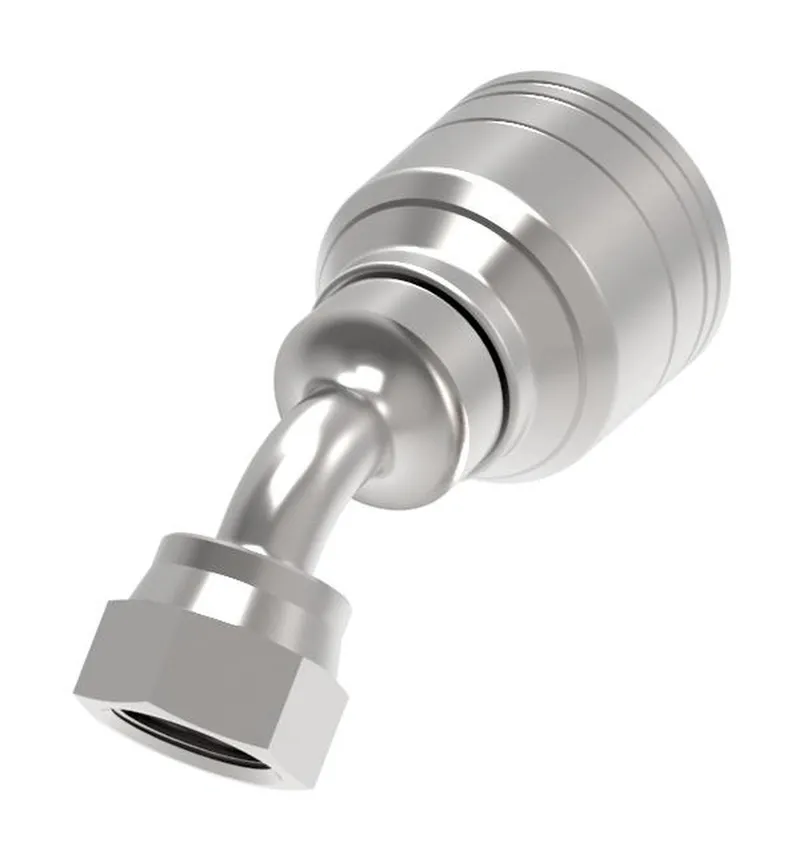

HOSE FTG, 1A/06, ORS-F/08, CS, 45D

MPN: 1A8FRA6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8FRA6?

Danfoss HOSE FTG, 1A/06, ORS-F/08, CS, 45D, manufacturer part number 1A8FRA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.580
A dimension MM	65.600
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	0.590
Drop dimension MM	15.00
End connection torque	32-35 lb-ft(43-47 Nm)
End size 1	-8
End Type 1	Female ORFS swivel
Finish plating	Zinc plating
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Hose cut off factor IN	1.740
Hose cut off factor MM	44.300
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	2.020
Product height mm	51.308
Product length in	3.640
Product length mm	92.456
Product material	Carbon steel
Product width in	1.067
Product width mm	27.101
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	13/16-16 UN
Working pressure max BAR	552.00
Working pressure max PSI	8100.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
