Danfoss 1A8FJC8

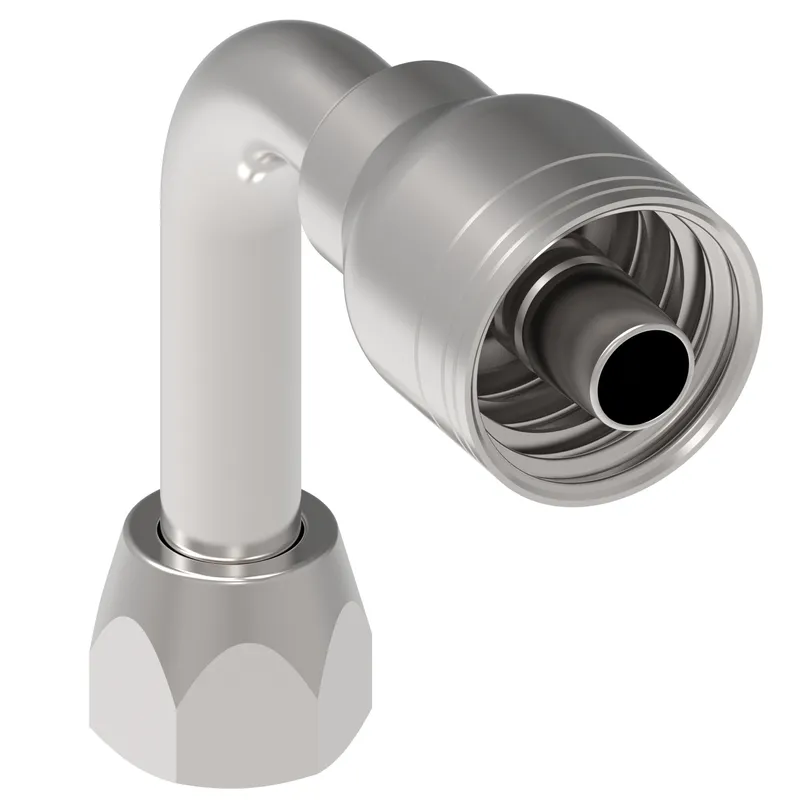

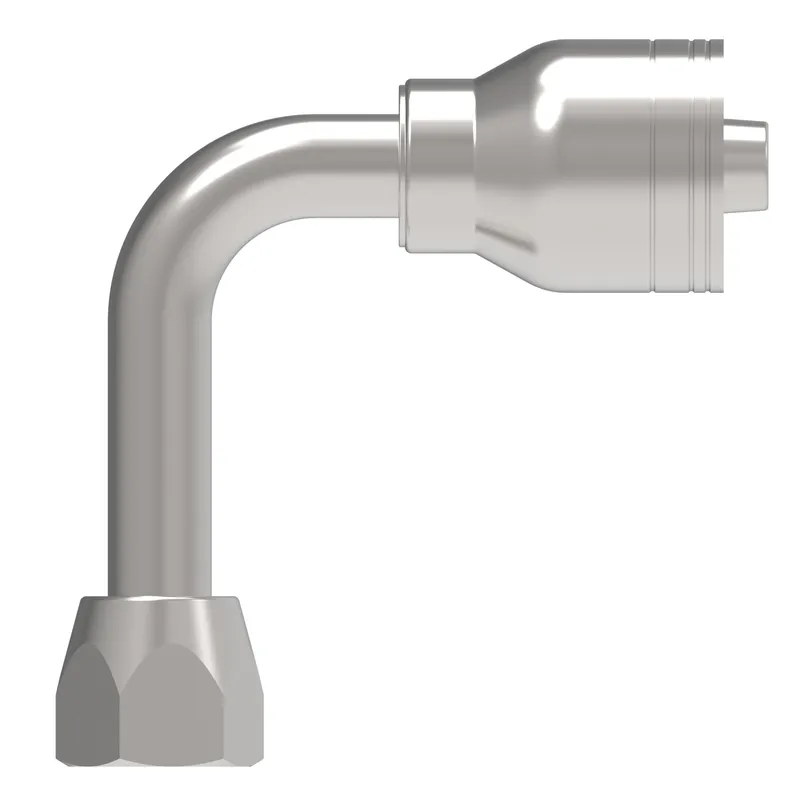

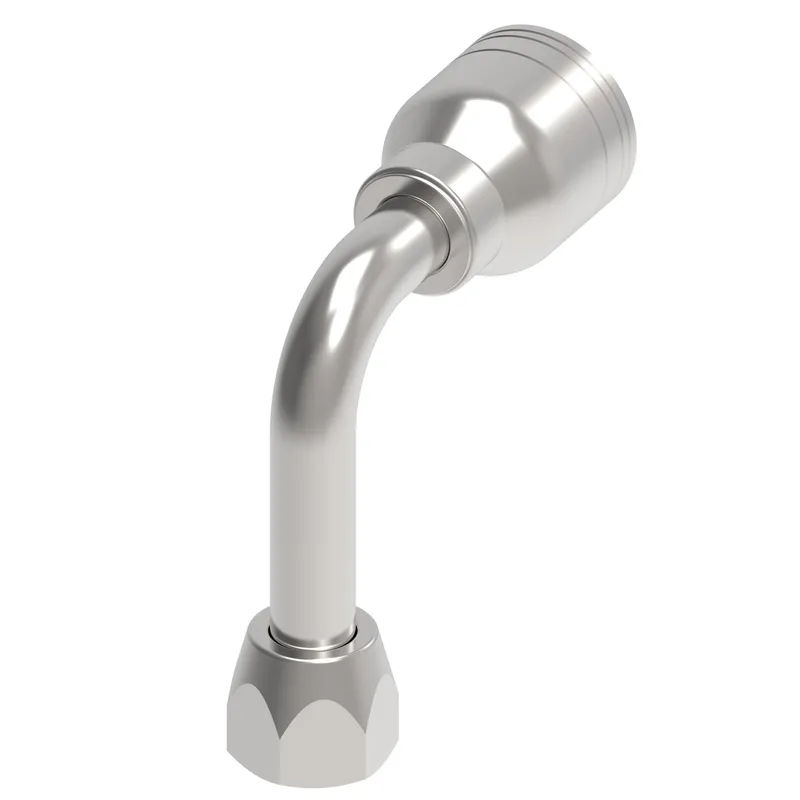

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

MPN: 1A8FJC8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8FJC8?

Danfoss HOSE FTG, 1A/08, JIC-F/08, CS, 90D, manufacturer part number 1A8FJC8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.710
A dimension MM	68.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	2.400
Drop dimension MM	61.70
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 2 IN	0.870
Hex size 2 MM	22.098
Hose cut off factor IN	1.540
Hose cut off factor MM	39.200
Hose size	-8
Inside diameter IN	0.370
Inside diameter MM	9.400
Product height in	3.490
Product height mm	88.646
Product length in	3.210
Product length mm	81.534
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Series	1A/Z Series
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
