Danfoss 1G16BP16

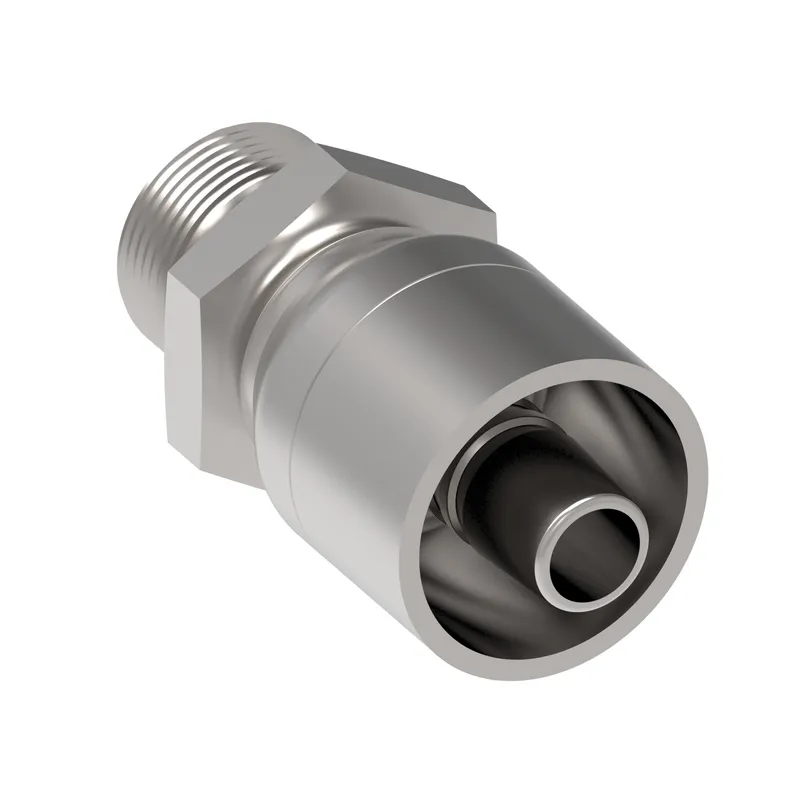

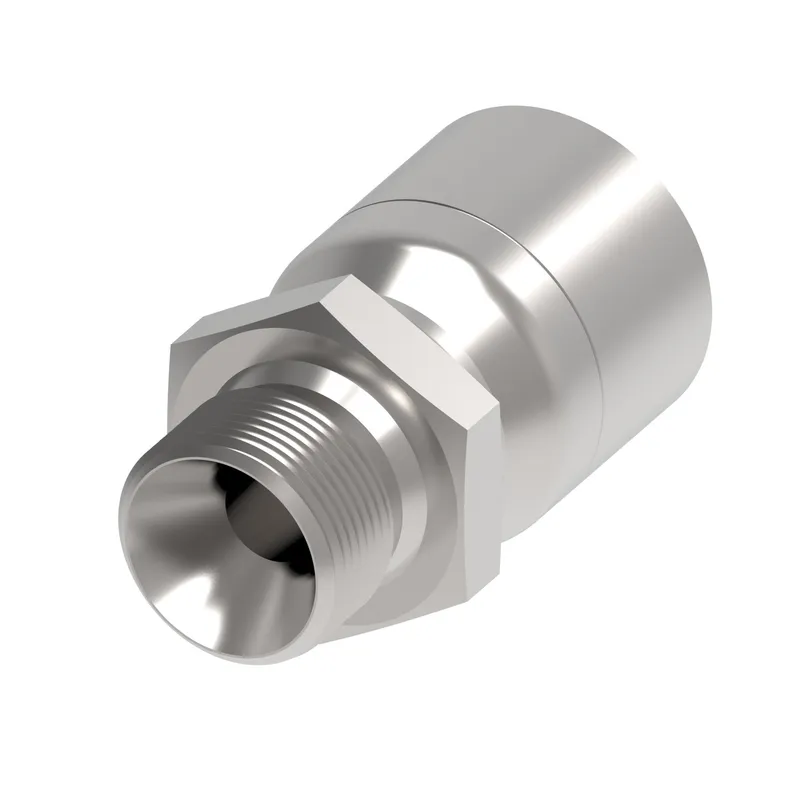

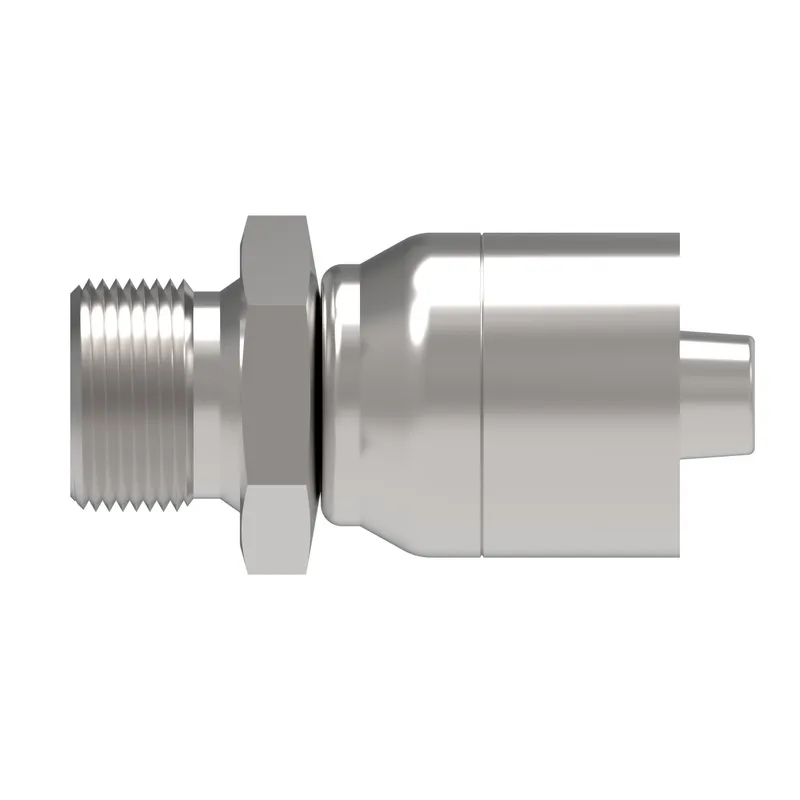

HOSE FTG, 1G/16, BSPJ/16, CS, STR

MPN: 1G16BP16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G16BP16?

Danfoss HOSE FTG, 1G/16, BSPJ/16, CS, STR, manufacturer part number 1G16BP16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.790
A dimension MM	70.900
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End size 1	-16
End Type 1	Male BSPP 60 degree cone
Finish plating	Zinc plating
Hex size 1 IN	1.614
Hex size 1 MM	41.000
Hex size 2 MM	41.000
Hose cut off factor IN	1.430
Hose cut off factor MM	36.500
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	1.864
Product height mm	47.341
Product length in	2.791
Product length mm	70.899
Product material	Carbon steel
Product width in	1.680
Product width mm	42.659
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	G 1
Working pressure max BAR	280.00
Working pressure max PSI	4050.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
