Danfoss 1G12FJA10

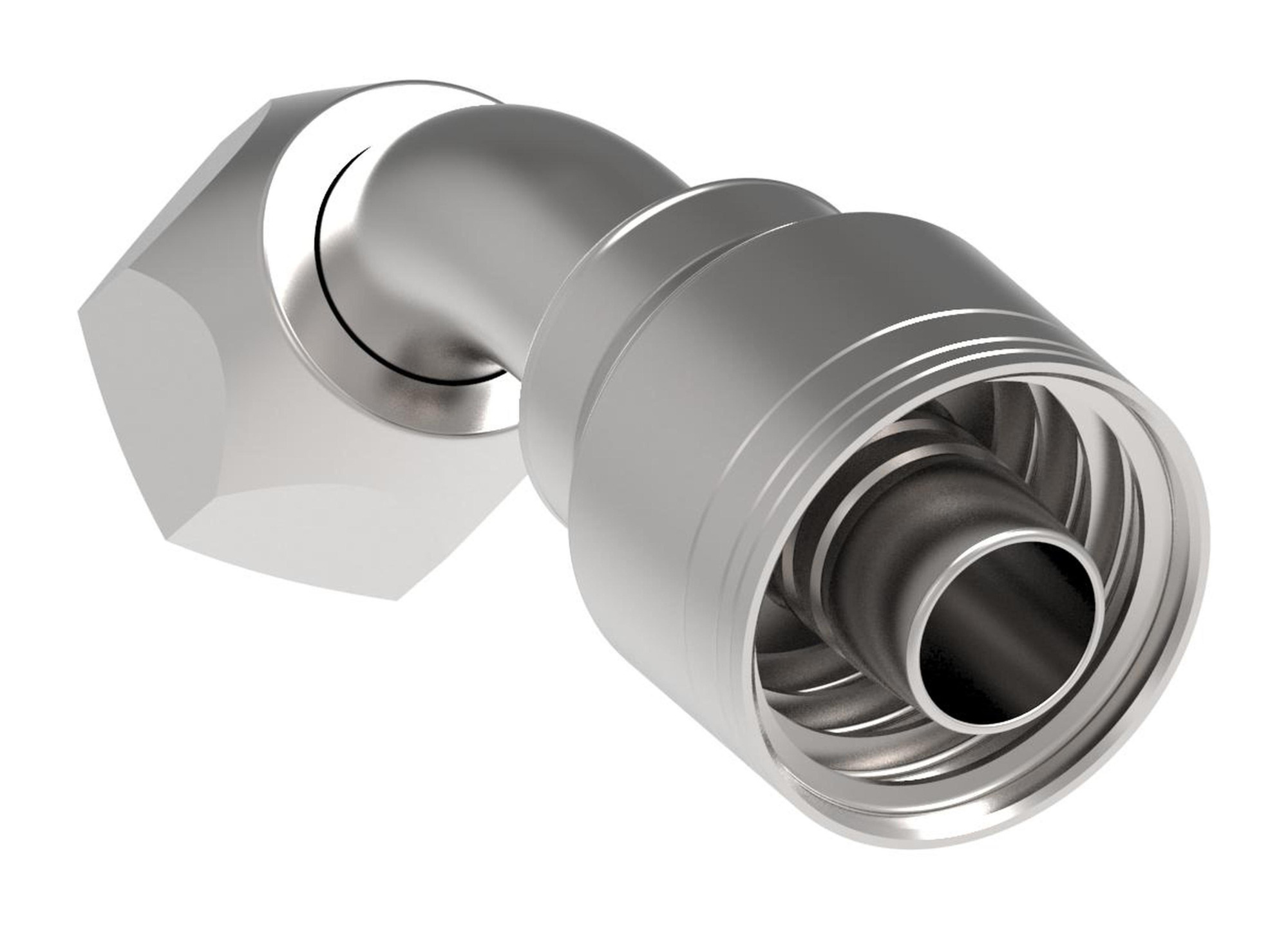

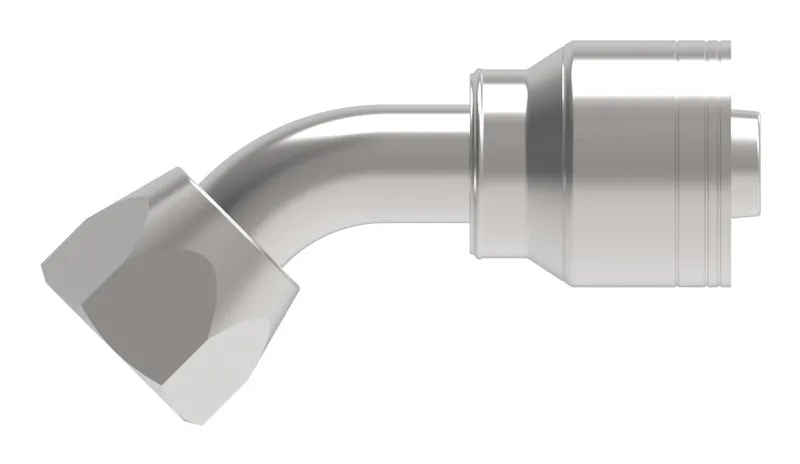

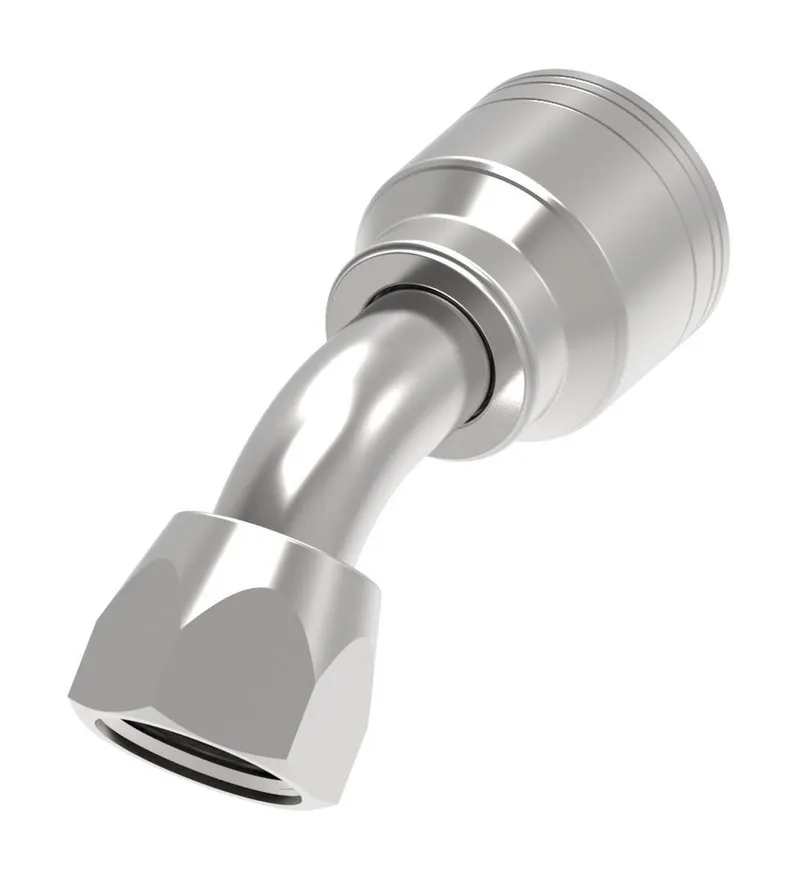

HOSE FTG, 1G/10, JIC-F/12, CS, 45D

MPN: 1G12FJA10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G12FJA10?

Danfoss HOSE FTG, 1G/10, JIC-F/12, CS, 45D, manufacturer part number 1G12FJA10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.380
A dimension MM	85.900
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	0.780
Drop dimension MM	19.80
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.260
Hex size 1 MM	32.000
Hose cut off factor IN	2.220
Hose cut off factor MM	56.500
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.410
Product height mm	35.801
Product length in	3.382
Product length mm	85.900
Product material	Carbon steel
Product width in	1.260
Product width mm	31.999
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
