Danfoss 1G12FJA12

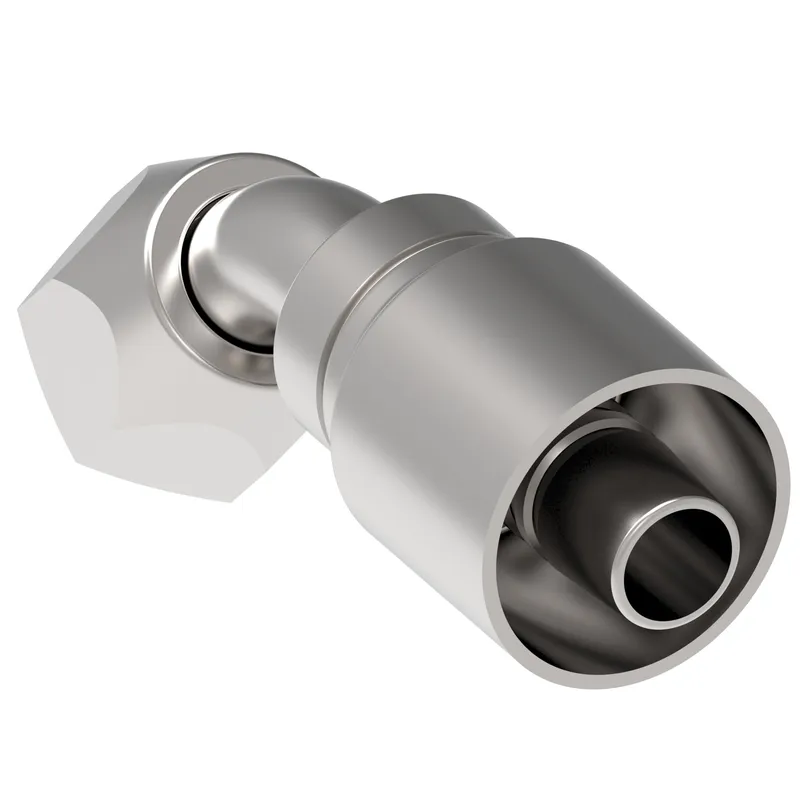

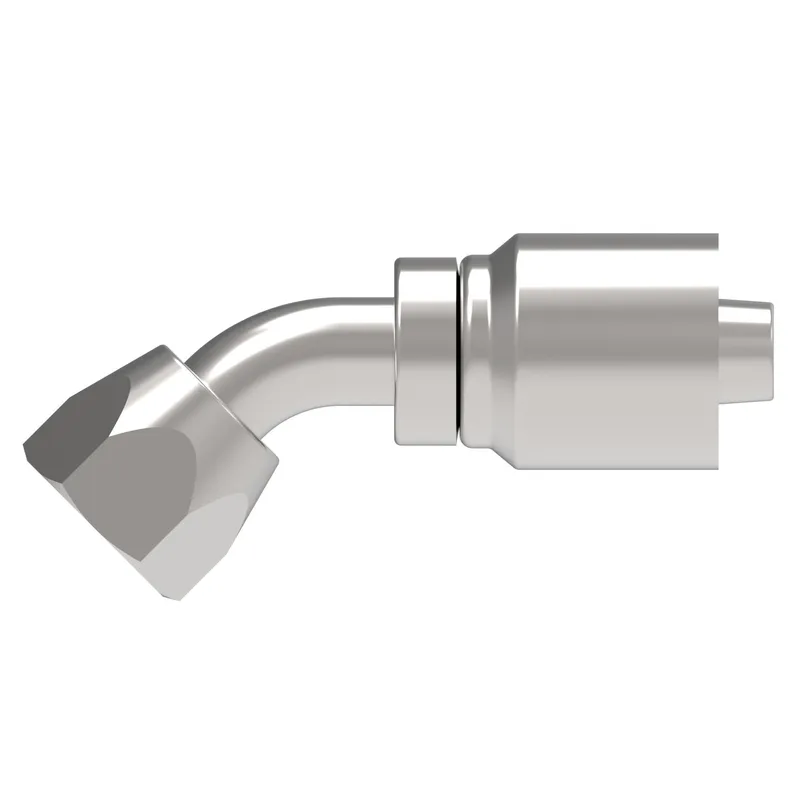

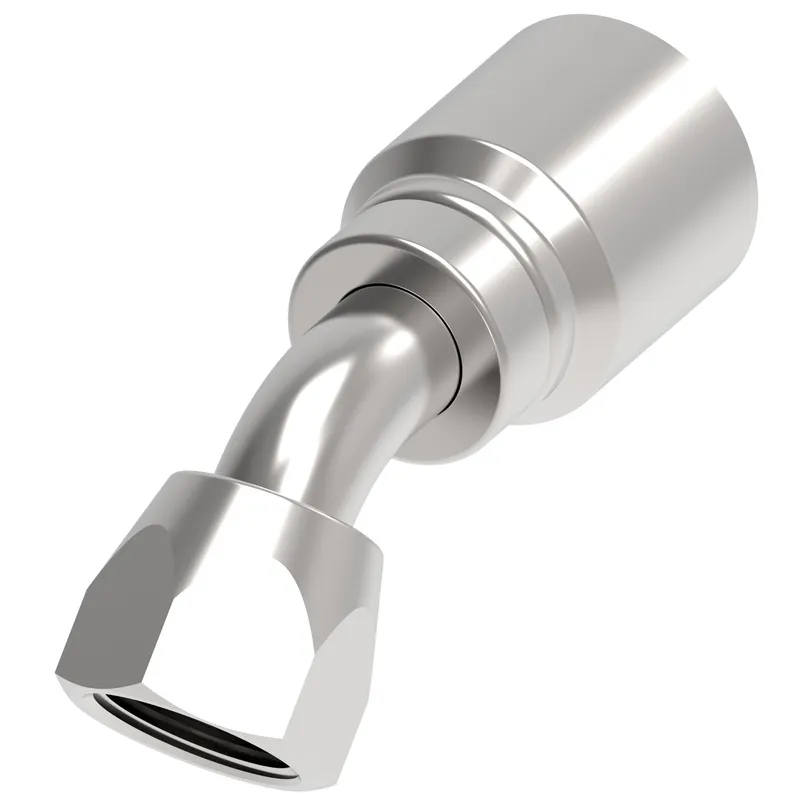

HOSE FTG, 1G/12, JIC-F/12, CS, 45D

MPN: 1G12FJA12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G12FJA12?

Danfoss HOSE FTG, 1G/12, JIC-F/12, CS, 45D, manufacturer part number 1G12FJA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.430
A dimension MM	87.100
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	0.780
Drop dimension MM	19.80
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 2 IN	1.260
Hex size 2 MM	32.004
Hose cut off factor IN	2.240
Hose cut off factor MM	56.900
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	2.220
Product height mm	56.388
Product length in	4.160
Product length mm	105.664
Product material	Carbon steel
Product width in	1.430
Product width mm	36.322
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G12FJA12: frequently asked questions

When can 1G12FJA12 be shipped?

1G12FJA12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G12FJA12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G12FJA12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G12FJA12, subject to availability and destination.
