Danfoss 1G16BJ10

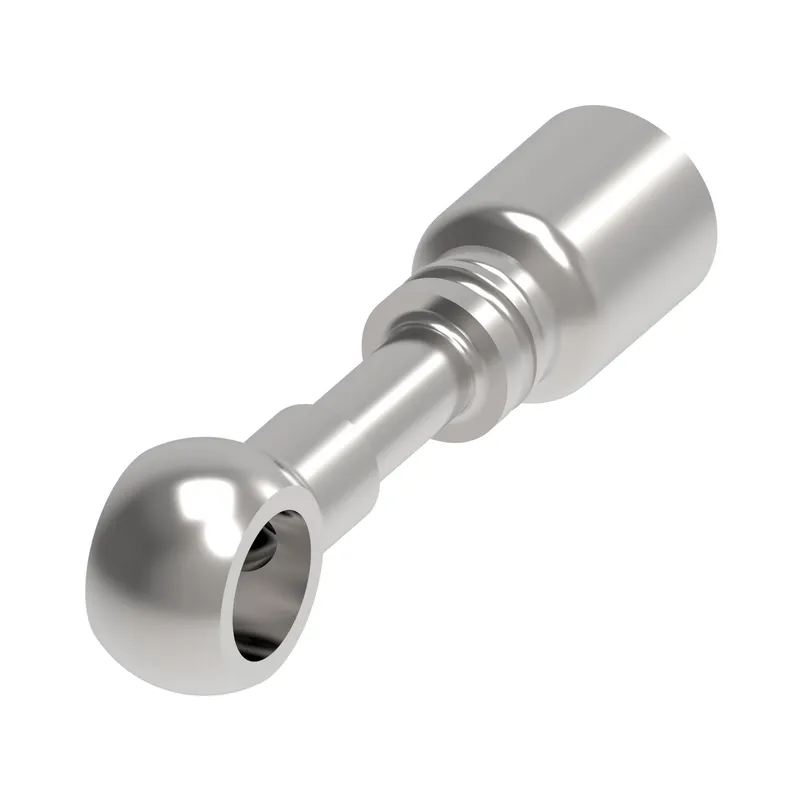

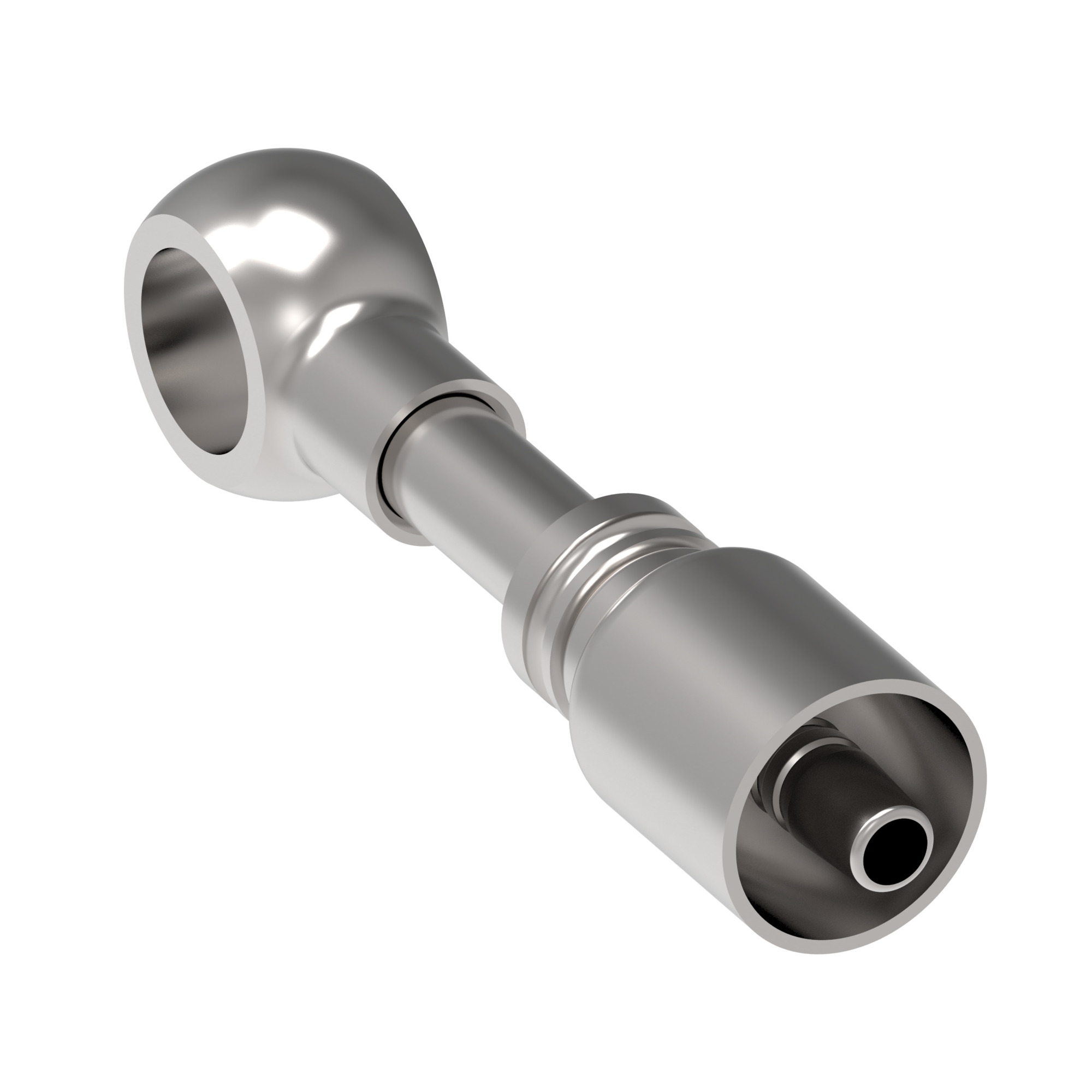

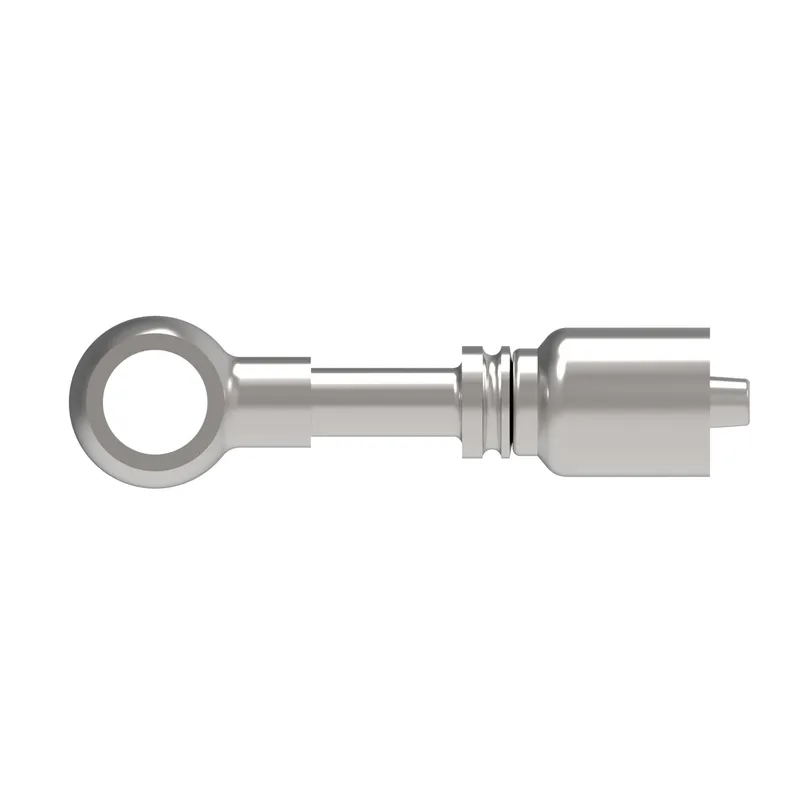

HOSE FTG, 1G/10, BANJO/16, CS, STR

MPN: 1G16BJ10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G16BJ10?

Danfoss HOSE FTG, 1G/10, BANJO/16, CS, STR, manufacturer part number 1G16BJ10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.560
A dimension MM	90.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	GH585, GH586
Construction Style	Crimp
End size 1	-16
End Type 1	Banjo DIN 7642 Form B, L.D.
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hose cut off factor IN	2.420
Hose cut off factor MM	61.100
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	0.870
Product height mm	22.098
Product length in	3.560
Product length mm	90.424
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
