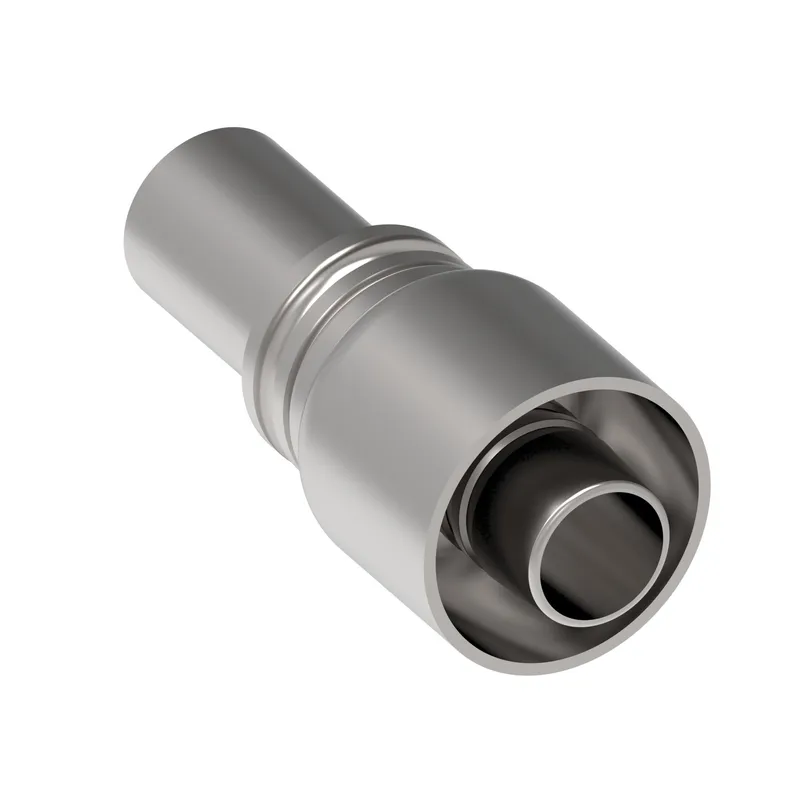

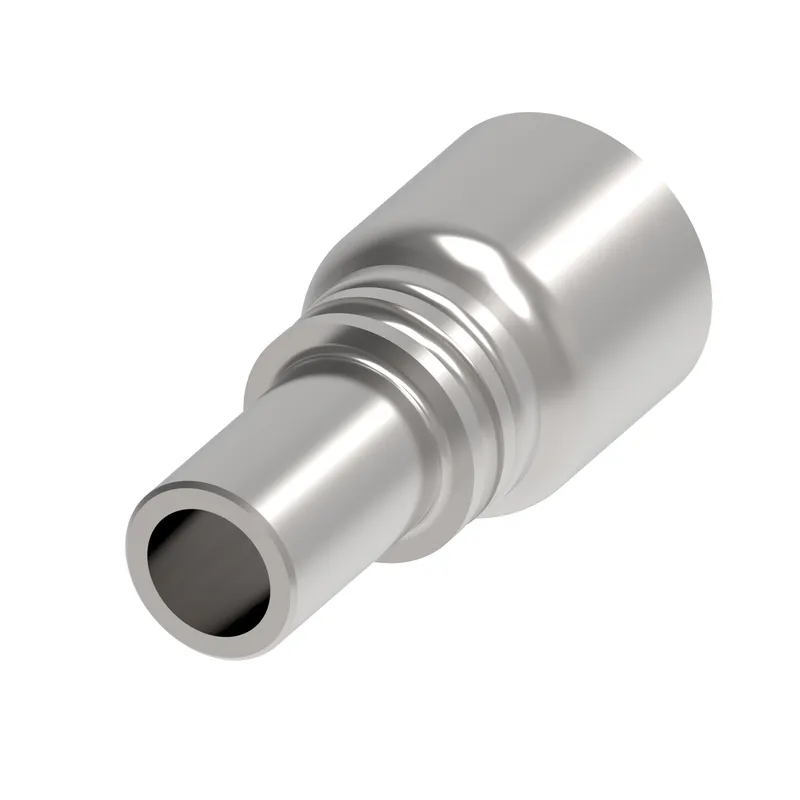

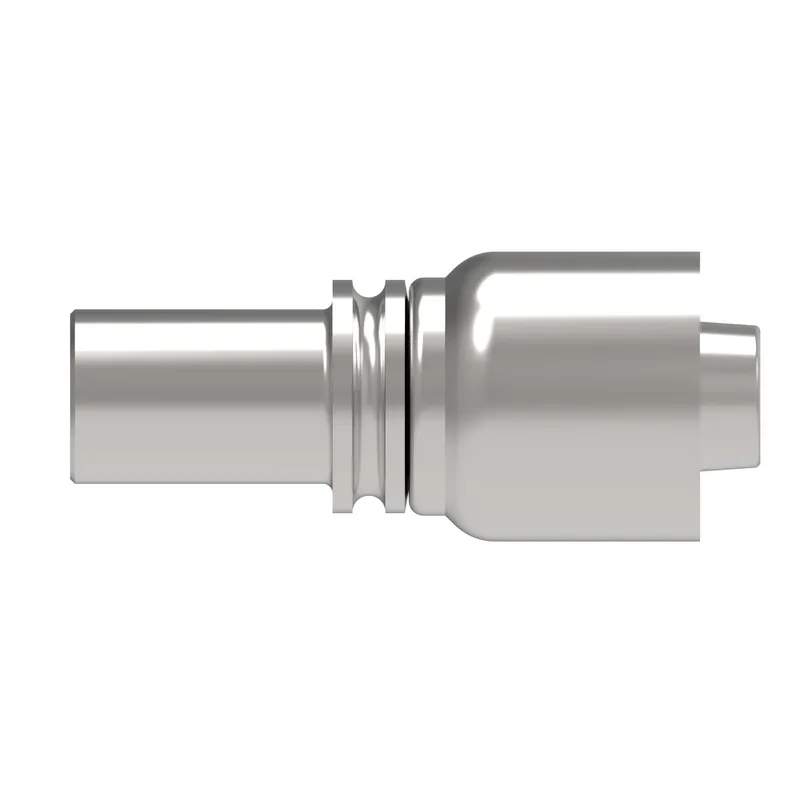

Danfoss 1G18LM10

HOSE FTG, 1G/10, STPIPE/18, CS, STR

MPN: 1G18LM10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G18LM10?

Danfoss HOSE FTG, 1G/10, STPIPE/18, CS, STR, manufacturer part number 1G18LM10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.710
A dimension MM	69.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End size 1	18L
End Type 1	Standpipe Metric
Finish plating	Dura-Kote
Hose cut off factor IN	1.550
Hose cut off factor MM	39.600
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.215
Product height mm	30.851
Product length in	2.716
Product length mm	68.999
Product material	Carbon steel
Product width in	1.215
Product width mm	30.851
Series	OTC
Thread sealant	No
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
