Danfoss 1G16DL8

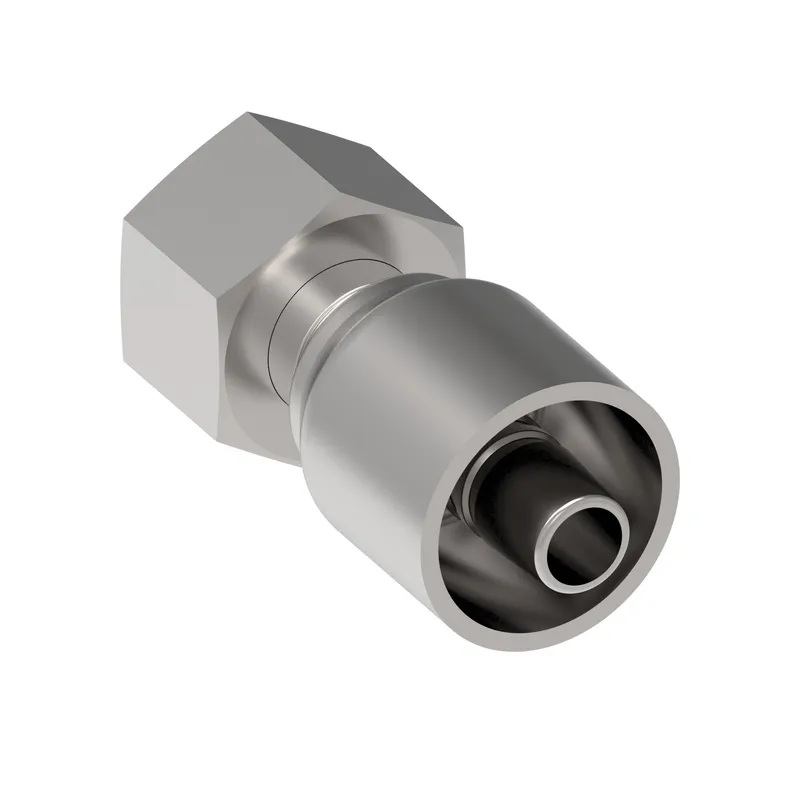

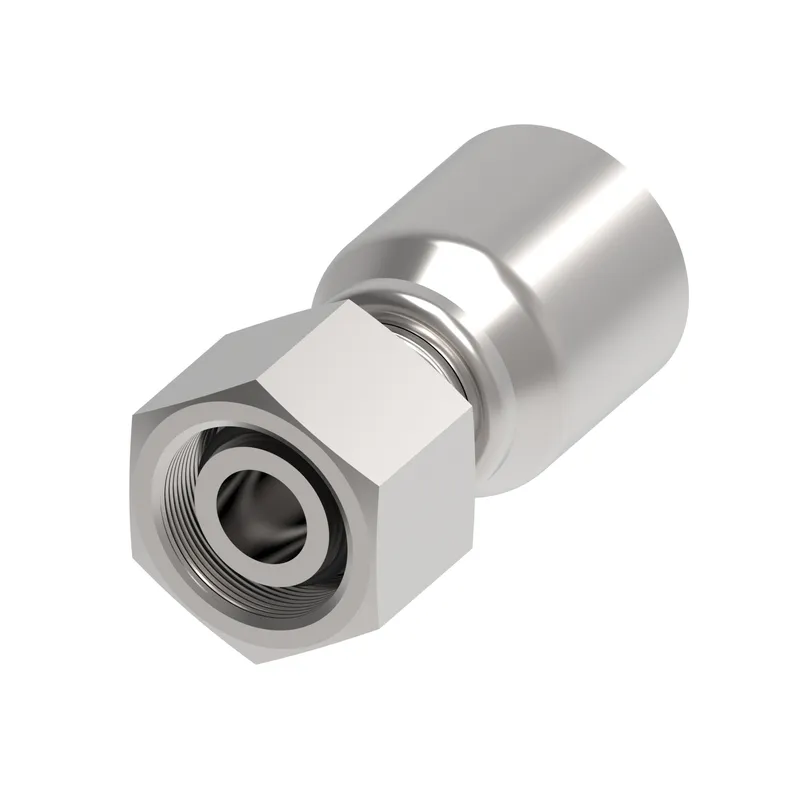

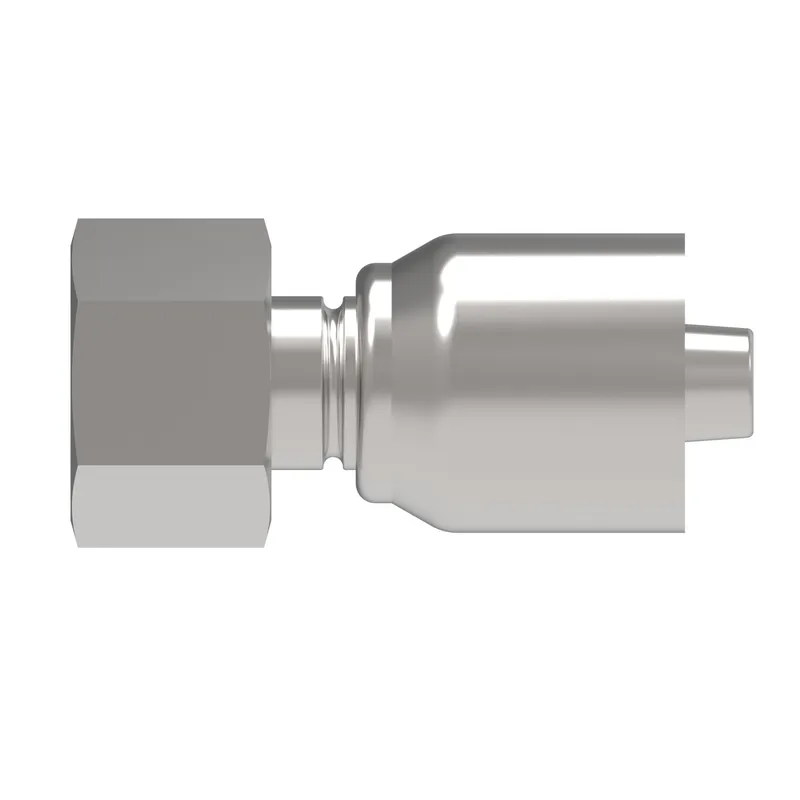

HOSE FTG, 1G/08, DKOL/16, CS, STR

MPN: 1G16DL8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G16DL8?

Danfoss HOSE FTG, 1G/08, DKOL/16, CS, STR, manufacturer part number 1G16DL8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.340
A dimension MM	59.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-16
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hose cut off factor IN	1.160
Hose cut off factor MM	29.900
Hose size	-8
Inside diameter IN	0.370
Inside diameter MM	9.600
Product height in	1.460
Product height mm	37.084
Product length in	2.360
Product length mm	59.944
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	M26x1.5
Working pressure max BAR	165.00
Working pressure max PSI	2400.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
