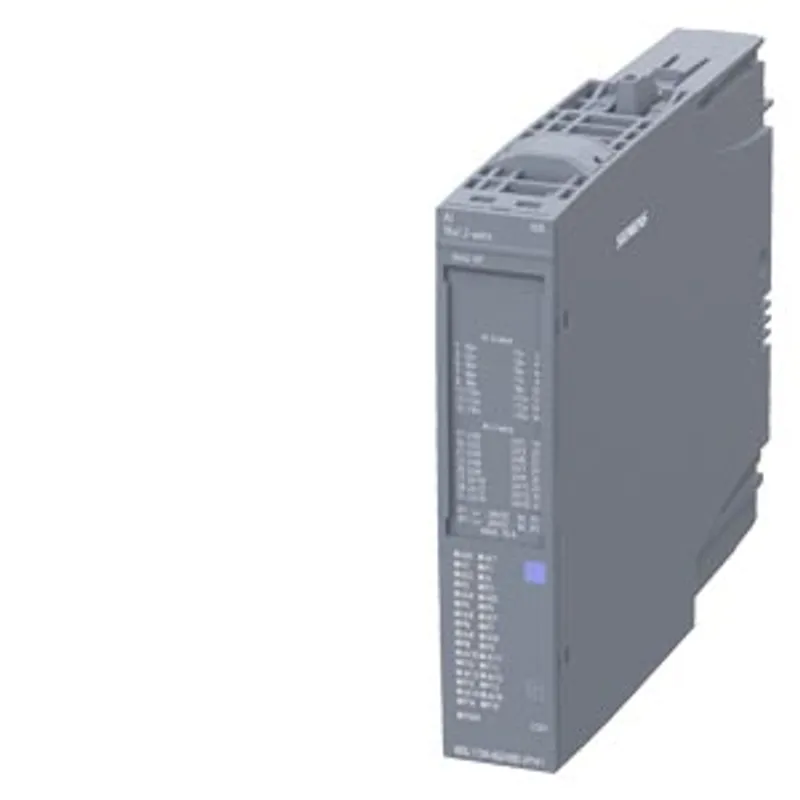

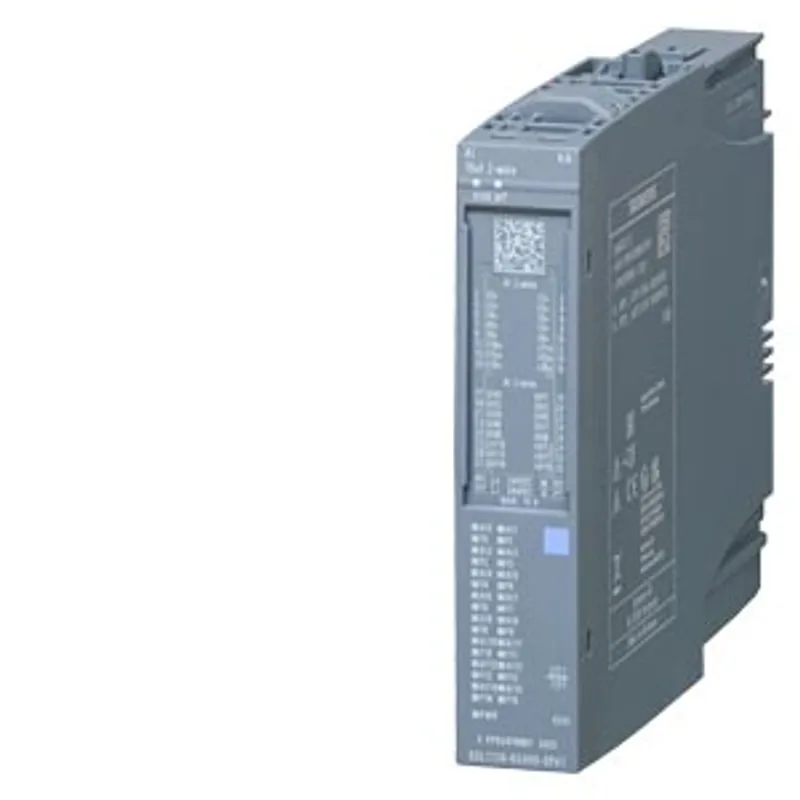

Siemens 6DL1134-6GH00-0PH1
SIMATIC ET 200SP HA, analog input module, AI 16XI 2-wire HA, suitable for terminal block, H1, P0
- MPN
- 6DL1134-6GH00-0PH1
- Category
- Analog I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

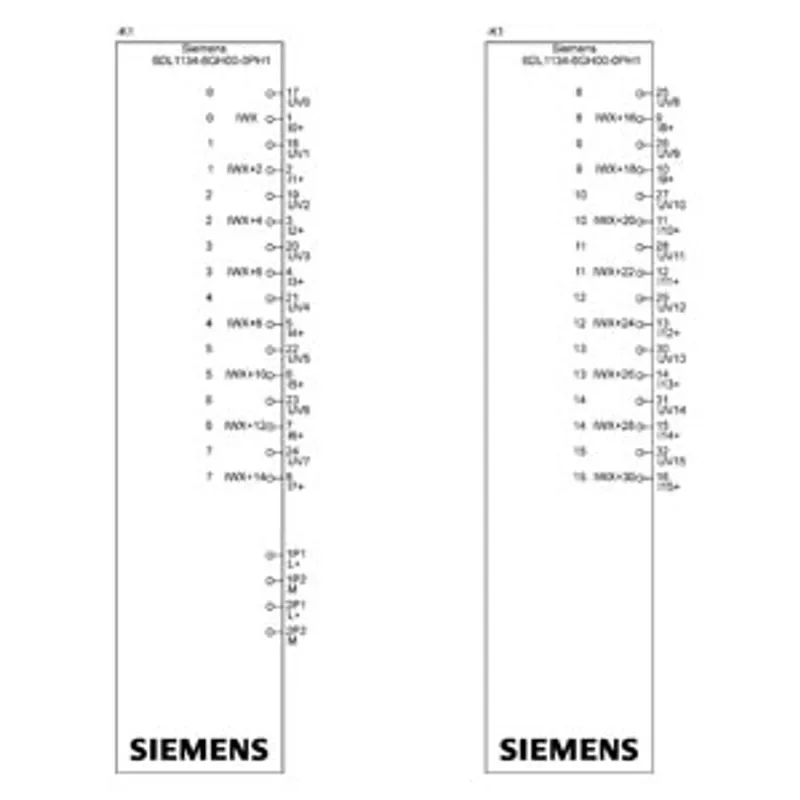

What is the Siemens 6DL1134-6GH00-0PH1?
SIMATIC ET 200SP HA, analog input module, AI 16XI 2-wire HA, suitable for terminal block, H1, P0, color code CC01, channel diagnostics
Specifications
General information
| Product type designation | AI 16xI 2-wire HA |
| Firmware version | V1.0 |
| Firmware version — FW update possible | Yes |
| Usable terminal block | type H1, N0, H0 (see system manual for details) |
| Color code for module-specific color-coded label | CC01 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V18 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 |
| Engineering with — PCS 7 configurable/integrated from version | V9.1 SP2 |
| Engineering with — PCS neo can be configured/integrated from version | V4.0 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.42 2023.01 |
| Operating mode — Oversampling | No |
| Operating mode — MSI | No |
| Redundancy — Redundancy capability | No |
CiR - Configuration in RUN
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | No |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption (rated value) | 350 mA |
Encoder supply
| Number of outputs | 16 |
| Output voltage (DC) | 24 V |
| Output voltage, min. | 19.2 V |
| Short-circuit protection | Yes |
| 24 V encoder supply — 24 V | Yes |
| 24 V encoder supply — Short-circuit protection | Yes; Per output, thermal |
| 24 V encoder supply — Output current per channel, max. | 46 mA |
| 24 V encoder supply — Output current per module, max. | 0.8 A |
Power loss
| Power loss, typ. | 0.6 W |
Address area
| Address space per module — Address space per module, max. | 34 byte; 32-byte inputs and 2 bytes for QI information |
| Address space per module — Inputs | 34 byte |
Analog inputs
| Number of analog inputs | 16 |
| Number of analog inputs — For current measurement | 16 |
| permissible input current for current input (destruction limit), max. | 30 mA |
| Cycle time (all channels), min. | 400 ms |
| Input ranges (rated values), currents — 0 to 20 mA | Yes; 16 bit incl. sign |
| Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA) | 250 Ω |
| Input ranges (rated values), currents — 4 mA to 20 mA | Yes; 16 bit incl. sign |
| Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA) | 250 Ω |
| Cable length — shielded, max. | 800 m |
| Cable length — unshielded, max. | 200 m |
Analog value generation for the inputs
| Measurement principle | integrating (Sigma-Delta) |
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 16 bit; 15 bit at 0 ... 10 mA and 60 Hz interference suppression |
| Integration and conversion time/resolution per channel — Integration time, parameterizable | Yes; channel by channel |
| Integration and conversion time/resolution per channel — Integration time (ms) | 16.6 / 20 / 100 ms |
| Smoothing of measured values — Parameterizable | Yes; none, weak, medium, strong, channel-by-channel |
Encoder
| Connection of signal encoders — for current measurement as 2-wire transducer | Yes |
Errors/accuracies
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.005 %/K |
| Crosstalk between the inputs, min. | 60 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| Operational error limit in overall temperature range — Current, relative to input range, (+/-) | 0.5 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-) | 0.3 % |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes |
| Alarms — Limit value alarm | No |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes; channel-by-channel, at 4 to 20 mA only |
| Diagnoses — short-circuit | No |
| Diagnoses — Overflow/Underflow | Yes; channel by channel |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — Between the channels and load voltage L+ | No |
| Potential separation channels — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 1 500 V DC/1 min, type test |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |

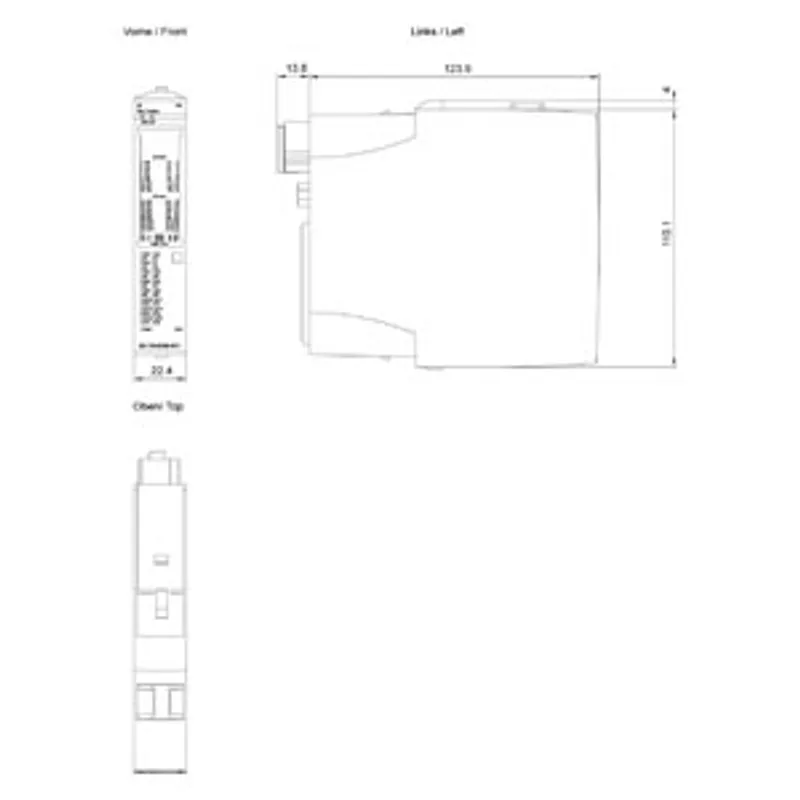

Dimensions
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
Weights
| Weight, approx. | 148 g |
