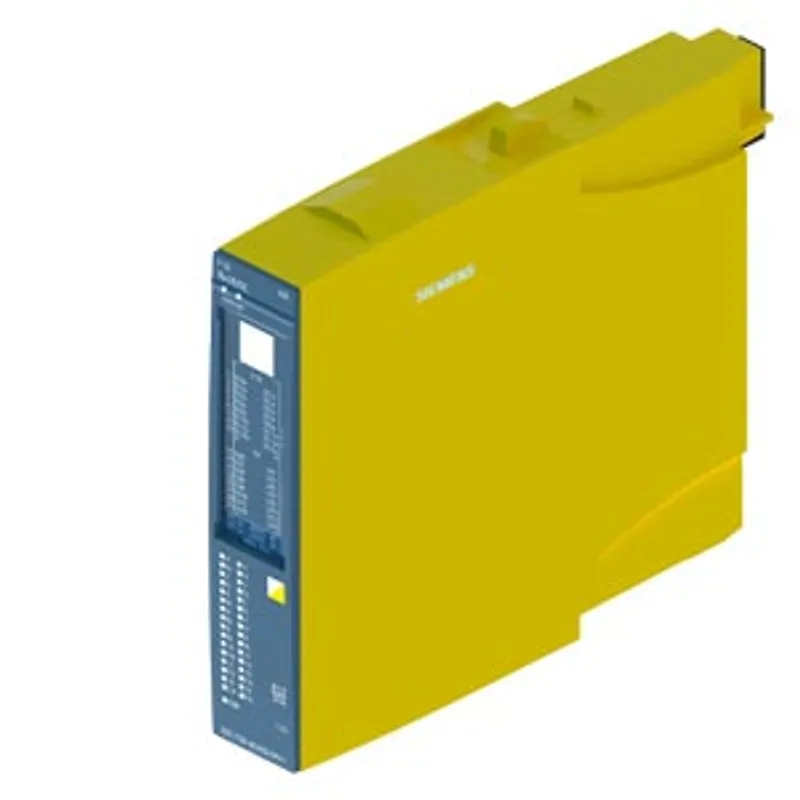

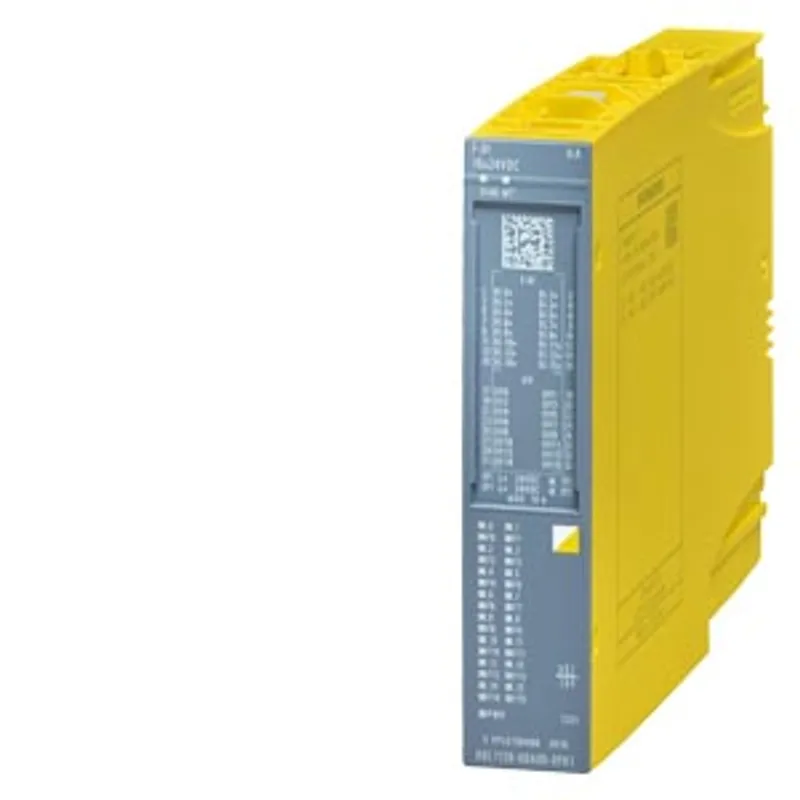

Siemens 6DL1136-6BA00-0PH1
SIMATIC ET 200SP HA, digital input module, safety-oriented F-DI 16X24VDC HA, SIL3 (IEC 61508)
- MPN
- 6DL1136-6BA00-0PH1
- Category
- Fail-safe I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1136-6BA00-0PH1?
SIMATIC ET 200SP HA, digital input module, safety-oriented F-DI 16X24VDC HA, SIL3 (IEC 61508), up to PL E (ISO 13849-1) suitable for terminal block H1, M1, color code CC01, channel diagnostics
Specifications
General information
| Product type designation | F-DI 16x24VDC HA |
| Firmware version | V1.0 |
| Firmware version — FW update possible | Yes |
| Usable terminal block | type H1, M1, N0, H0, M0 (for details see the system manual) |
| Color code for module-specific color-coded label | CC01 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V21 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 SP2 V9.0 SP3 (with S7 F Systems V6.3) |
| Engineering with — PCS 7 configurable/integrated from version | V9.0 SP3 (with S7 F Systems V6.3) |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.42 2023.01 |
| Operating mode — DI | Yes |
| Redundancy — Redundancy capability | Yes; With TB type M1 |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption (rated value) | 80 mA |
| Current consumption, max. | 150 mA |
Encoder supply
| Number of outputs | 16 |
| 24 V encoder supply — 24 V | Yes; Min. L+ (-1 V) |
| 24 V encoder supply — Short-circuit protection | Yes; electronic (response threshold 0.7 A to 1.5 A; for IO redundancy up to 3 A). Ensure sufficient cable cross-section to attain the response threshold. Depending on the cable cross-section used, there may be constraints regarding the usable length of cable |
| 24 V encoder supply — Output current per channel, max. | 0.5 A |
| 24 V encoder supply — Output current per module, max. | 8 A |
Power
| Power consumption from the backplane bus | 90 mW |
Power loss
| Power loss, typ. | 3.2 W; All channels equipped with internal encoder supply and switch contacts, at rated voltage and ambient temperature |
Address area
| Address space per module — Inputs | 9 byte |
| Address space per module — Outputs | 5 byte |
Hardware configuration
| Automatic encoding | Yes |
Digital inputs
| Number of digital inputs | 16 |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | Yes; P-reading |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Input characteristic curve in accordance with IEC 61131, type 2 | No |
| Input characteristic curve in accordance with IEC 61131, type 3 | No |
| Pulse extension | Yes |
| Pulse extension — Length | off, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s |
| Time stamp | Yes; Resolution 10 ms |
| Signal change flutter | Yes |
| Flutter observation window | Yes |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | -30 to +5 V |
| Input voltage — for signal "1" | +15 to +30 V |
| Input current — for signal "1", typ. | 2.5 mA |
| Input delay (for rated value of input voltage) — for standard inputs — parameterizable | Yes |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Encoder
| Connectable encoders — 2-wire sensor | Yes |
| Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Maintenance interrupt | Yes |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Monitoring the supply voltage | Yes; module-wise |
| Diagnoses — Monitoring the supply voltage — parameterizable | Yes |
| Diagnoses — Monitoring of encoder power supply | Yes; channel by channel |
| Diagnoses — Wire break | Yes; channel by channel, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 18 kOhm to 30 kOhm, typical 26 kOhm |
| Diagnoses — Short-circuit to ground | Yes; Encoder supply to M, channel by channel |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
| Potential separation channels — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 1 500 V DC/1 min, type test |
Standards, approvals, certificates
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | Up to PLe |
| Highest safety class achievable in safety mode — Category according to ISO 13849-1 | Cat. 4 |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 3.00E-05 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 2.00E-09 1/h |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |

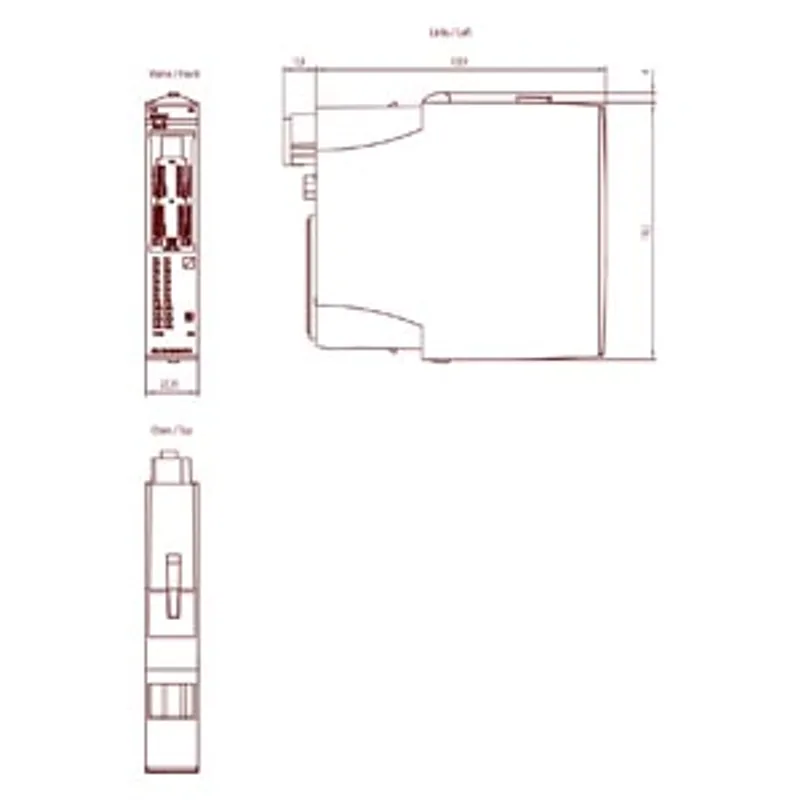

Dimensions
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
Weights
| Weight, approx. | 210 g |
