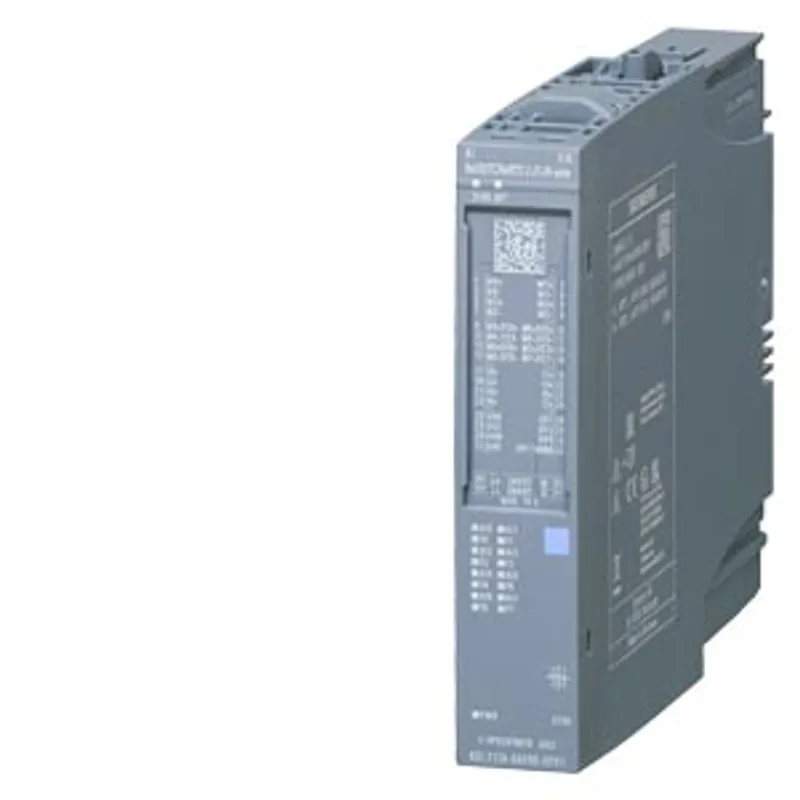

SIMATIC ET 200SP HA, analog input module, AI 8xU/I/TC/4xRTD 2-/3-/4-wire HA suitable for terminal block, H1

MPN: 6DL1134-6AF00-0PH1
Category: Analog I/O modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

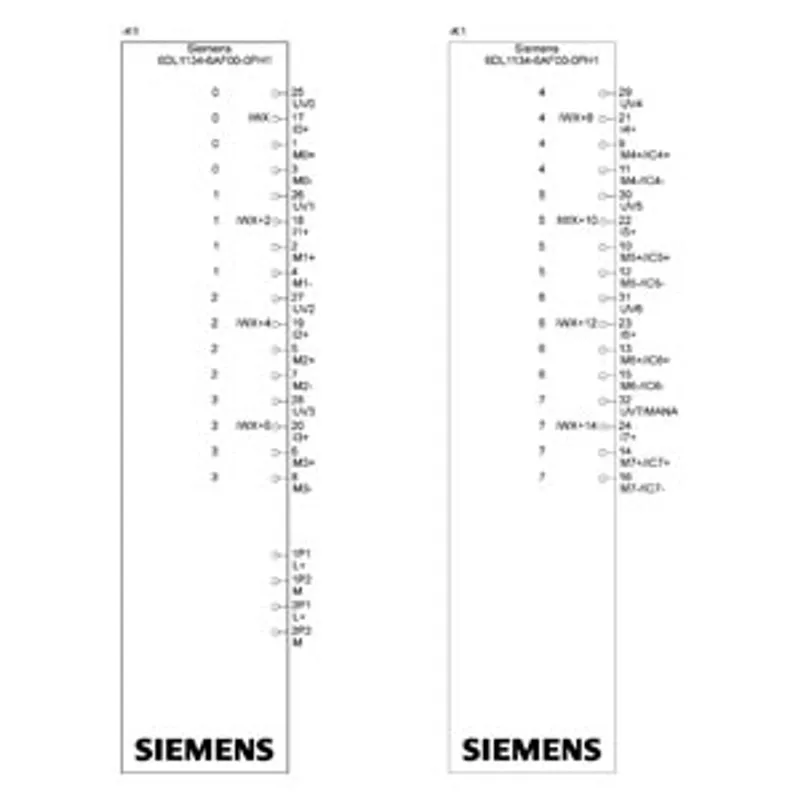

What is the Siemens 6DL1134-6AF00-0PH1?

SIMATIC ET 200SP HA, analog input module, AI 8xU/I/TC/4xRTD 2-/3-/4-wire HA suitable for terminal block, H1, N0, H0 color code CC00, channel diagnostics

Specifications

General information

Product type designation	AI 8xU/I/TC/4xRTD 2/3/4-wire HA
Firmware version	V1.0
Firmware version — FW update possible	Yes
Usable terminal block	type H1, N0, H0 (see system manual for details)
Color code for module-specific color-coded label	CC00
Product function — I&M data	Yes; I&M0 to I&M3
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V18
Engineering with — STEP 7 configurable/integrated from version	V5.6
Engineering with — PCS 7 configurable/integrated from version	V9.1 SP2
Engineering with — PCS neo can be configured/integrated from version	V4.0
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.42 2023.01
Redundancy — Redundancy capability	No

CiR - Configuration in RUN

Reparameterization possible in RUN

Yes

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption (rated value)

220 mA

Encoder supply

24 V encoder supply — 24 V	Yes
24 V encoder supply — Short-circuit protection	Yes; a max. of 1 channel may be operated in short-circuit
24 V encoder supply — Output current per channel, max.	0.032 A; max. 1 channel

Power loss

Power loss, typ.

1.95 W

Address area

Address space per module — Address space per module, max.

32 byte; + 2 bytes for QI information

Analog inputs

Number of analog inputs — For current measurement	8
Number of analog inputs — For voltage measurement	8
Number of analog inputs — For resistance/resistance thermometer measurement	4
Number of analog inputs — For thermocouple measurement	8
permissible input voltage for voltage input (destruction limit), max.	24 V
permissible input current for current input (destruction limit), max.	40 mA
Constant measurement current for resistance-type transmitter, typ.	1.25 mA
Technical unit for temperature measurement adjustable	Yes; °C/°F/K
Input ranges (rated values), voltages — 0 to +10 V	Yes; 15 bit
Input ranges (rated values), voltages — 0 to +10 V — Input resistance (0 to 10 V)	100 kΩ
Input ranges (rated values), voltages — 1 V to 5 V	Yes; 15 bit
Input ranges (rated values), voltages — 1 V to 5 V — Input resistance (1 V to 5 V)	100 kΩ
Input ranges (rated values), voltages — 1 V to +1 V	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 1 V to +1 V — Input resistance (-1 V to +1 V)	10 MΩ
Input ranges (rated values), voltages — 10 V to +10 V	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 10 V to +10 V — Input resistance (-10 V to +10 V)	100 kΩ
Input ranges (rated values), voltages — 2.5 V to +2.5 V	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 2.5 V to +2.5 V — Input resistance (-2.5 V to +2.5 V)	100 kΩ
Input ranges (rated values), voltages — 250 mV to +250 mV	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 250 mV to +250 mV — Input resistance (-250 mV to +250 mV)	10 MΩ
Input ranges (rated values), voltages — 5 V to +5 V	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 5 V to +5 V — Input resistance (-5 V to +5 V)	100 kΩ
Input ranges (rated values), voltages — 50 mV to +50 mV	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 50 mV to +50 mV — Input resistance (-50 mV to +50 mV)	10 MΩ
Input ranges (rated values), voltages — 500 mV to +500 mV	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 500 mV to +500 mV — Input resistance (-500 mV to +500 mV)	10 MΩ
Input ranges (rated values), voltages — 80 mV to +80 mV	Yes; 16 bit incl. sign
Input ranges (rated values), voltages — 80 mV to +80 mV — Input resistance (-80 mV to +80 mV)	10 MΩ
Input ranges (rated values), currents — 0 to 20 mA	Yes
Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA)	50 Ω
Input ranges (rated values), currents — 20 mA to +20 mA	Yes
Input ranges (rated values), currents — 20 mA to +20 mA — Input resistance (-20 mA to +20 mA)	50 Ω
Input ranges (rated values), currents — 4 mA to 20 mA	Yes
Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA)	50 Ω
Input ranges (rated values), thermocouples — type B	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — type B — Input resistance (Type B)	10 MΩ
Input ranges (rated values), thermocouples — type C	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — type C — Input resistance (Type C)	10 MΩ
Input ranges (rated values), thermocouples — Type E	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type E — Input resistance (Type E)	10 MΩ
Input ranges (rated values), thermocouples — Type J	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type J — Input resistance (type J)	10 MΩ
Input ranges (rated values), thermocouples — Type K	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type K — Input resistance (Type K)	10 MΩ
Input ranges (rated values), thermocouples — Type L	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type L — Input resistance (Type L)	10 MΩ
Input ranges (rated values), thermocouples — Type N	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type N — Input resistance (Type N)	10 MΩ
Input ranges (rated values), thermocouples — Type R	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type R — Input resistance (Type R)	10 MΩ
Input ranges (rated values), thermocouples — Type S	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type S — Input resistance (Type S)	10 MΩ
Input ranges (rated values), thermocouples — Type T	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type T — Input resistance (Type T)	10 MΩ
Input ranges (rated values), thermocouples — Type U	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type U — Input resistance (Type U)	10 MΩ
Input ranges (rated values), thermocouples — Type TXK/TXK(L) to GOST	Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples — Type TXK/TXK(L) to GOST — Input resistance (Type TXK/TXK(L) to GOST)	10 MΩ
Input ranges (rated values), resistance thermometer — Cu 10	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Cu 10 — Input resistance (Cu 10)	10 MΩ
Input ranges (rated values), resistance thermometer — Cu 50	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Cu 50 — Input resistance (Cu 50)	10 MΩ
Input ranges (rated values), resistance thermometer — Cu 100	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Cu 100 — Input resistance (Cu 100)	10 MΩ
Input ranges (rated values), resistance thermometer — Ni 100	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Ni 100 — Input resistance (Ni 100)	10 MΩ
Input ranges (rated values), resistance thermometer — Ni 1000	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Ni 1000 — Input resistance (Ni 1000)	10 MΩ
Input ranges (rated values), resistance thermometer — LG-Ni 1000	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — LG-Ni 1000 — Input resistance (LG-Ni 1000)	10 MΩ
Input ranges (rated values), resistance thermometer — Ni 120	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Ni 120 — Input resistance (Ni 120)	10 MΩ
Input ranges (rated values), resistance thermometer — Ni 200	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Ni 200 — Input resistance (Ni 200)	10 MΩ
Input ranges (rated values), resistance thermometer — Ni 500	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Ni 500 — Input resistance (Ni 500)	10 MΩ
Input ranges (rated values), resistance thermometer — Pt 100	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Pt 100 — Input resistance (Pt 100)	10 MΩ
Input ranges (rated values), resistance thermometer — Pt 1000	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Pt 1000 — Input resistance (Pt 1000)	10 MΩ
Input ranges (rated values), resistance thermometer — Pt 200	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Pt 200 — Input resistance (Pt 200)	10 MΩ
Input ranges (rated values), resistance thermometer — Pt 500	Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer — Pt 500 — Input resistance (Pt 500)	10 MΩ
Input ranges (rated values), resistors — 0 to 150 ohms	Yes; 15 bit
Input ranges (rated values), resistors — 0 to 150 ohms — Input resistance (0 to 150 ohms)	10 MΩ
Input ranges (rated values), resistors — 0 to 300 ohms	Yes; 15 bit
Input ranges (rated values), resistors — 0 to 300 ohms — Input resistance (0 to 300 ohms)	10 MΩ
Input ranges (rated values), resistors — 0 to 600 ohms	Yes; 15 bit
Input ranges (rated values), resistors — 0 to 600 ohms — Input resistance (0 to 600 ohms)	10 MΩ
Input ranges (rated values), resistors — 0 to 3000 ohms	Yes; 15 bit
Input ranges (rated values), resistors — 0 to 3000 ohms — Input resistance (0 to 3000 ohms)	10 MΩ
Input ranges (rated values), resistors — 0 to 6000 ohms	Yes; 15 bit
Input ranges (rated values), resistors — 0 to 6000 ohms — Input resistance (0 to 6000 ohms)	10 MΩ
Input ranges (rated values), resistors — PTC	Yes; 15 bit
Input ranges (rated values), resistors — PTC — Input resistance (PTC)	10 MΩ
Thermocouple (TC) — Temperature compensation — Parameterizable	Yes
Thermocouple (TC) — Temperature compensation — external temperature compensation via RTD	Yes
Thermocouple (TC) — Temperature compensation — Reference channel of the module	Yes; channel 7
Thermocouple (TC) — Temperature compensation — internal comparison point	Yes; with terminal block H1
Thermocouple (TC) — Temperature compensation — Reference channel of the group	Yes
Thermocouple (TC) — Temperature compensation — Number of reference channel groups	4
Thermocouple (TC) — Temperature compensation — fixed reference temperature	Yes
Cable length — shielded, max.	thermocouples: shielded cable length max. 200 m, voltages: shielded cable length max. 600 m, loop resistance max 8 kOhm; measuring ranges RTD: shielded cable length max. 600 m, cable resistance (single) max. 75 ohm, current measurement: shielded cable length max. 800 m
Cable length — unshielded, max.	200 m; Only applies when connecting current sensors

Analog value generation for the inputs

Measurement principle	integrating (Sigma-Delta)
Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.	16 bit
Integration and conversion time/resolution per channel — Integration time, parameterizable	Yes; Channel-by-channel, results from the selected interference frequency suppression
Integration and conversion time/resolution per channel — Interference voltage suppression for interference frequency f1 in Hz	10 / 50 / 60 / 400 Hz
Integration and conversion time/resolution per channel — Conversion time (per channel)	Channel-by-channel, results from the selected interference frequency suppression
Smoothing of measured values — Parameterizable	Yes; none, weak, medium, strong, channel-by-channel

Encoder

Connection of signal encoders — for voltage measurement	Yes
Connection of signal encoders — for current measurement as 2-wire transducer	Yes
Connection of signal encoders — for current measurement as 2-wire transducer — Burden of 2-wire transmitter, max.	820 Ω
Connection of signal encoders — for current measurement as 4-wire transducer	Yes
Connection of signal encoders — for resistance measurement with two-wire connection	Yes; all measuring ranges incl. PTC
Connection of signal encoders — for resistance measurement with three-wire connection	Yes; All measuring ranges except PTC; internal compensation of the cable resistances
Connection of signal encoders — for resistance measurement with four-wire connection	Yes; All measuring ranges except PTC

Errors/accuracies

Linearity error (relative to input range), (+/-)	0.01 %; ±0.1 % for resistance thermometers and resistance
Temperature error (relative to input range), (+/-)	0.002 %/K; ±0.005 % / K at thermocouple
Crosstalk between the inputs, min.	50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)	0.05 %
Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)	0.3 %
Operational error limit in overall temperature range — Current, relative to input range, (+/-)	0.3 %
Operational error limit in overall temperature range — Resistance, relative to input range, (+/-)	0.3 %
Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-)	0.1 %
Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)	0.1 %
Basic error limit (operational limit at 25 °C) — Resistance, relative to input range, (+/-)	0.1 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Series mode interference (peak value of interference < rated value of input range), min.	60 dB
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max.	15 V
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode interference, min.	90 dB

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Alarms — Limit value alarm	Yes; two upper and two lower limit values in each case
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	Yes; channel-by-channel current 4 ... 20 mA, R and RTD
Diagnoses — short-circuit	Yes; channel by channel for current (2-wire)
Diagnoses — Overflow/Underflow	Yes; channel by channel
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	Yes; red LED
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — Between the channels and load voltage L+	Yes

Permissible potential difference

between the inputs (UCM)

15 V DC/10 V AC

Isolation

Isolation tested with

1 500 V DC/1 min, type test

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C
Ambient temperature during operation — horizontal installation, max.	70 °C
Ambient temperature during operation — vertical installation, min.	-40 °C
Ambient temperature during operation — vertical installation, max.	60 °C

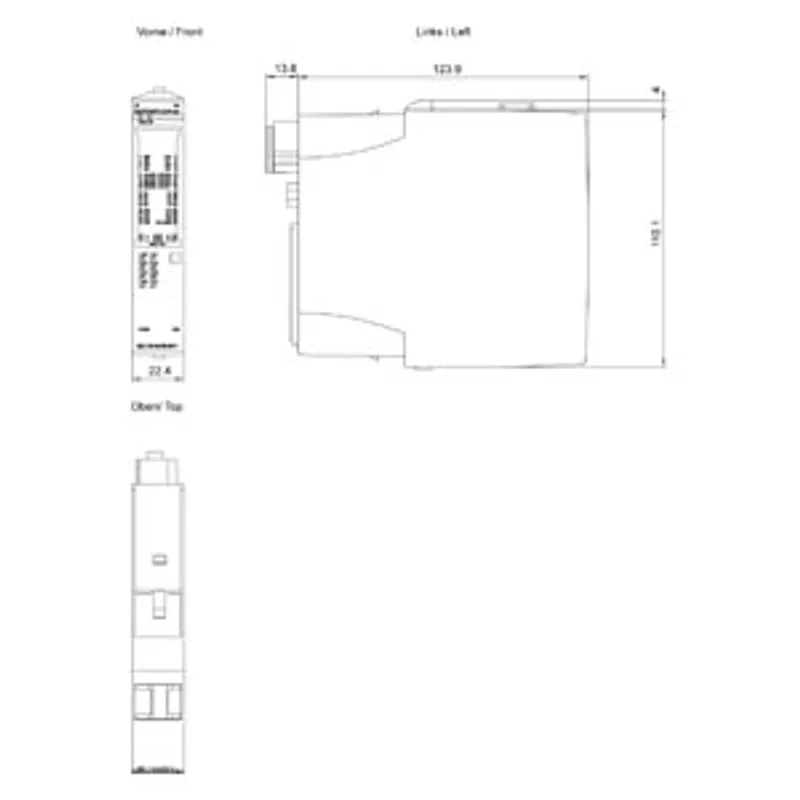

Dimensions

Width	22.5 mm
Height	115 mm
Depth	138 mm

Weights

Weight, approx.

150 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6DL1134-6AF00-0PH1PDF

6DL1134-6AF00-0PH1: frequently asked questions

When can 6DL1134-6AF00-0PH1 be shipped?

6DL1134-6AF00-0PH1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6DL1134-6AF00-0PH1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6DL1134-6AF00-0PH1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6DL1134-6AF00-0PH1, subject to availability and destination.
