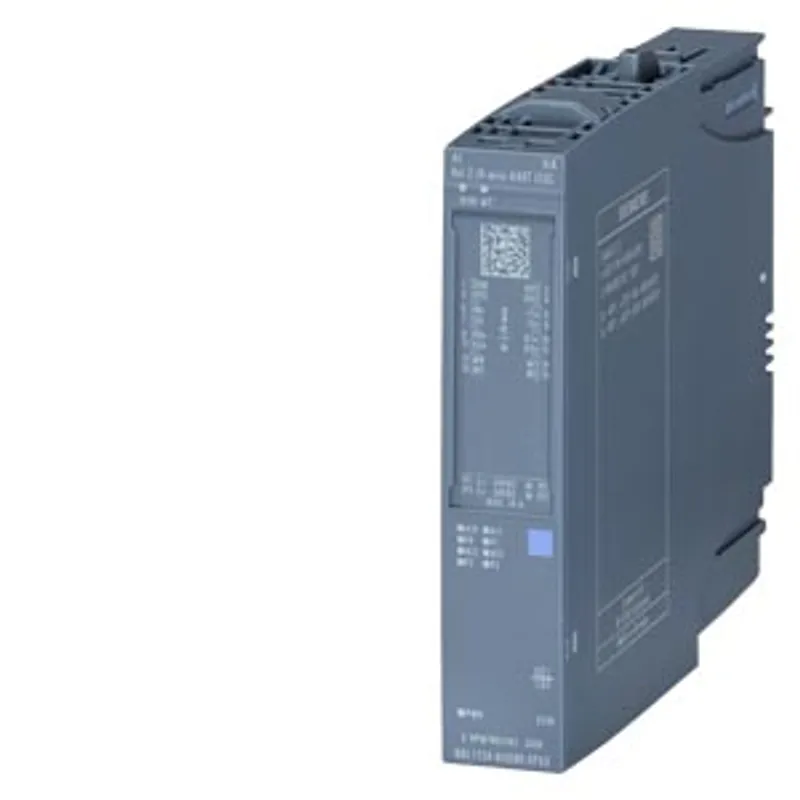

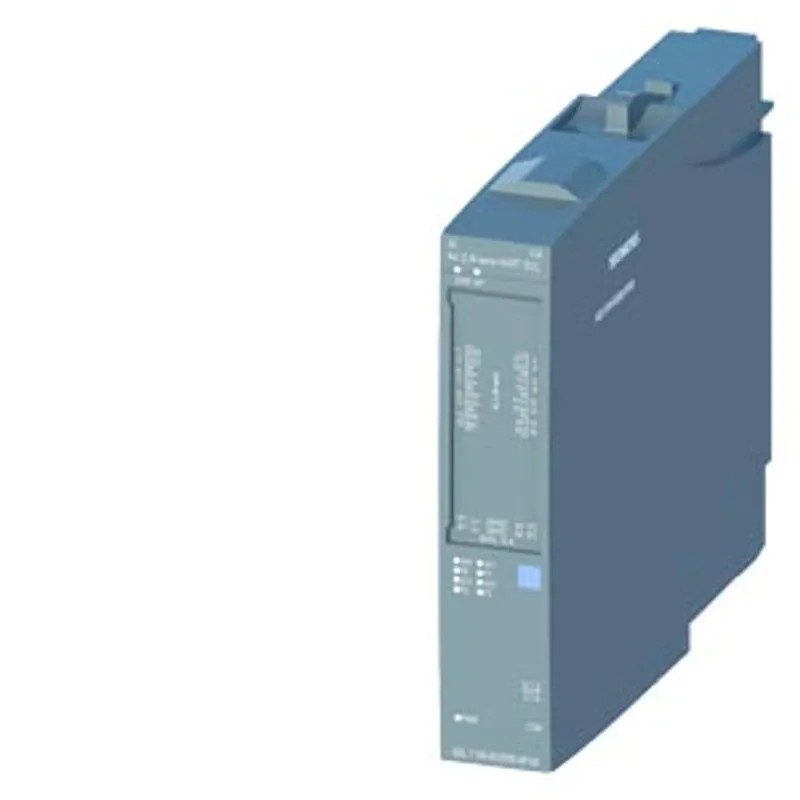

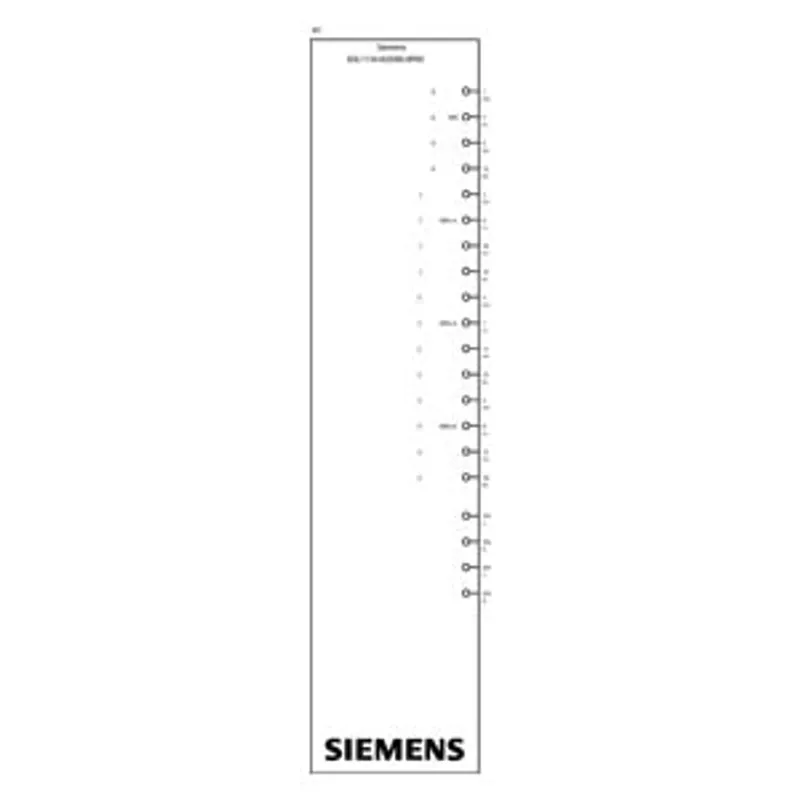

Siemens 6DL1134-6UD00-0PK0
SIMATIC ET 200SP HA, analog HART input module, AI 4XI 2-/4-Wire HART isol, suitable for terminal block K0, L0
- MPN
- 6DL1134-6UD00-0PK0
- Category
- Analog I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1134-6UD00-0PK0?
SIMATIC ET 200SP HA, analog HART input module, AI 4XI 2-/4-Wire HART isol, suitable for terminal block K0, L0, color code CC01, channel diagnostics, 16-bit, +/-0.1%,
Specifications
General information
| Product type designation | AI 4xI 2-/4-wire HART ISOL HA |
| Firmware version | V1.0 |
| Firmware version — FW update possible | Yes; The firmware update can take more than 5 minutes. |
| Usable terminal block | type K0, L0, S0, R0 (see system manual for details) |
| Color code for module-specific color-coded label | CC40 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V17 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 |
| Engineering with — PCS 7 configurable/integrated from version | V9.1 |
| Engineering with — PCS neo can be configured/integrated from version | V3.0 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.35 |
| Redundancy — Redundancy capability | Yes; see the system manual |
CiR - Configuration in RUN
| Reparameterization possible in RUN | Yes |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption (rated value) | 184 mA; sensor supply without loads |
| Current consumption, max. | 234 mA; at 1.5 kOhm load on sensor supply |
Encoder supply
| Number of outputs | 4 |
| Output voltage (DC) | 24 V |
| Output voltage, min. | 19.2 V |
| Short-circuit protection | Yes; Electronic |
| Output current — Rated value | 20 mA |
| Output current — permissible range, lower limit | 0 mA |
| Output current — permissible range, upper limit | 23.52 mA |
| 24 V encoder supply — 24 V | Yes |
| 24 V encoder supply — Short-circuit protection | Yes |
| 24 V encoder supply — Output current per channel, max. | 23.5 mA |
| 24 V encoder supply — Output current per module, max. | 88 mA |
Power loss
| Power loss, typ. | 1.8 W |
Address area
| Address space per module — Address space per module, max. | 9 byte; 8 bytes for inputs and 1 byte for QI information |
| Address space per module — Address space per module with HART, max. | 29 byte; 8 bytes for inputs, 1 byte for QI information, 20 bytes for HART information |
| Address space per module — Address space per module with MultiHART, max. | 16 byte; 8 bytes for inputs, 1 byte for QI information, 6 bytes for HART information, 1 byte for HART command |
Analog inputs
| Number of analog inputs | 4 |
| Number of analog inputs — For current measurement | 4 |
| permissible input current for current input (destruction limit), max. | 30 mA |
| Input ranges (rated values), currents — 0 to 20 mA | Yes; 16 bit incl. sign |
| Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA) | 250 Ω |
| Input ranges (rated values), currents — 4 mA to 20 mA | Yes; 16 bit incl. sign |
| Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA) | 250 Ω |
| Cable length — shielded, max. | 800 m; with unshielded cables up to 800 m, remember that (external) EMC loads can cause incorrect measured values |
Analog value generation for the inputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 16 bit; 14 bit at 60 Hz (0 ... 10 mA), 16 bit at 10 Hz, 15 bit at 50 Hz and 15 bit at 60 Hz interference suppression |
| Smoothing of measured values — Parameterizable | Yes; none, weak, medium, strong, channel-by-channel |
Encoder
| Connection of signal encoders — for current measurement as 2-wire transducer | Yes |
Errors/accuracies
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.005 %/K |
| Crosstalk between the inputs, min. | 60 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| Operational error limit in overall temperature range — Current, relative to input range, (+/-) | 0.5 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-) | 0.1 % |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Limit value alarm | Yes; two upper and two lower limit values in each case |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes; channel by channel |
| Diagnoses — short-circuit | Yes; Channel-by-channel, short-circuit of the encoder supply to ground or of an input to the encoder supply |
| Diagnoses — Overflow/Underflow | Yes; channel by channel |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | Yes; 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB) |
| Potential separation channels — between the channels and backplane bus | Yes; 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB) |
| Potential separation channels — between the channels and the power supply of the electronics | Yes; 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB) |
Permissible potential difference
| between the channels | 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB) |
| between the channels and supply voltage | 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB) |
| between the channels and backplane bus | 125 V AC / 150 V DC (when using terminal blocks with push-in terminals); SELV/PELV (when using terminal blocks with D-SUB) |
Isolation
| tested with — between backplane bus and load voltage | 3 000 V DC/1 min, type test |
| tested with — between the channels and load voltage | between the channels 2 100 V DC/1 min, type test (when using terminal blocks with push-in terminals); 1 200 V DC/1 min, type test (when using terminal blocks with D-SUB) |
| tested with — between the channels and backplane bus | 3 000 V DC/1 min, type test |
| tested with — Between channels | between the channels 4 200 V DC/1 min, type test (when using terminal blocks with push-in terminals); 1 200 V DC/1 min, type test (when using terminal blocks with D-SUB) |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 70 °C |

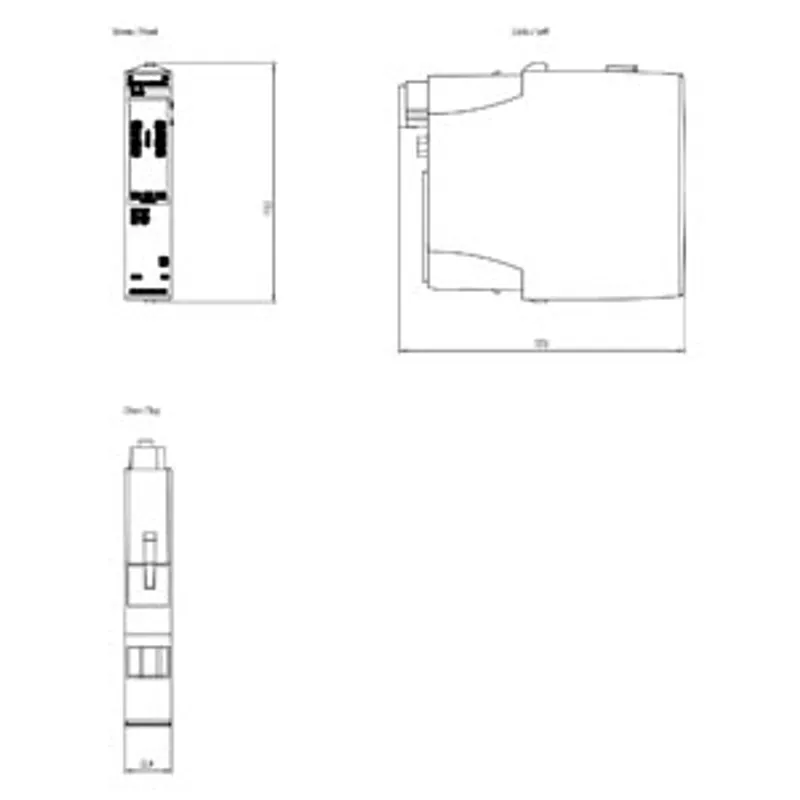

Dimensions
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
Weights
| Weight, approx. | 163 g |
