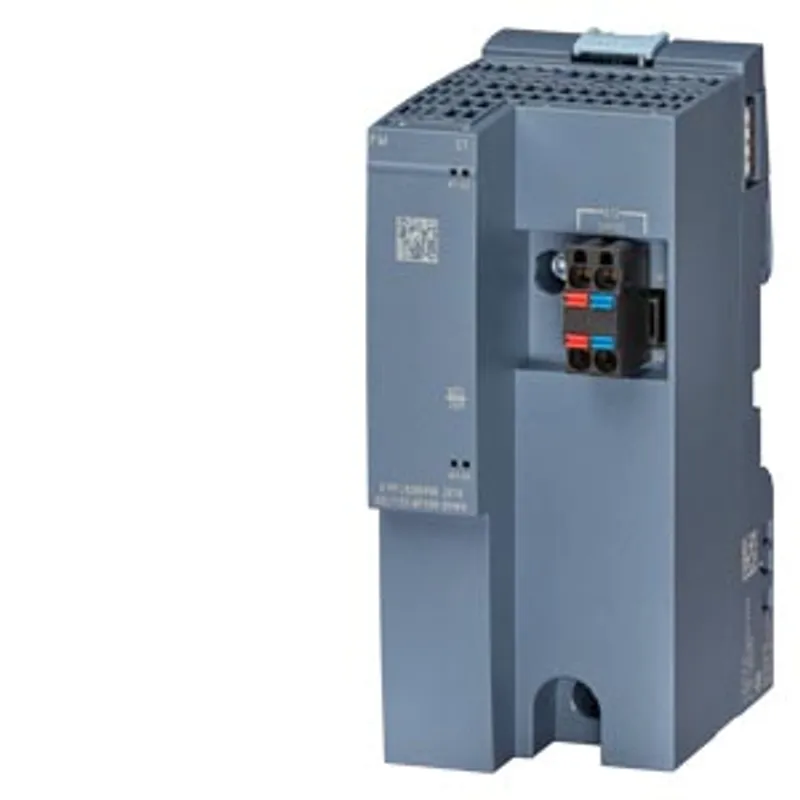

Siemens 6DL1133-6PX00-0HW0 — photo 1 of 5

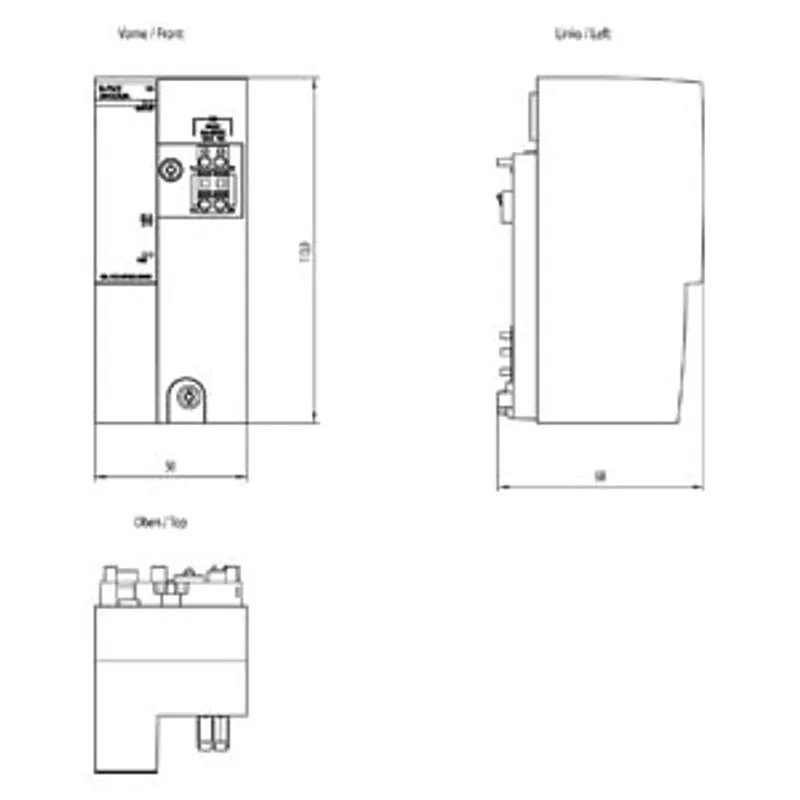

Siemens 6DL1133-6PX00-0HW0 — photo 2 of 5

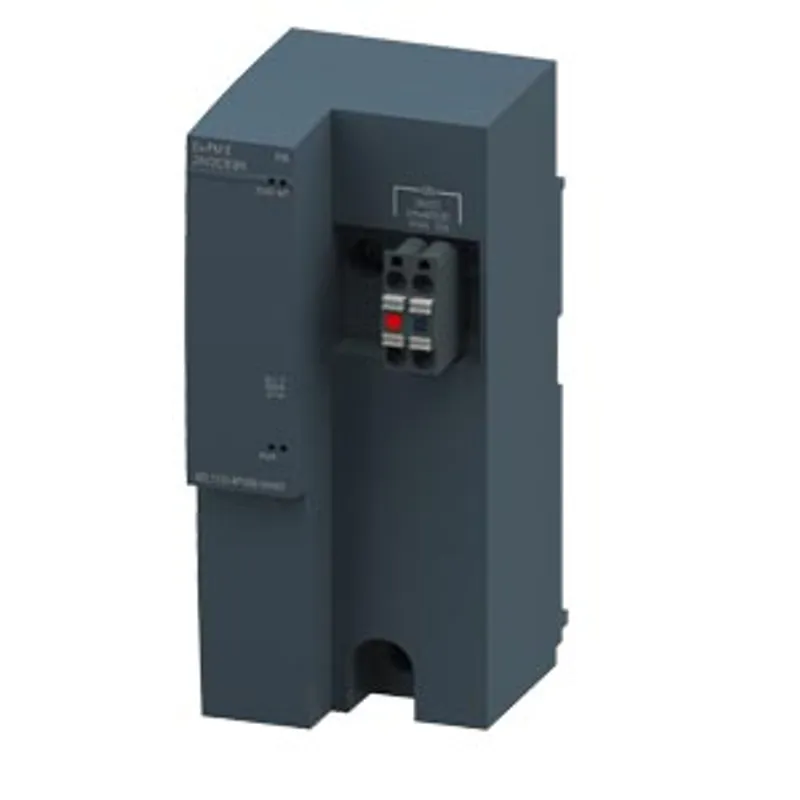

Siemens 6DL1133-6PX00-0HW0 — photo 3 of 5

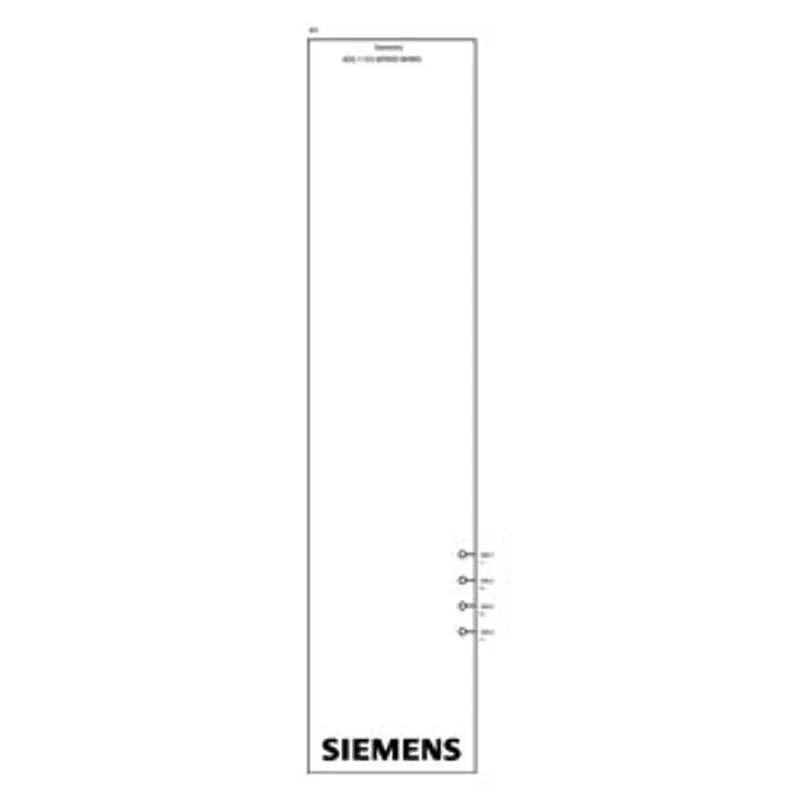

Siemens 6DL1133-6PX00-0HW0 — photo 4 of 5

Available on request

Siemens 6DL1133-6PX00-0HW0

Name: Siemens 6DL1133-6PX00-0HW0
Brand: Siemens
SKU: 6DL1133-6PX00-0HW0

MPN: 6DL1133-6PX00-0HW0 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Ex I/O modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.3 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 6DL1133-6PX00-0HW0 be shipped?

6DL1133-6PX00-0HW0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6DL1133-6PX00-0HW0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6DL1133-6PX00-0HW0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6DL1133-6PX00-0HW0, subject to availability and destination.

SIMATIC ET 200SP HA, ET 200SP, Power module Ex-PM E, 24V 0.8A, WxH: 50mm x 117mm, suitable for BaseUnit type W0

Specifications

General information

Product type designation	Ex-PM-E
usable BaseUnits	BU type W0
Product function — I&M data	Yes; Asset data

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.	1.4 A
from load voltage L+ (without load), max.	50 mA

Output voltage

Rated value (DC)	24 V
Overvoltage protection	Yes

Output current

horizontal installation — up to 60 °C, max.	0.8 A
horizontal installation — up to 70 °C, max.	0.6 A
vertical installation — up to 50 °C, max.	0.8 A
vertical installation — up to 60 °C, max.	0.6 A

Power

Power consumption from the backplane bus

100 mW

Power loss

Power loss, typ.

4.8 W

Interrupts/diagnostics/status information

Diagnostics function	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Missing load voltage	Yes
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Ex(i) characteristics

Module for Ex(i) protection	Yes
maximum values for connecting terminals for gas group IIC — Um (voltage at non-intrinsically safe connecting terminals), max.	60 V; power supply and backplane bus

Potential separation

primary/secondary

Yes

Isolation

Isolation tested with

further information on insulation can be found in the "ET 200SP HA / ET 200SP modules for devices in hazardous areas” System Manual

Ambient conditions

Ambient temperature during operation — min.	-40 °C
Ambient temperature during operation — max.	70 °C; with derating
Altitude during operation relating to sea level — Installation altitude above sea level, max.	2 000 m
