Analog I/O modules Parts
Compare Analog I/O modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | Color code for module-specific color-coded label | Current consumption (rated value) | 24 V encoder supply — Output current per channel, max. | Power loss, typ. |
|---|---|---|---|---|---|
| 6DL1134-6GH00-0PH1 | AI 16xI 2-wire HA | CC01 | 350 mA | 46 mA | 0.6 W |

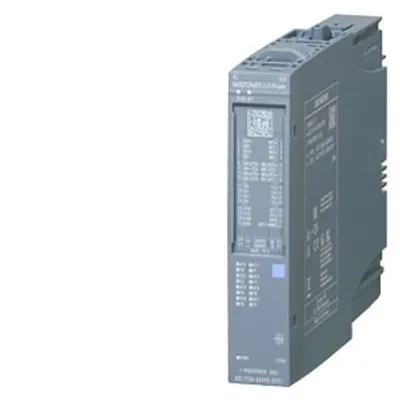

| 6DL1134-6AF00-0PH1 | AI 8xU/I/TC/4xRTD 2/3/4-wire HA | CC00 | 220 mA | 0.032 A; max. 1 channel | 1.95 W |

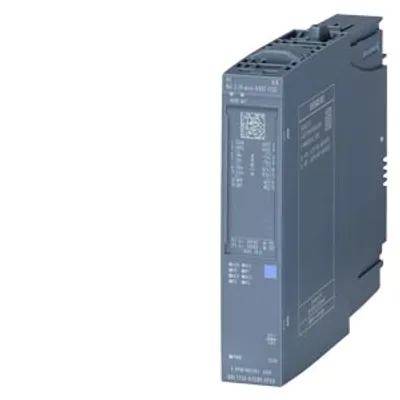

| 6DL1134-6UD00-0PK0 | AI 4xI 2-/4-wire HART ISOL HA | CC40 | 184 mA; sensor supply without loads | 23.5 mA | 1.8 W |
Common to all listed parts
| Firmware version | V1.0 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 |
| Reparameterization possible in RUN | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
