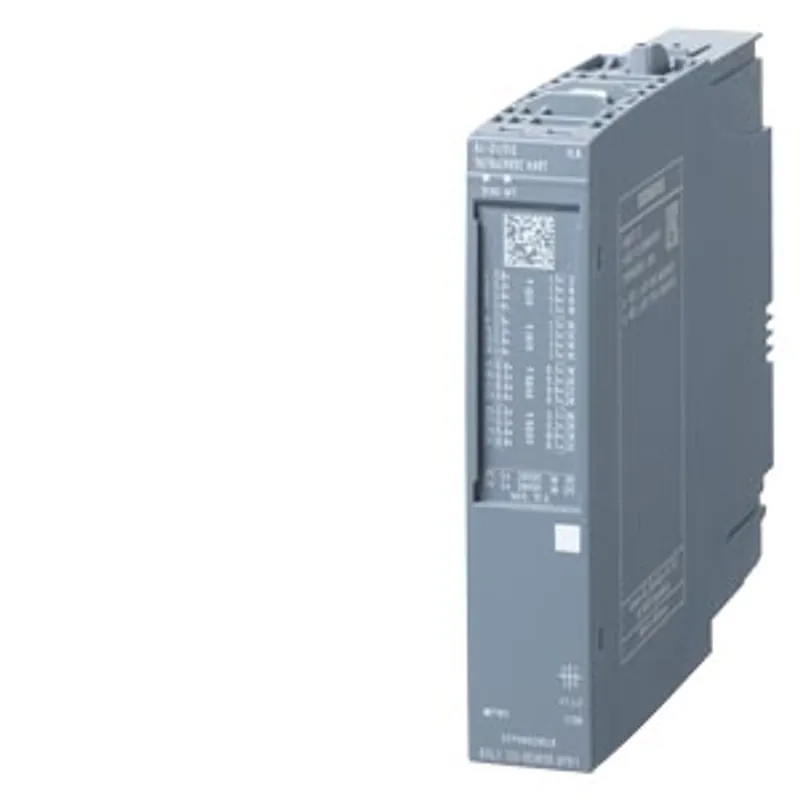

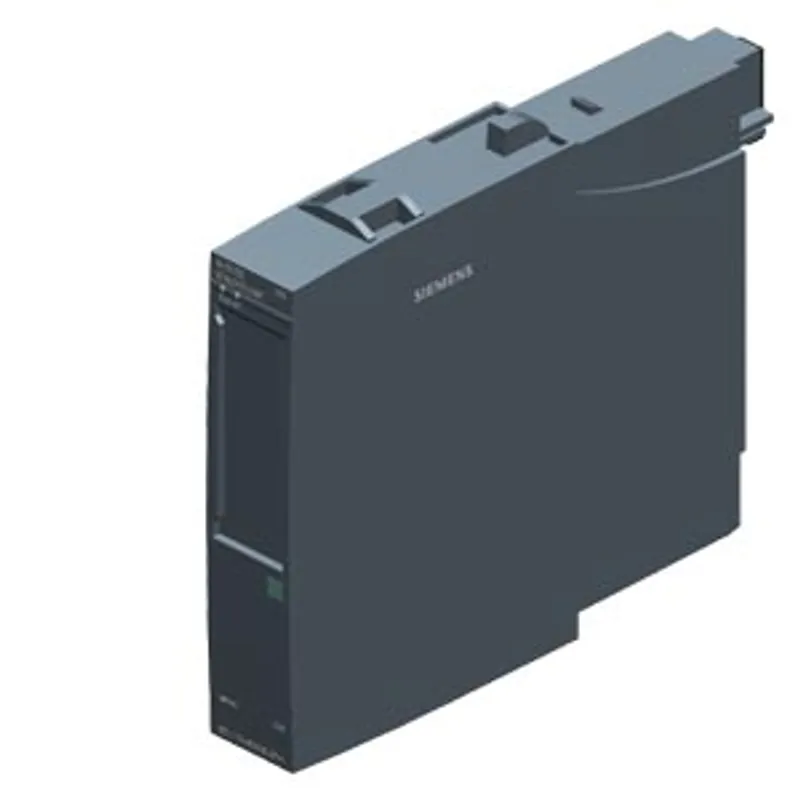

Siemens 6DL1133-6EW00-0PH1

SIMATIC ET 200SP HA, configurable I/O module, AI-DI16/DQ16X24VDC HART, suitable for terminal block H1, M1

MPN: 6DL1133-6EW00-0PH1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6DL1133-6EW00-0PH1?

SIMATIC ET 200SP HA, configurable I/O module, AI-DI16/DQ16X24VDC HART, suitable for terminal block H1, M1, color code CC00, channel diagnostics, 16-bit, +/-0.1%,

Specifications

General information

Product type designation	AI-DI 16/DQ 16x24VDC HART HA
Firmware version	V1.1
Firmware version — FW update possible	Yes; The firmware update can take more than 5 minutes.
Usable terminal block	type H1, M1, N0, H0, M0 (for details see the system manual)
Color code for module-specific color-coded label	CC00
Product function — I&M data	Yes; I&M0 to I&M3
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V16
Engineering with — STEP 7 configurable/integrated from version	V5.6
Engineering with — PCS 7 configurable/integrated from version	V9.0
Engineering with — PCS neo can be configured/integrated from version	V3.0
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode — AI	Yes
Operating mode — AQ	No
Operating mode — HART	Yes
Operating mode — DI	Yes
Operating mode — Counter	Yes
Operating mode — DQ	Yes
Operating mode — DQ with energy-saving function	No
Operating mode — PWM	No
Operating mode — Oversampling	No
Operating mode — MSI	No
Operating mode — MSO	No
Redundancy — Redundancy capability	Yes; With TB type M1

CiR - Configuration in RUN

Reparameterization possible in RUN

Yes

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption (rated value)	80 mA; without sensor supply
Current consumption, max.	90 mA; without sensor supply

Encoder supply

Number of outputs	16
Output voltage, min.	18.2 V
Short-circuit protection	Yes; per channel, electronic
24 V encoder supply — 24 V	Yes
24 V encoder supply — Short-circuit protection	Yes; Electronic (response threshold 0.7 A to 1.5 A)
24 V encoder supply — Output current per channel, max.	0.5 A
24 V encoder supply — Output current per module, max.	2 A

Power loss

Power loss, typ.

4.5 W; without sensor supply

Address area

Address space per module — Address space per module in mixed operation, max.	42 byte; 34 bytes for inputs, 2 bytes for outputs and 6 bytes for QI information
Address space per module — Address space per module in mixed operation with HART, max.	82 byte; 34-byte inputs, 2-byte outputs, 40 bytes for HART secondary variables, and 6 bytes for QI information
Address space per module — Address space per module in mixed operation with multiHART, max.	70 byte; 34-byte inputs, 2-byte outputs, 24-byte HART inputs, 4-byte HART outputs, and 6 bytes for QI information
Address space per module — Address space per module in purely digital operation, max.	26 byte; 2 bytes for inputs, 2 bytes for outputs, 18 bytes for high-precision time stamping and 4 bytes for QI information.
Address space per module — Address space per module in purely digital operation with counter/frequency measurement, max.	88 byte; 2 bytes for inputs, 2 bytes for outputs, 40 bytes for counter input data, 40 bytes for counter output data and 4 bytes for QI information.

Digital inputs

Number of digital inputs	16
Digital inputs, parameterizable	Yes
Sourcing/sinking input	Yes; P-reading
Input characteristic curve in accordance with IEC 61131, type 1	Yes
Input characteristic curve in accordance with IEC 61131, type 2	No
Input characteristic curve in accordance with IEC 61131, type 3	Yes
Pulse extension	Yes; off, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s
Time stamp	Yes; Resolution 10 ms
Time stamp (with precision of 1 ms)	Yes; Resolution 1ms
Digital input functions, parameterizable — Gate start/stop	Yes; Partner channel of n+8 counter
Digital input functions, parameterizable — Freely usable digital input	Yes; Parameterizable input filter
Digital input functions, parameterizable — Counter	Yes; Incl. frequency measurement
Digital input functions, parameterizable — Counter — Number, max.	8; Counter channel n=0 ... 7
Digital input functions, parameterizable — Counter — Counting frequency, max.	5 kHz
Digital input functions, parameterizable — Counter — Counting width	32 bit; Without sign
Digital input functions, parameterizable — Counter — Counting direction up/down	Yes; Up
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-30 to +5 V
Input voltage — for signal "1"	+11 to +30V
Input current — for signal "1", typ.	2.5 mA
Input delay (for rated value of input voltage) — for standard inputs — parameterizable	Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Digital outputs

Number of digital outputs	16
Current-sinking	No
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
Short-circuit protection	Yes; Response threshold 0.7 A to 1.3 A
Open-circuit detection	Yes
Overload protection	Yes
Limitation of inductive shutdown voltage to	L+ -(37 to 41V)
Controlling a digital input	Yes
Switching capacity of the outputs — with resistive load, max.	0.5 A
Switching capacity of the outputs — on lamp load, max.	5 W
Load resistance range — lower limit	48 Ω
Load resistance range — upper limit	12 kΩ
Output current — for signal "1" rated value	0.5 A
Output current — for signal "0" residual current, max.	0.7 mA
Output delay with resistive load — "0" to "1", typ.	50 µs
Output delay with resistive load — "1" to "0", typ.	100 µs
Parallel switching of two outputs — for uprating	No
Parallel switching of two outputs — for redundant control of a load	Yes
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — on lamp load, max.	10 Hz
Total current of the outputs — Current per channel, max.	0.5 A
Total current of the outputs — Current per module, max.	2 A
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Analog inputs

Number of analog inputs	16
permissible input current for current input (destruction limit), max.	30 mA
Input ranges (rated values), currents — 0 to 10 mA	Yes
Input ranges (rated values), currents — 0 to 10 mA — Input resistance (0 to 10 mA)	250 Ω
Input ranges (rated values), currents — 0 to 20 mA	Yes; 16 bit incl. sign
Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA)	250 Ω
Input ranges (rated values), currents — 4 mA to 20 mA	Yes; 16 bit incl. sign
Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA)	250 Ω

Analog value generation for the inputs

Measurement principle	integrating (Sigma-Delta)
Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.	16 bit; Resolution with overrange (bit including sign), max. 16 bits, exception: 15 bits at 60 Hz interference suppression and 0 to 10 mA
Integration and conversion time/resolution per channel — Integration time, parameterizable	Yes; channel by channel
Smoothing of measured values — Parameterizable	Yes; none, weak, medium, strong, channel-by-channel

Encoder

Connection of signal encoders — for current measurement as 2-wire transducer	Yes
Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

Errors/accuracies

Linearity error (relative to input range), (+/-)	0.01 %
Temperature error (relative to input range), (+/-)	0.005 %/K
Crosstalk between the inputs, min.	60 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)	0.05 %
Operational error limit in overall temperature range — Current, relative to input range, (+/-)	0.5 %
Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)	0.1 %

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Alarms — Maintenance interrupt	Yes
Alarms — Limit value alarm	Yes; two upper and two lower limit values in each case
Alarms — Hardware interrupt	Yes; Parameterizable, channels 0 to 15, rising/falling edge
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Wire break	Yes; channel by channel
Diagnoses — Short-circuit to ground	Yes; Encoder supply to M, channel by channel
Diagnoses — Group error	Yes
Diagnoses — Overflow/Underflow	Yes; channel by channel
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	No
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Integrated Functions

Frequency measurement	Yes
Frequency measurement — Number of frequency meters	8
Counting functions — Continuous counting	Yes
Counting functions — Counter response parameterizable	Yes
Counting functions — Hardware gate via digital input	Yes; Via partner channel (digital input n+8)
Counting functions — Software gate	Yes
Measuring functions — Dynamic measurement period adjustment	Yes
Measuring functions — Measuring range — Frequency measurement, min.	0.1 Hz
Measuring functions — Measuring range — Frequency measurement, max.	5 kHz
Measuring functions — Accuracy — Frequency measurement	100 ppm; depending on measuring interval and signal evaluation

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — Between the channels and load voltage L+	No

Isolation

Isolation tested with

1 500 V DC/1 min, type test

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C
Ambient temperature during operation — horizontal installation, max.	70 °C; Observe derating
Ambient temperature during operation — vertical installation, min.	-40 °C
Ambient temperature during operation — vertical installation, max.	60 °C; Observe derating

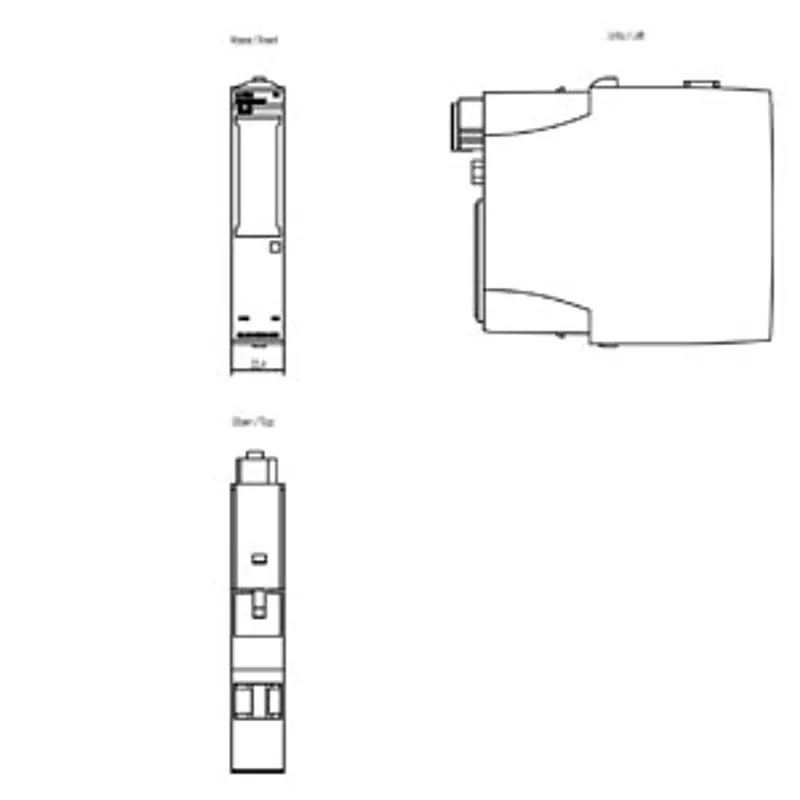

Dimensions

Width	22.5 mm
Height	115 mm
Depth	138 mm

Weights

Weight, approx.

150 g
