Siemens 6DL1132-6BL00-0PH1

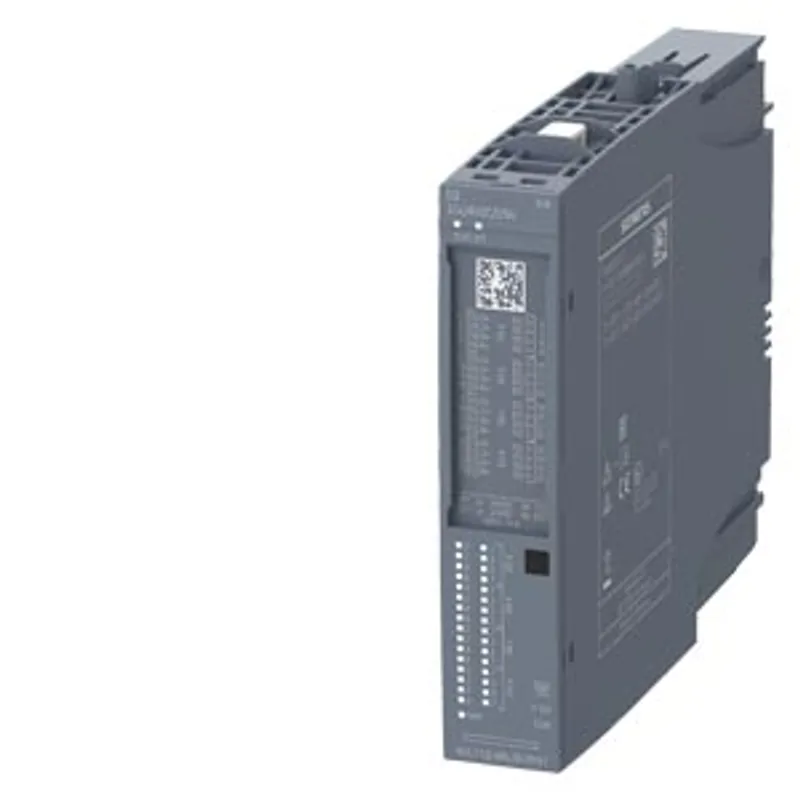

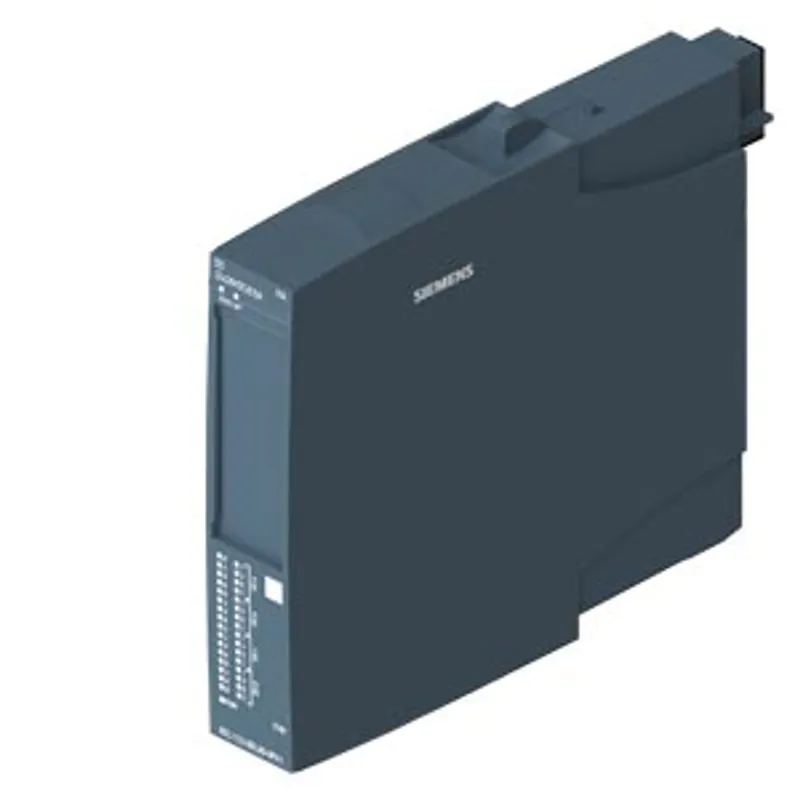

SIMATIC ET 200SP HA, digital output module, DQ 32X24VDC/0.5A HA, suitable for terminal block, H1, N0

MPN: 6DL1132-6BL00-0PH1
Category: Digital I/O modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6DL1132-6BL00-0PH1?

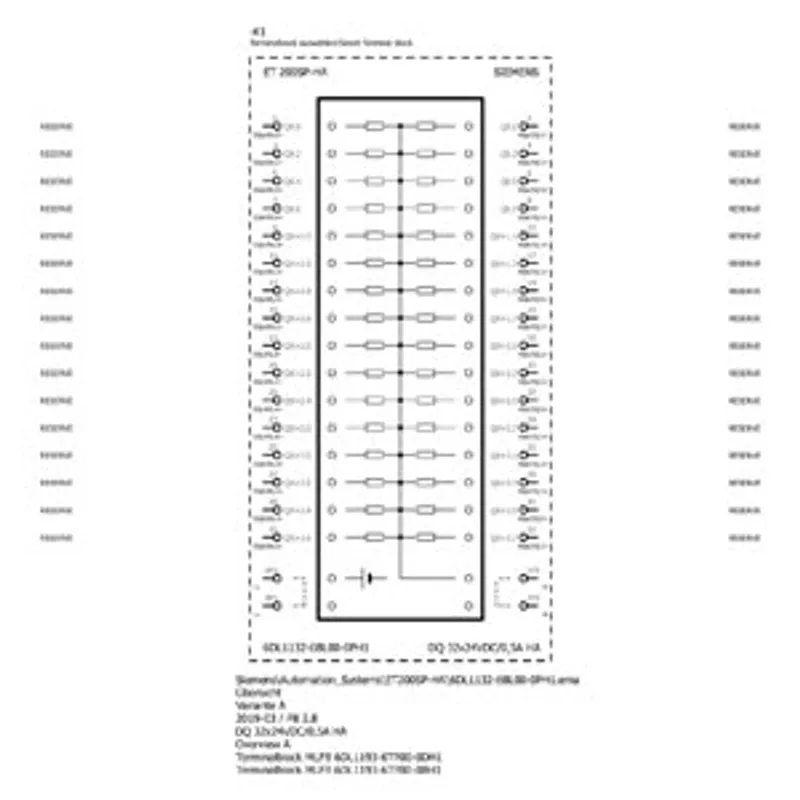

SIMATIC ET 200SP HA, digital output module, DQ 32X24VDC/0.5A HA, suitable for terminal block, H1, N0, color code CC00, channel diagnostics

Specifications

General information

Product type designation	DQ 32x24VDC/0.5A HA
Firmware version	V1.0
Firmware version — FW update possible	Yes
Usable terminal block	type H1, N0, H0 (see system manual for details)
Color code for module-specific color-coded label	CC00
Product function — I&M data	Yes; I&M0 to I&M3
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V16
Engineering with — STEP 7 configurable/integrated from version	V5.6
Engineering with — PCS 7 configurable/integrated from version	V9.0
Engineering with — PCS neo can be configured/integrated from version	V3.0
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode — DQ	Yes
Operating mode — DQ with energy-saving function	No
Operating mode — PWM	No
Operating mode — Oversampling	No
Redundancy — Redundancy capability	No

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption (rated value)	60 mA; without load
Current consumption, max.	70 mA; without load

Output voltage

Rated value (DC)

24 V

Power loss

Power loss, typ.

1.6 W; minimum - typ. specification not possible because load-dependent

Address area

Address space per module — Inputs	4 byte; QI of the outputs
Address space per module — Outputs	4 byte

Digital outputs

Number of digital outputs	32
Current-sinking	No
Current-sourcing	Yes
Digital outputs, parameterizable	Yes
Short-circuit protection	Yes; Clocked electronically
Short-circuit protection — Response threshold, typ.	2 A; Overload / short circuit
Open-circuit detection	No
Overload protection	Yes
Limitation of inductive shutdown voltage to	Typ. L+ (-53 V)
Controlling a digital input	Yes
Switching capacity of the outputs — with resistive load, max.	0.5 A
Switching capacity of the outputs — on lamp load, max.	5 W
Load resistance range — lower limit	48 Ω
Load resistance range — upper limit	4 kΩ
Output current — for signal "1" rated value	0.5 A
Output current — for signal "0" residual current, max.	0.1 mA
Output delay with resistive load — "0" to "1", typ.	54 µs
Output delay with resistive load — "1" to "0", typ.	48 µs
Parallel switching of two outputs — for uprating	No
Parallel switching of two outputs — for redundant control of a load	Yes; only outputs of the same group
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — with inductive load, max.	2 Hz
Switching frequency — on lamp load, max.	10 Hz
Total current of the outputs — Current per channel, max.	0.5 A
Total current of the outputs — Current per module, max.	10 A
Total current of the outputs (per module) — horizontal installation — up to 70 °C, max.	10 A
Total current of the outputs (per module) — vertical installation — up to 60 °C, max.	10 A
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Interrupts/diagnostics/status information

Diagnostics function	Yes
Substitute values connectable	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Monitoring the supply voltage — parameterizable	Yes
Diagnoses — Wire break	No
Diagnoses — Short-circuit	Yes
Diagnoses — Short-circuit to ground	Yes; channel by channel
Diagnoses — Short-circuit to L+	No
Diagnoses — Group error	Yes
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes

Isolation

Isolation tested with

1 500 V DC/1 min, type test

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C
Ambient temperature during operation — horizontal installation, max.	70 °C
Ambient temperature during operation — vertical installation, min.	-40 °C
Ambient temperature during operation — vertical installation, max.	60 °C

Dimensions

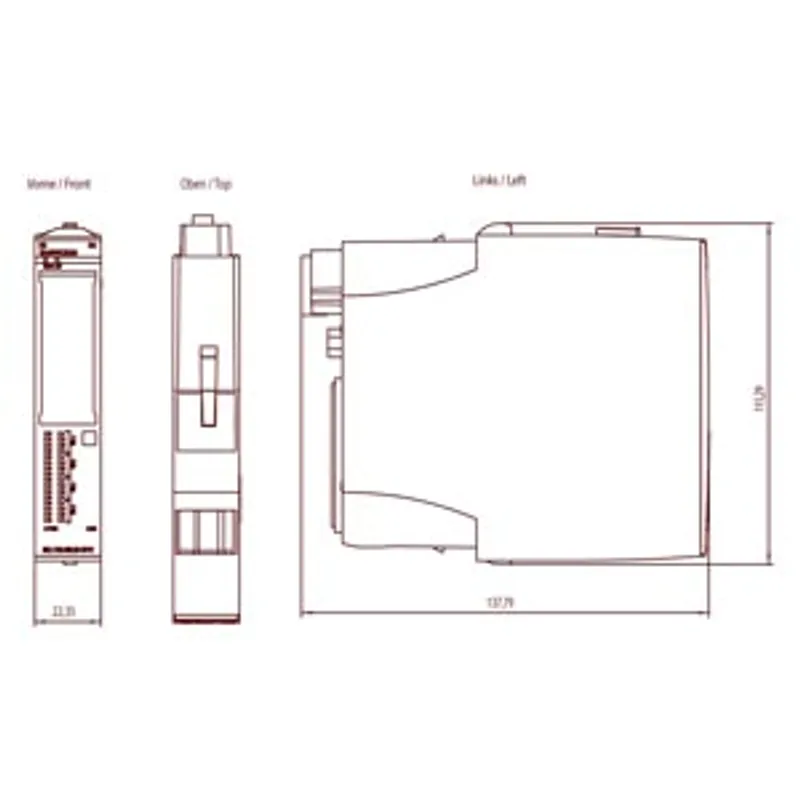

Width	22.5 mm
Height	115 mm
Depth	138 mm

Weights

Weight, approx.

150 g
