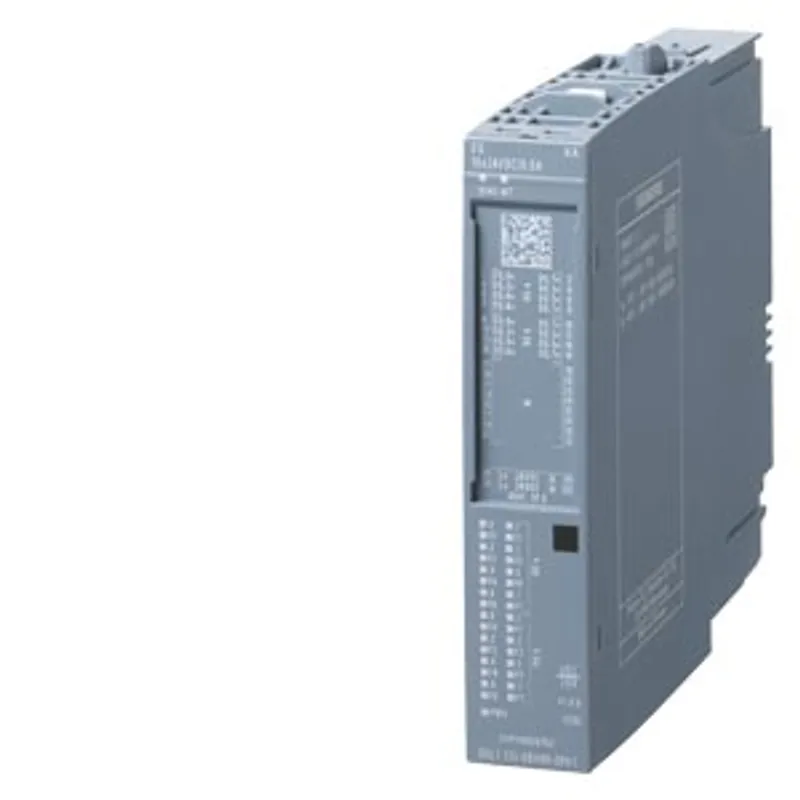

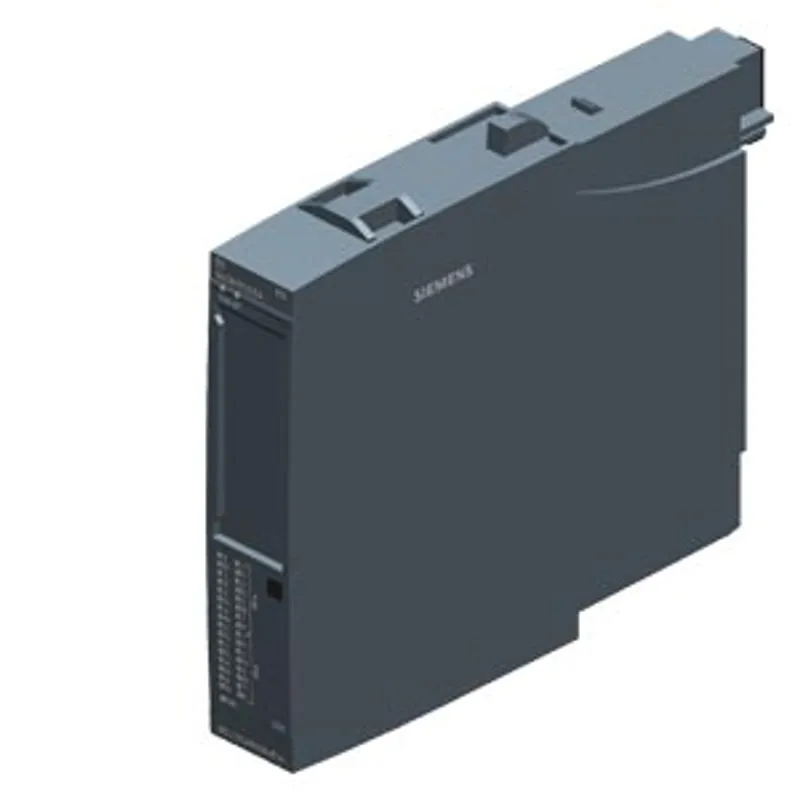

Siemens 6DL1132-6BH00-0PH1
SIMATIC ET 200SP HA, digital output module, DQ 16X24VDC/0,5A HA, suitable for terminal block, H1, M1
- MPN
- 6DL1132-6BH00-0PH1
- Category
- Digital I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1132-6BH00-0PH1?
SIMATIC ET 200SP HA, digital output module, DQ 16X24VDC/0,5A HA, suitable for terminal block, H1, M1, color code CC02, channel diagnostics
Specifications
General information
| Product type designation | DQ 16x24VDC/0.5A HA |
| Firmware version | V1.0 |
| Firmware version — FW update possible | Yes |
| Usable terminal block | type H1, M1, N0, H0, M0 (for details see the system manual) |
| Color code for module-specific color-coded label | CC02 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V16 |
| Engineering with — STEP 7 configurable/integrated from version | V5.6 |
| Engineering with — PCS 7 configurable/integrated from version | V9.0 |
| Engineering with — PCS neo can be configured/integrated from version | V3.0 |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode — DQ | Yes |
| Operating mode — DQ with energy-saving function | No |
| Operating mode — PWM | No |
| Operating mode — Oversampling | No |
| Operating mode — MSO | No |
| Redundancy — Redundancy capability | Yes; With TB type M1 |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
Input current
| Current consumption (rated value) | 60 mA; without load |
| Current consumption, max. | 70 mA; without load |
Output voltage
| Rated value (DC) | 24 V |
Power loss
| Power loss, typ. | 1.2 W; minimum - typ. specification not possible because load-dependent |
Address area
| Address space per module — Address space per module, max. | 2 byte; + 2 bytes for QI information |
Digital outputs
| Number of digital outputs | 16 |
| Current-sinking | No |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | Yes; Ensure sufficient low-resistance cable routing to the sensor/actuator in order to attain the response threshold. Depending on the cable cross-section used, there may be constraints regarding the usable length of cable. |
| Short-circuit protection — Response threshold, typ. | 0.7 A to 1.3 A (for IO redundancy up to max 2.6 A) |
| Open-circuit detection | Yes; 0.7 mA test current for wire-break diagnostics; this value is doubled in the case of IO redundancy |
| Overload protection | Yes |
| Limitation of inductive shutdown voltage to | L+ -(37 to 41V) |
| Controlling a digital input | Yes |
| Switching capacity of the outputs — with resistive load, max. | 0.5 A |
| Switching capacity of the outputs — on lamp load, max. | 5 W |
| Load resistance range — lower limit | 48 Ω |
| Load resistance range — upper limit | 12 kΩ |
| Output current — for signal "1" rated value | 0.5 A |
| Output current — for signal "0" residual current, max. | 0.7 mA; Test current for wire-break diagnostics; this value is doubled in the case of IO redundancy |
| Output delay with resistive load — "0" to "1", typ. | 50 µs |
| Output delay with resistive load — "1" to "0", typ. | 100 µs |
| Parallel switching of two outputs — for uprating | No |
| Parallel switching of two outputs — for redundant control of a load | Yes |
| Switching frequency — with resistive load, max. | 100 Hz |
| Switching frequency — with inductive load, max. | 2 Hz |
| Switching frequency — on lamp load, max. | 10 Hz |
| Total current of the outputs — Current per channel, max. | 0.5 A |
| Total current of the outputs — Current per module, max. | 8 A |
| Total current of the outputs (per module) — horizontal installation — up to 30 °C, max. | 8 A |
| Total current of the outputs (per module) — horizontal installation — up to 40 °C, max. | 8 A |
| Total current of the outputs (per module) — horizontal installation — up to 50 °C, max. | 8 A |
| Total current of the outputs (per module) — horizontal installation — up to 60 °C, max. | 5.5 A |
| Total current of the outputs (per module) — horizontal installation — up to 70 °C, max. | 3 A |
| Total current of the outputs (per module) — vertical installation — up to 30 °C, max. | 8 A |
| Total current of the outputs (per module) — vertical installation — up to 40 °C, max. | 6.33 A |
| Total current of the outputs (per module) — vertical installation — up to 50 °C, max. | 4.67 A |
| Total current of the outputs (per module) — vertical installation — up to 60 °C, max. | 3 A |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes; channel by channel |
| Diagnoses — Short-circuit to ground | Yes; channel by channel |
| Diagnoses — Short-circuit to L+ | Yes; channel by channel |
| Diagnoses — Group error | Yes |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
Isolation
| Isolation tested with | 1 500 V DC/1 min, type test |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |

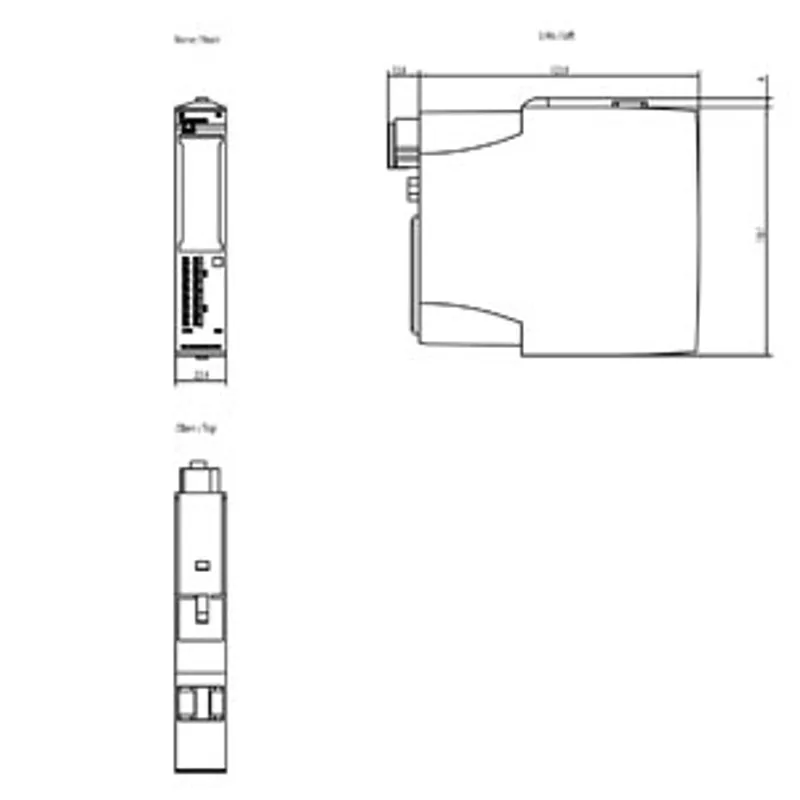

Dimensions
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
Weights
| Weight, approx. | 137 g |
