Home / B&R / B&R 5PC810.FA03-00

B&R 5PC810.FA03-00

This fan kit is an optional addition for 3-slot system…

MPN: 5PC810.FA03-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PC810.FA03-00?

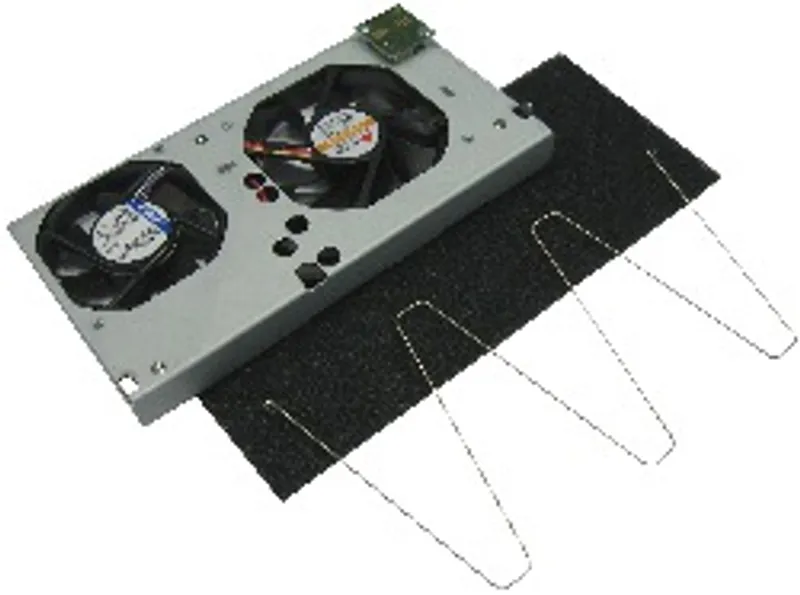

This fan kit is an optional addition for 3-slot system units.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Number of fans	2
Speed	Fan 1: Max. 4300 rpm ±12.5%; Fan 2: Max. 3200 rpm ±10%
Noise level	Fan 1: 32 dB; Fan 2: 33 dB
Service life	Fan 1: 60000 hours at 40°C; Fan 2: 75000 hours at 40°C
Type	Double ball bearing

Mechanical properties

Dimensions – Width	Fan 1: 70 mm; Fan 2: 80 mm
Dimensions – Height	Fan 1: 70 mm; Fan 2: 80 mm
Dimensions – Depth	Fan 1: 15 mm; Fan 2: 15 mm

Accessories

Optional accessories (1)

5AC801.FA03-00

Accessories — APC810 replacement fan filter for 5PC810.SX03-00, 5 pcs.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation PC 810 User's ManualPDF · 30 MB · 1.58 (04/30/2015) - EN
