B&R 5MP7120.034F-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.48 kg |
Shipping & availability
When can 5MP7120.034F-000 be shipped?
5MP7120.034F-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5MP7120.034F-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5MP7120.034F-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5MP7120.034F-000, subject to availability and destination.

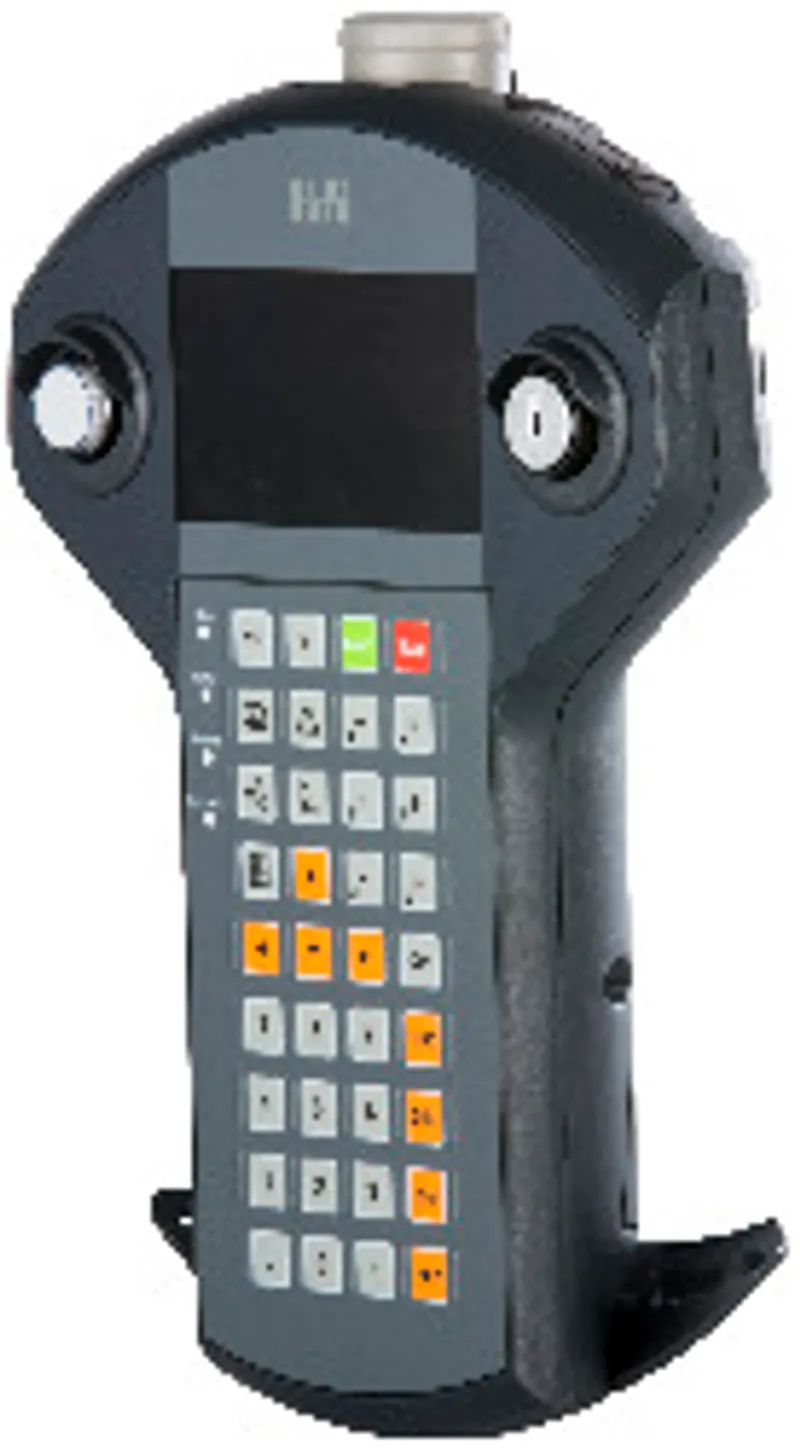

3.4" TFT WQVGA color displaySingle-touch (analog resistive)ARM Cortex A8 architecture 600 MHz36 system keysStop button3-position enable switchKey switch Mobile Panel 7100 3.4" WQVGA TFT - 480 x 272 pixels - Single-touch (analog resistive) - Cortex A8 processor - For VNC - 1x Ethernet 10/100, 1x USB 2.0 OTG mini - 1x key switch, 1x pushbutton - 1x stop button - 1x enable switch - 36x system key, 4x LED
Specifications
Specifications
| CE | Yes |
| UL | cULus E115267 Industrial control equipment |
| KC | Yes |
| Type | Mini USB 2.0 OTG |
| Clock frequency | 600 MHz |
| Flash | 256 MB |
| RAM | 128 MB LPDDR |
| Diagonal | 3.4" |
| Colors | 65535 colors |
| Resolution | WQVGA, 480 x 272 px |
| Contrast | 700:1 |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Direction U = 80° / Direction D = 80° |
| Brightness | 400 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Analog, resistive |
| Quantity | 1 |
| Variant | RJ45, shielded |
| Transfer rate | 10/100 Mbit/s |
| Current-carrying capacity | 500 mA |
| Max. baud rate | 100 Mbit/s |
| System keys | 36 numeric keys, cursor block |
| Illuminated pushbutton | Yes (white) |
| Stop button | Yes (2 normally closed contacts) |
| Enable switch | Yes (3-position button) |
| Key switch | Yes |
| LEDs | 4 |
| Edition | VNC client |
| Architecture | ARM |
| Language | English |
| Preinstallation | Yes |
| Nominal voltage | 24 VDC ±25% (integrated reverse polarity protection), SELV |
| Inrush current | Max. 5.6 A (current limiting available) |
| Power consumption | 6 W (250 mA at 24 VDC) |
| Max. interruption of power supply | ≤10 ms |
| Drop height | 1 m to industrial floor |
| Flame-retardant | UL 94 / V-0 |
| Degree of protection per EN 60529 | IP65 |
| Protection class | Class 3 per EN 61131-2 or EN 50178 |
| Operation | Max. 2000 m |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Material | Polyester |
| Width | 162 mm |
| Height | 238.4 mm (with stop button) |
| Depth | 49 mm |
| Weight | Approx. 480 g |
