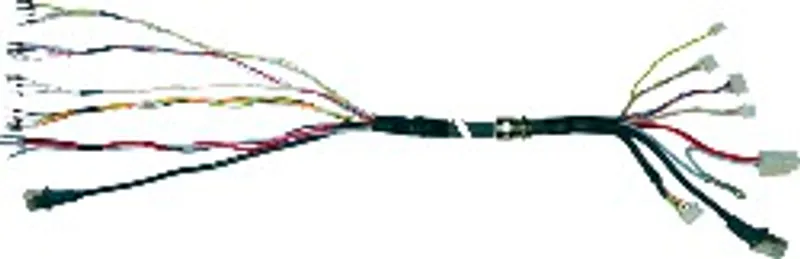

B&R 5CAMPB.0050-10

Mobile Panel box cable, With wire end sleeves

MPN: 5CAMPB.0050-10

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5CAMPB.0050-10?

Mobile Panel box cable - With wire end sleeves - With connector contacts - 5 m

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment

Cable construction

Supply lines – Material	Tinned copper stranded wire
Supply lines – Permissible operating voltage	+30 VDC
Outer jacket – Material	Flame-retardant PUR
Outer jacket – Color	Similar to RAL 7012
Cable elements – Control devices	Direct connection between control devices and monitoring device (6 wires)
Cable elements – CAN	2 pairs with shielding (5 wires)
Cable elements – Ethernet	Twisted pair cable for Ethernet (10/100 Mbit/s) (4 wires, male RJ45 connector)
Cable elements – Serial	3 wires
Cable elements – Power supply	24 VDC supply voltage and grounding (3 wires), SELV (note: IEC 61010-2-201 requirements must be observed.)
Cable elements – Enable switch	Direct connection between enable switch and monitoring device (6 wires)
Type	Hybrid cable, 25 wires
Properties	Halogen- and silicone-free

Connector

Type	Jacob GmbH type: PERFECT 50.620 M

Electrical properties

Conductor resistance	≤140 Ω/km (0.15 mm² conductor) ; ≤27 Ω/km (0.75 mm² conductor)
Insulation resistance	≤500 Ω/km

Operating conditions

Shield attenuation	Per IEC 60096-1, Amendment 2
Flame-retardant	Per IEC 60332-1 and VW1 / FT1 in accordance with C-UL
Oil and hydrolysis resistance	Per VDE 0282-10

Ambient conditions

Temperature – Moving	-20 to 60°C
Temperature – Static	-20 to 80°C

Mechanical properties

Dimensions – Length	5 m ±14 cm
Dimensions – Diameter	10 mm
Bend radius – Moving	60 mm
Bend radius – Fixed installation	30 mm
Weight	160 g/m
Tension	Max. 140 N
