B&R 5MP181.0843-07
Mobile Panel MP181 BIOS control device, 8.4"
- MPN
- 5MP181.0843-07
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5MP181.0843-07?

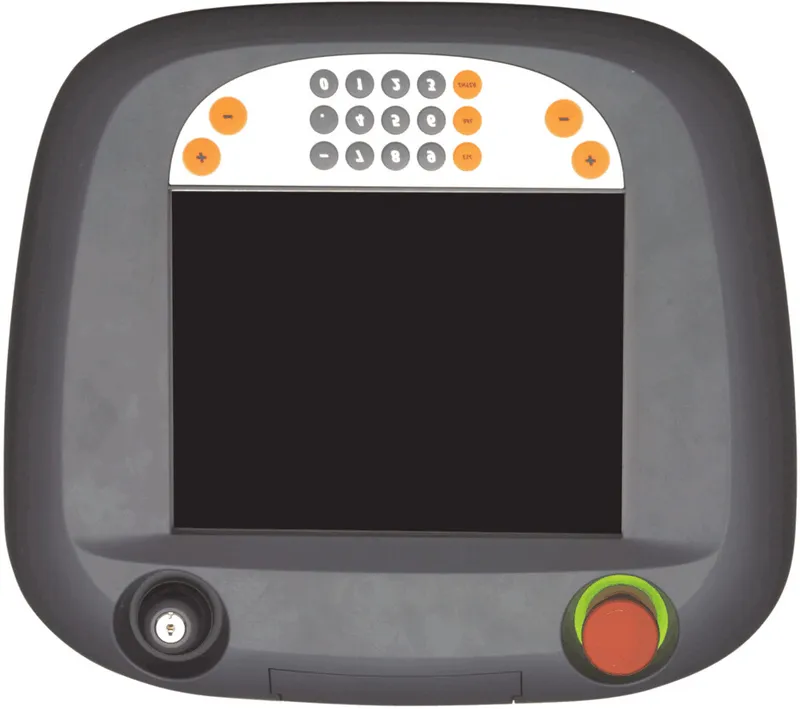

Mobile Panel MP181 BIOS control device, 8.4" VGA color TFT display with touch screen (resistive), 19 system keys, key switch and emergency switch-off. 128 MB SDRAM, CompactFlash slot (type I), ETH 10/100, USB 1.1, battery, 24 VDC. Order handle and cables separately.
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 2 years |
| Battery – Removable | Yes, on the back via handle |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Controller
| Processor – Type | Geode SC2200 |
| Processor – Clock frequency | 266 MHz |
| Processor – L1 cache | 16 kB |
| Processor – L2 cache | No |
| Processor – Floating point unit (FPU) | Yes |
| Processor – MMX-compatible | Yes |
| Real-time clock – Accuracy | Typ. 20 ppm (1.7 seconds) per day |
| Real-time clock – Battery-backed | Yes |
| Graphics – Controller | Geode SC2200 |
| Graphics – Memory | 4 MB shared memory (reserved by main memory) |
| SRAM – Size | - |
| SRAM – Battery-backed | - |
| Bootloader | BIOS |
| Mode/Node switches | 2, 16 positions each (back) (note: Accessible after removing the handle.) |
| Watchdog | No |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 55° |
| Viewing angles – Vertical | Direction U = 55° / Direction D = 40° |
| Backlight – Brightness | 120 cd/m² |
| Backlight – Half-brightness time | 50,000 h |
| Filter glass – Transmittance | - |
| Filter glass – Anti-glare coating | - |
| Touch screen – Type | AMT |
| Touch screen – Technology | Analog, resistive |
| Touch screen – Controller | Hampshire, serial, 12-bit |
| Touch screen – Transmittance | Up to 78% |
| Type | TFT color |
| Diagonal | 8.4" (213.4 mm) |
| Colors | 262,144 (note: The actual number of available colors depends on the graphics memory, configured graphics mode and graphics driver being used.) |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 250:1 |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Type | Type I |
| CompactFlash slot 1 – Connection | Primary IDE |
| USB – Quantity | 1 |
| USB – Type | USB 1.1 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) |
| Ethernet – Quantity | 1 (note: Connection via Mobile Panel cable.) |
| Ethernet – Controller | MacPhyter DP83816 |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
| CAN – Quantity | - |
| CAN – Controller | - |
| CAN – Connection | - |
Keys
| Function keys | No |
| Soft keys | No |
| System keys | Numeric keys; 4 system keys |
| 3-axis joystick | No |
| Electronic handwheel | No |
| Illuminated pushbutton | No |
| Emergency switch-off | 2 normally closed contacts, right position (note: Connection via Mobile Panel cable.) |
| Enable switch | 3-position, 2-channel, position on front of handle |
| Override potentiometer | No |
| Key switch | Yes (note: Connection via Mobile Panel cable.) |
| Service life | >1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force |
| LEDs | No |
Electrical properties
| Nominal voltage | 24 VDC ±25% (integrated reverse polarity protection) (note: Connection via Mobile Panel cable.) |
| Inrush current | Max. 20 A for ca. 1 ms |
| Power consumption | Typ. approx. 8 W, max. 10 W |
| Galvanic isolation | No |
Operating conditions
| Drop height | 1 m to industrial floor |
| Flame-retardant | UL 94 V-0 |
| Degree of protection per EN 60529 | IP54 protected against dust and splashed water (only with handle 4MPHDL.0000-00) |
Ambient conditions
| Temperature – Operation | 0 to 45°C |
| Temperature – Storage | -20 to 70°C |
| Temperature – Transport | -20 to 70°C |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
| Elevation – Operation | Max. 2000 m |
Mechanical properties
| Housing – Material | Double-walled plastic housing (Cycoloy C2950) |
| Housing – Coating | Soft paint, similar to RAL 7016 |
| Front – Material | Polyester |
| Front – Light background color | Similar to Pantone 427CV |
| Front – Dark gray keys color | Similar to Pantone 431CV |
| Front – Orange keys color | Similar to Pantone 151CV |
| Front – Design | Gray |
| Front – Gasket | Flat gasket around display front |
| Dimensions – Width | 306.6 mm (note: All dimensions without handle.) |
| Dimensions – Height | 76 mm (note: All dimensions without handle.) |
| Dimensions – Depth | 270.6 mm (note: All dimensions without handle.) |
| Weight | Approx. 1900 g (note: Without handle) |
Accessories
Required accessories (order separately)
| 5CAMPH.0200-10 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0200-00 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0150-10 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0150-00 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0100-10 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0100-00 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0070-00 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0050-10 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0050-00 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPH.0018-10 | Attachment cables — The attachment cable establishes the electrical and mechanical connection between the switching cabinet and device. It includes lines for t… |
| 5CAMPC.0020-01 | Control cabinet cables — The straight through control cabinet cable is required for the wiring inside the control cabinet. The pinout of the Ethernet plug (1:1) mak… |
| 5CAMPC.0020-00 | Control cabinet cables — The crossover switching cabinet cable is required for the wiring inside the switching cabinet.The pin assignments for the Ethernet plug (cr… |
| 4MPHDL.0000-00 | Handles — Mobile Panel handle, with integrated 3-position enable switch. |
Optional accessories (18)
| 5SWHMI.0000-00 | Accessories — HMI Drivers & Utilities DVD |
| 5AC900.1100-00 | Accessories — Touch screen stylus pen , 5 pcs. |
| 4MPBYP.0000-00 | Accessories — Mobile Panel lock pull bypass connector for control cabinet cable 5CAMPC.0020-00, 5CAMPC.0020-01. |
| 4MPBRA.0000-00 | Accessories — MP100/200 wall mount. |
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
| 5CFCRD.8192-03 | CompactFlash cards — CompactFlash 8 GB Western Digital (SLC) |
| 5CFCRD.4096-03 | CompactFlash cards — CompactFlash 4 GB Western Digital (SLC) |
| 5CFCRD.2048-03 | CompactFlash cards — CompactFlash 2 GB Western Digital (SLC) |
| 5CFCRD.1024-03 | CompactFlash cards — CompactFlash 1 GB Western Digital (SLC) |
| 5CFCRD.0512-03 | CompactFlash cards — CompactFlash 512 MB Western Digital (SLC) |
| 5CFCRD.0256-03 | CompactFlash cards — CompactFlash 256 MB Western Digital (SLC) |
| 5CFCRD.0128-03 | CompactFlash cards — CompactFlash 128 MB Western Digital (SLC) |
| 5CFCRD.0064-03 | CompactFlash cards — CompactFlash 64 MB Western Digital (SLC) |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
| 5SWWCE.0619-ENG | Windows CE 5.0 — Microsoft OEM Windows CE 5.0 Professional plus, English; for MP181 BIOS; please order CompactFlash separately (minimum 128 MB). |
| 5SWWCE.0519-ENG | Windows CE 5.0 — Microsoft OEM Windows CE 5.0 Professional, English; for MP181 BIOS; please order CompactFlash separately (minimum 128 MB). |
| 5SWWXP.0419-ENG | Windows XP Embedded — Microsoft OEM Windows XP Embedded Feature Pack 2007, English; for MP181 BIOS; please order CompactFlash separately (minimum 512 MB). |
