B&R 5MP050.0653-03
6.5" VGA TFT color display
- MPN
- 5MP050.0653-03
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5MP050.0653-03?
6.5" VGA TFT color display
Analog resistive touch screen
Intel PXA 270 processor
31 system keys and soft keys
Stop button
Handwheel
Override potentiometer
2 integrated 3-position enable switches

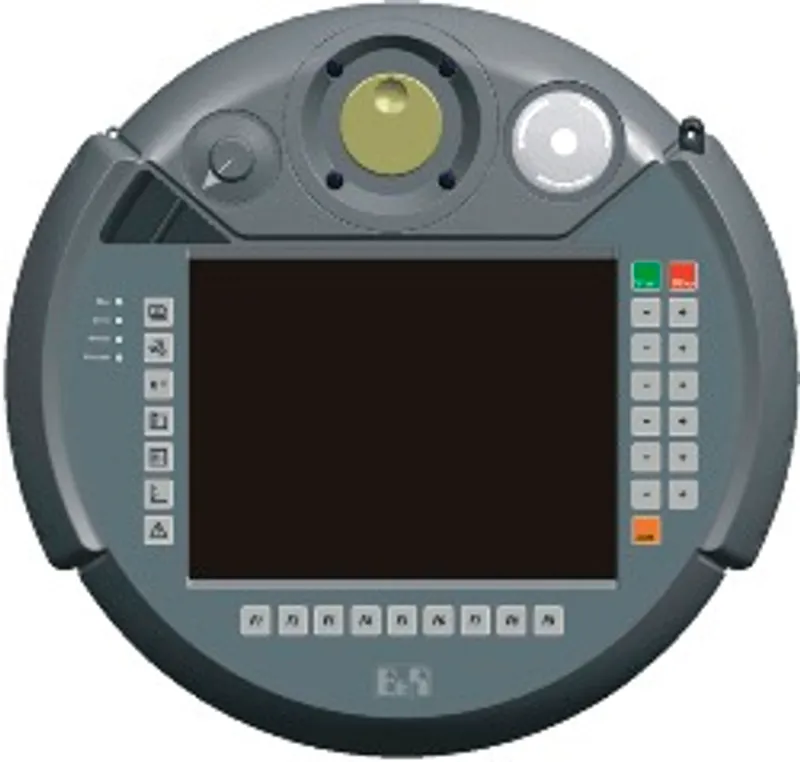

Mobile Panel MP50, 6.5" VGA TFT color display with touch screen (analog resistive), Intel PXA 270 processor, 256 MB DRAM, 128 MB flash memory, ETH 10/100, USB 1.1, 31 system keys, stop button, handwheel, override potentiometer, 2 integrated 3-position enable switches, handle. Delivered as an assembly (order cables and operating system separately).
Specifications
General information
| Certifications – CE | Yes |
| Reset button | Yes |
Controller
| Processor – Type | Intel PXA 270 |
| Processor – Clock frequency | 416 MHz |
| Graphics – Controller | Intel PXA |
| SRAM – Size | - |
| SRAM – Battery-backed | - |
| Mode/Node switches | No |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 55° |
| Viewing angles – Vertical | Direction U = 30° / Direction D = 60° |
| Backlight – Brightness | 500 cd/m² |
| Backlight – Half-brightness time | 100,000 h |
| Touch screen – Technology | Analog, resistive |
| Type | TFT color |
| Diagonal | 6.5" (165 mm) |
| Colors | 65,535 (note: The actual number of available colors depends on the graphics memory, configured graphics mode and graphics driver being used.) |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 300:1 |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 1.1 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA |
| Ethernet – Quantity | 1 (note: Connection via Mobile Panel cable.) |
| Ethernet – Controller | SMSC11X |
| Ethernet – Variant | Shielded RJ45 port |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
Keys
| Function keys | No |
| Soft keys | 9 |
| System keys | 22 |
| 3-axis joystick | No |
| Electronic handwheel | Yes |
| Illuminated pushbutton | No |
| Stop button | Yes (2 normally closed contacts, right position) |
| Enable switch | Yes (2 3-position buttons, left and right position) |
| Override potentiometer | Yes |
| Key switch | No |
| LEDs | 4 |
Electrical properties
| Nominal voltage | 24 VDC ±25% (integrated reverse polarity protection)Commissioning from a safety point of view""> (note: Connection via Mobile Panel cable. For details regarding appropriate protection of the device, see chapter 3.1) |
| Inrush current | Max. 5.6 A (current limiting available) |
| Power consumption | 9.6 W (400 mA at 24 VDC) |
| Max. interruption of power supply | ≤10 ms |
| Galvanic isolation | No |
Operating conditions
| Drop height | 1.5 m to industrial floor |
| Flame-retardant | UL 94 V-0 |
| Degree of protection per EN 60529 | IP65 |
| Protection class | Class 3 per EN 61131-2 and EN 50178 |
Ambient conditions
| Temperature – Operation | 0 to 50°C (note: When used with a backup rechargeable battery (5MPBAT.0000-00), the maximum temperature during operation is 45°C.) |
| Temperature – Storage | -20 to 70°C |
| Temperature – Transport | -20 to 70°C |
| Relative humidity – Operation | Max. 95%, non-condensing |
| Relative humidity – Storage | Max. 95%, non-condensing |
| Relative humidity – Transport | Max. 95%, non-condensing |
| Vibration – Operation | 5 to 9 Hz: 7 mm amplitude / 9 to 150 Hz: 2 g |
| Shock – Operation | 15 g (147 m/s² 0-peak) and 11 ms duration |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | ABS |
| Housing – Coating | Similar to RAL 7011 |
| Front – Material | Polyester |
| Dimensions – Width | 252 mm |
| Dimensions – Height | 114 mm |
| Dimensions – Depth | 240 mm |
| Weight | Approx. 1250 g |
Accessories
Required accessories (order separately)
| 5CAMPH.0200-30 | Attachment cables — An attachment cable establishes the electrical and mechanical connection between the control cabinet and device. It includes lines for the… |
| 5CAMPH.0150-30 | Attachment cables — An attachment cable establishes the electrical and mechanical connection between the control cabinet and device. It includes lines for the… |
| 5CAMPH.0100-30 | Attachment cables — An attachment cable establishes the electrical and mechanical connection between the control cabinet and device. It includes lines for the… |
| 5CAMPH.0050-30 | Attachment cables — An attachment cable establishes the electrical and mechanical connection between the control cabinet and device. It includes lines for the… |
| 5CAMPH.0018-30 | Attachment cables — An attachment cable establishes the electrical and mechanical connection between the control cabinet and device. It includes lines for the… |
| 5CAMPC.0020-11 | Control cabinet cables — A straight-through control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector makes i… |
| 5CAMPC.0020-10 | Control cabinet cables — A crossover control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector (crossover) ma… |
Optional accessories (6)
| 5MPBAT.0000-00 | Accessories — The accumulator in the Mobile Panel prevents the operator panel from restarting when the connection box or control cabinet is being changed… |
| 5CAMPB.0100-10 | Accessories — A box cable establishes the electrical connection between the control cabinet and connection box 4MPCBX.0000-00. It includes lines for the… |
| 5CAMPB.0050-10 | Accessories — Mobile Panel box cable - With wire end sleeves - With connector contacts - 5 m |
| 4MPCBX.0001-00 | Accessories — Vertical connection of the Mobile Panel attachment cable to the control cabinet; IP65 protection; Compact dimensions; Robust construction C… |
| 4MPCBX.0000-00 | Accessories — Compatible for connections with Mobile Panel 7x00; Emergency stop circuit not interrupted when disconnecting and connecting the Mobile Pane… |
| 4MPBRA.0000-01 | Accessories — Wall mount 4MPBRA.0000-01 is used to store the Mobile Panel device together with the Mobile Panel attachment cable and is only intended for… |
