B&R 5CAMPH.0050-40

Name: B&R 5CAMPH.0050-40
Brand: B&R
SKU: 5CAMPH.0050-40

MPN: 5CAMPH.0050-40 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Attachment cables
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	153 kg

Shipping & availability

When can 5CAMPH.0050-40 be shipped?

5CAMPH.0050-40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5CAMPH.0050-40 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5CAMPH.0050-40 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CAMPH.0050-40, subject to availability and destination.

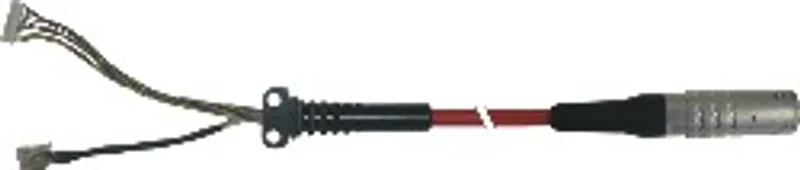

Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 5 m

Specifications

Durability	Mechanical properties per DIN VDE 0472 section 603 test type H (100000 cycles)
CE	Yes
CRA (Cyber Resilience Act)	Not applicable
UL	cULus E115267 Industrial control equipment
Type	ODU circular connector with push-pull locking mechanism
Material	Silicone- and halogen-free, flame-retardant PUR outer jacket
Color	Similar to RAL 7012
Control devices	Direct connection between stop button and monitoring device (4 wires)
Network	Star-quad cable for Ethernet (10/100 Mbit/s) (4 wires, male RJ45 connector)
Power supply	24 VDC supply voltage and grounding (3 wires), SELV
Enable switch	Direct connection between enable switch and monitoring device (4 wires)
Operating voltage	Max. 30 VDC
Conductor resistance	≤30 Ω/km
Shield attenuation	Per IEC 60096-1, Amendment 2
Flame-retardant	Per IEC 60332-1 and VW1 / FT1 in accordance with C-UL
Oil and hydrolysis resistance	Per VDE 0282-10
Moving	-25 to 80°C
Static	-40 to 80°C
Length	5 m ±0.1 m
Diameter	7.6 mm
Bend radius	Min. 60 mm
Weight	153 g/m
Tension	Max. 140 N
