B&R 5MP7151.101E-000
10.1" TFT WXGA color display
- MPN
- 5MP7151.101E-000
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5MP7151.101E-000?
10.1" TFT WXGA color display
Single-touch (analog resistive)
Intel Atom E3815 1.46 GHz
22 system keys
Stop button
3-position enable switch
Key switch

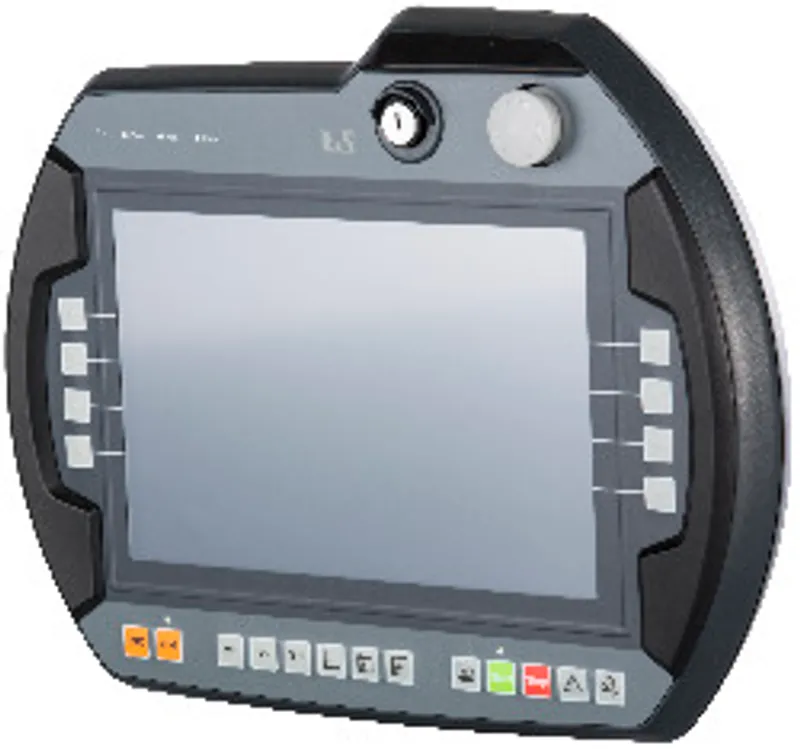

Mobile Panel 7100 10.1" WXGA TFT - 1280 x 800 pixels - Single-touch (analog resistive) - Atom E3815 processor, 4 GB RAM - For Windows WES7 - 1x Ethernet 10/100, 1x USB 2.0 - 1x key switch - 1x stop button - 1x enable switch - 21x system keys, 5x LEDs
Specifications
General information
| Support – mapp View | Recommended widget classes: A, B |
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Evaluation ongoing |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
Controller
| Processor – Type | Intel Atom E3815 |
| Processor – Clock frequency | 1460 MHz |
| Standard memory – RAM | 4 GB DDR3 |
| Flash | 32 GB |
Display
| Viewing angles – Horizontal | Direction R = 85° / Direction L = 85° |
| Viewing angles – Vertical | Direction U = 85° / Direction D = 85° |
| Backlight – Brightness | 400 cd/m² |
| Backlight – Half-brightness time | 100,000 h |
| Touch screen – Technology | Analog, resistive |
| Type | TFT color |
| Diagonal | 10.1" |
| Colors | 16.7 million (note: The actual number of available colors depends on the graphics memory, configured graphics mode and graphics driver being used.) |
| Resolution | WXGA, 1280 x 800 px |
| Contrast | 800:1 |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA |
| Ethernet – Quantity | 1 (note: Connection via Mobile Panel cable.) |
| Ethernet – Variant | RJ45, shielded |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
Keys
| System keys | 22 numeric keys, cursor block |
| Stop button | Yes (2 normally closed contacts) |
| Enable switch | Yes (3-position button, right position) |
| Key switch | Yes |
| LEDs | 5 |
Operating system
| Edition | Windows Embedded Standard 7 |
| Architecture | 64-bit |
| Service pack | SP1 |
| Language | English |
| Preinstallation | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25% (integrated reverse polarity protection), SELV (note: Connection via Mobile Panel cable.) |
| Inrush current | Max. 5.6 A (current limiting available) |
| Power consumption | 12 W (500 mA at 24 VDC), max. 15 W (with USB load) |
| Max. interruption of power supply | ≤10 ms |
Operating conditions
| Drop height | 1 m to industrial floor |
| Flame-retardant | UL 94 / V-0 |
| Degree of protection per EN 60529 | IP65 |
| Protection class | Class 3 per EN 61131-2 and EN 50178 |
Ambient conditions
| Temperature – Operation | 0 to 45°C |
| Temperature – Storage | -25 to 70°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 5 to 8.4 Hz: 3.5 mm amplitude / 8.4 to 150 Hz: 1 g |
| Shock – Operation | 15 g, 11 ms |
| Elevation – Operation | Max. 2000 m |
Mechanical properties
| Housing – Material | ABS |
| Front – Material | Polyester |
| Dimensions – Width | 353 mm |
| Dimensions – Height | 274 mm |
| Dimensions – Depth | 109.5 mm (with stop button) |
| Weight | Approx. 2000 g |
Accessories
Required accessories (order separately)
| 5CAMPH.0200-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 20 m |
| 5CAMPH.0150-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 15 m |
| 5CAMPH.0100-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 10 m |
| 5CAMPH.0050-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 5 m |
| 5CAMPH.0018-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 1.8 m |
| 5CAMPC.0020-11 | Control cabinet cables — A straight-through control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector makes i… |
| 5CAMPC.0020-10 | Control cabinet cables — A crossover control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector (crossover) ma… |
| 5SWWI7.1848-MUL | Windows Embedded Standard 7 — Windows Embedded Standard 7 Premium SP1 - 64-bit - Service Pack 1 - Multilingual - For MP7151 - Installation (without Recovery DVD) - Only… |
Optional accessories (5)
| 5CAMPB.0100-10 | Accessories — A box cable establishes the electrical connection between the control cabinet and connection box 4MPCBX.0000-00. It includes lines for the… |
| 5CAMPB.0050-10 | Accessories — Mobile Panel box cable - With wire end sleeves - With connector contacts - 5 m |
| 5ACCWB50.0000-000 | Accessories — Mobile Panel 7100 wall mount - For MP7150/MP7151 |
| 4MPCBX.0001-00 | Accessories — Vertical connection of the Mobile Panel attachment cable to the control cabinet; IP65 protection; Compact dimensions; Robust construction C… |
| 4MPCBX.0000-00 | Accessories — Compatible for connections with Mobile Panel 7x00; Emergency stop circuit not interrupted when disconnecting and connecting the Mobile Pane… |
