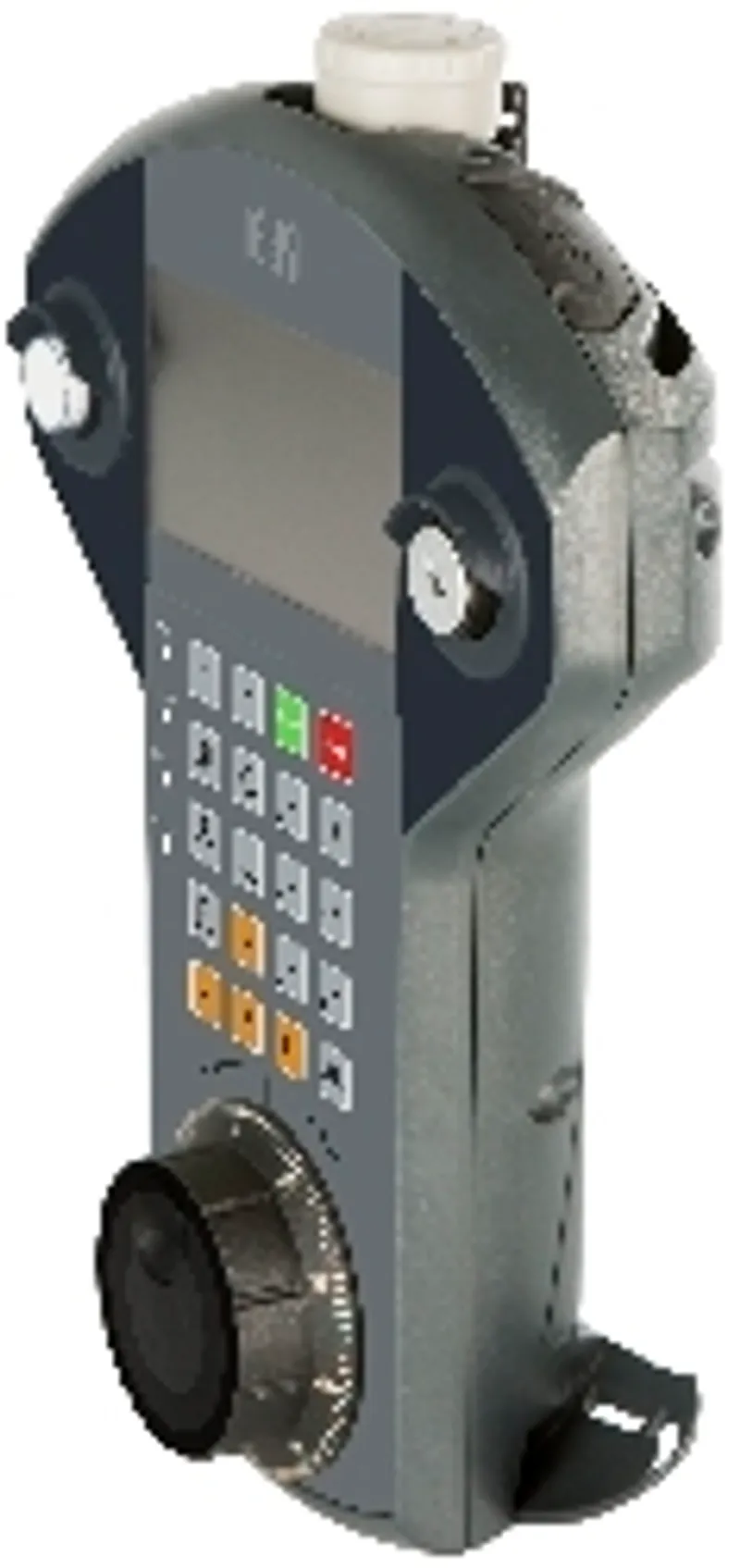

B&R 5MP7121.034F-000
Mobile Panel 7100 3.4" WQVGA TFT, 480 x 272 pixels
- MPN
- 5MP7121.034F-000
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5MP7121.034F-000?
Mobile Panel 7100 3.4" WQVGA TFT - 480 x 272 pixels - Single-touch (analog resistive) - Cortex-A8 processor - For VNC - 1x Ethernet 10/100, 1x USB 2.0 OTG mini - 1x key switch, 1x pushbutton - 1x stop button - 1x enable switch - 20x system keys, 4x LEDs - 1x handwheel
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
Controller
| Processor – Type | ARM Cortex-A8 architecture |
| Processor – Clock frequency | 600 MHz |
| Standard memory – RAM | 128 MB LPDDR |
| Flash | 256 MB |
Display
| Viewing angles – Horizontal | Direction R = 80° / Direction L = 80° |
| Viewing angles – Vertical | Direction U = 80° / Direction D = 80° |
| Backlight – Brightness | 400 cd/m² |
| Backlight – Half-brightness time | 50,000 h |
| Touch screen – Technology | Analog, resistive |
| Type | TFT color |
| Diagonal | 3.4" |
| Colors | 65535 colors (note: The actual number of available colors depends on the graphics memory, configured graphics mode and graphics driver being used.) |
| Resolution | WQVGA, 480 x 272 px |
| Contrast | 700:1 |
Interfaces
| USB – Quantity | 1 |
| USB – Type | Mini USB 2.0 OTG |
| USB – Variant | Type B |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | 500 mA |
| Ethernet – Quantity | 1 (note: Connection via Mobile Panel cable.) |
| Ethernet – Variant | RJ45, shielded |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
Keys
| System keys | 20 numeric keys, cursor block |
| Electronic handwheel | Yes |
| Illuminated pushbutton | Yes (white) |
| Stop button | Yes (2 normally closed contacts) |
| Enable switch | Yes (3-position button) |
| Key switch | Yes |
| LEDs | 4 |
Operating system
| Edition | VNC client |
| Architecture | ARM |
| Language | English |
| Preinstallation | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25% (integrated reverse polarity protection), SELV (note: Connection via Mobile Panel cable.) |
| Inrush current | Max. 5.6 A (current limiting available) |
| Power consumption | 6 W (250 mA at 24 VDC) |
| Max. interruption of power supply | ≤10 ms |
Operating conditions
| Drop height | 1 m to industrial floor |
| Flame-retardant | UL 94 / V-0 |
| Degree of protection per EN 60529 | IP65 |
| Protection class | Class 3 per EN 61131-2 and EN 50178 |
Ambient conditions
| Temperature – Operation | 0 to 45°C |
| Temperature – Storage | -20 to 70°C |
| Temperature – Transport | -20 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 10 to 57 Hz: 0.15 mm amplitude / 9 to 150 Hz: 2 g |
| Shock – Operation | 25 g, 11 ms |
| Elevation – Operation | Max. 2000 m |
Mechanical properties
| Housing – Material | ABS/PC |
| Front – Material | Polyester |
| Dimensions – Width | 162 mm |
| Dimensions – Height | 238.4 mm (with stop button) |
| Dimensions – Depth | 49 mm |
| Weight | Approx. 480 g |
Accessories
Required accessories (order separately)
| 5CAMPH.0200-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 20 m |
| 5CAMPH.0150-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 15 m |
| 5CAMPH.0100-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 10 m |
| 5CAMPH.0050-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 5 m |
| 5CAMPH.0018-40 | Attachment cables — Attachment cable for MP7100 and MP7200 - Push-Pull circular connector - 1.8 m |
| 5CAMPC.0020-11 | Control cabinet cables — A straight-through control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector makes i… |
| 5CAMPC.0020-10 | Control cabinet cables — A crossover control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector (crossover) ma… |
| 5SWVIS.VC52-ENG | VNC Client — VNC client - English - For MP7120 and MP7121 - Installation (without Recovery DVD) - Only available with a new device |
Optional accessories (5)
| 5CAMPB.0100-10 | Accessories — A box cable establishes the electrical connection between the control cabinet and connection box 4MPCBX.0000-00. It includes lines for the… |
| 5CAMPB.0050-10 | Accessories — Mobile Panel box cable - With wire end sleeves - With connector contacts - 5 m |
| 5ACCWB20.0000-000 | Accessories — Wall mount; Storage for 5MP7140 This wall mount is used to store the Mobile Panel 5MP7140 and only suitable for vertical, hanging installat… |
| 4MPCBX.0001-00 | Accessories — Vertical connection of the Mobile Panel attachment cable to the control cabinet; IP65 protection; Compact dimensions; Robust construction C… |
| 4MPCBX.0000-00 | Accessories — Compatible for connections with Mobile Panel 7x00; Emergency stop circuit not interrupted when disconnecting and connecting the Mobile Pane… |
