Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Hose cut off factor MM | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|

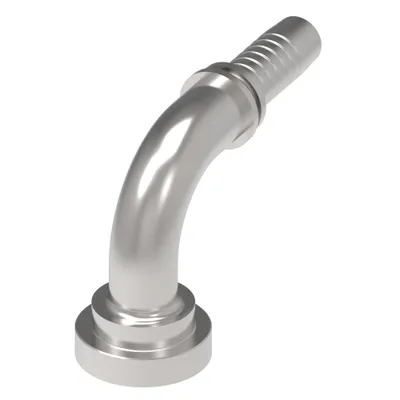

| 87691-16-10Z | 56.000 | 2.780 | 70.612 | 4.480 | 113.792 |
| 87691-12-10Z | 56.000 | 2.658 | 67.501 | 3.543 | 90.000 |
| 87691-12-08Z | 41.000 | 2.441 | 61.999 | 3.667 | 93.149 |
| 87691-08-08Z | 41.000 | 2.284 | 58.001 | 2.854 | 72.499 |
| 87691-08-08SR | 41.000 | 2.284 | 58.001 | 2.854 | 72.499 |

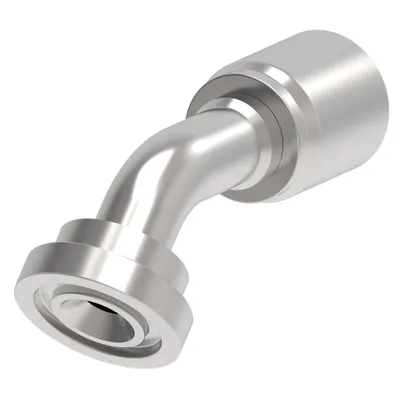

| 87641Y-16-16Z | 88.900 | 3.267 | 82.982 | 6.287 | 159.690 |
| 87641-24-20Z | 105.800 | 3.774 | 95.849 | 6.291 | 159.799 |
| 87641-20-16Z | 91.700 | 3.140 | 79.756 | 6.520 | 165.608 |
| 87641-08-08Z | 58.900 | 1.960 | 49.784 | 4.180 | 106.172 |
| 87611Y-24-24Z | 75.000 | 2.697 | 68.501 | 5.787 | 147.000 |
| 87611Y-20-20Z | 66.000 | 2.413 | 61.290 | 4.724 | 119.990 |
| 87611Y-16-16Z | 56.998 | 1.929 | 48.997 | 4.094 | 103.988 |
| 87611Y-16-12Z | 56.000 | 1.874 | 47.600 | 3.720 | 94.488 |
| 87611Y-08-08Z | 47.000 | 1.248 | 31.699 | 3.090 | 78.486 |
| 87611-32-32Z | 85.000 | 3.125 | 79.375 | 9.307 | 236.398 |
| 87611-24-24Z | 70.000 | 2.500 | 63.500 | 5.787 | 147.000 |
| 87611-20-24Z | 70.000 | 2.126 | 54.000 | 5.433 | 138.001 |
| 87611-16-16SR | 57.000 | 1.874 | 47.600 | 4.095 | 104.000 |
| 87611-12-10Z | 50.500 | 1.626 | 41.300 | 3.327 | 84.501 |
| 87611-12-08Z | 50.000 | 1.626 | 41.300 | 3.209 | 81.501 |
| 87611-08-08Z | 47.000 | 1.248 | 31.699 | 3.091 | 78.501 |
| 87611-08-08SR | 47.000 | 1.248 | 31.699 | 3.091 | 78.501 |
| 87391Y-40-32Z | 131.750 | 6.152 | 156.251 | 9.677 | 245.801 |
| 87391Y-32-32Z | 131.750 | 6.073 | 154.249 | 9.427 | 239.451 |
Common to all listed parts
| Construction Style | Crimp |
| Thread sealant | No |
