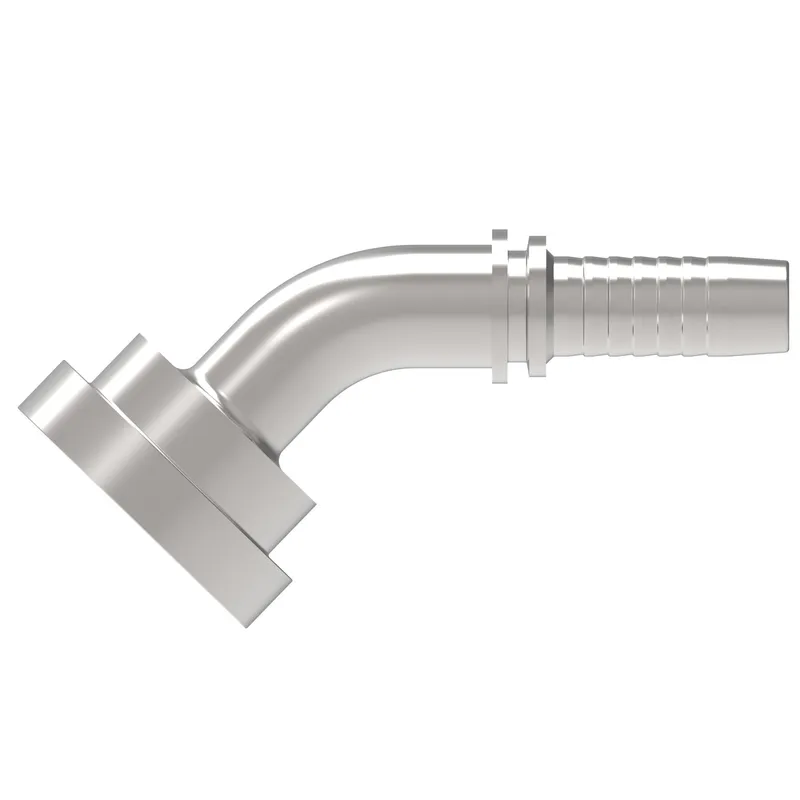

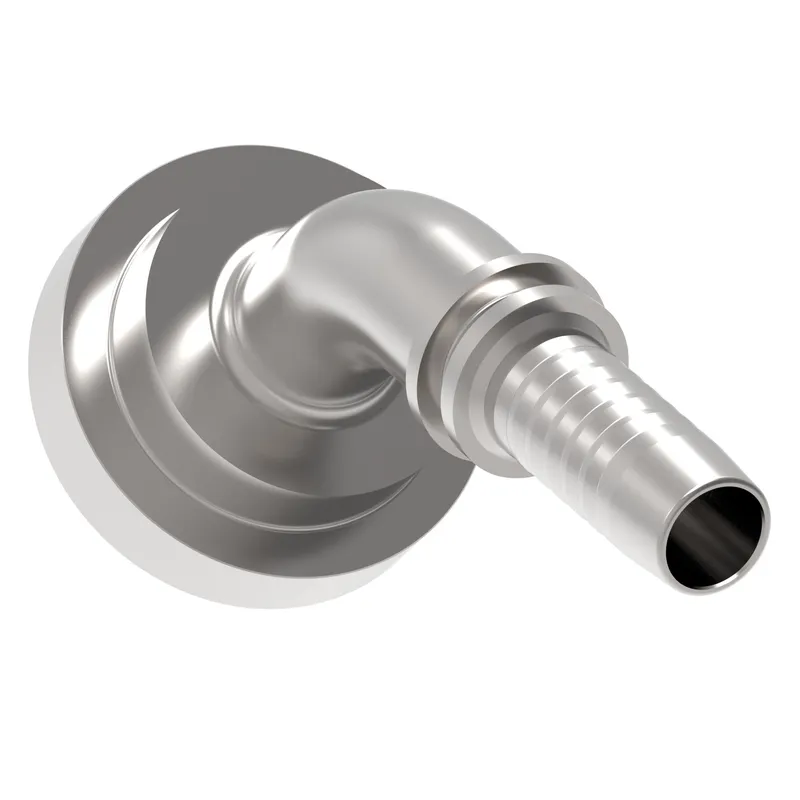

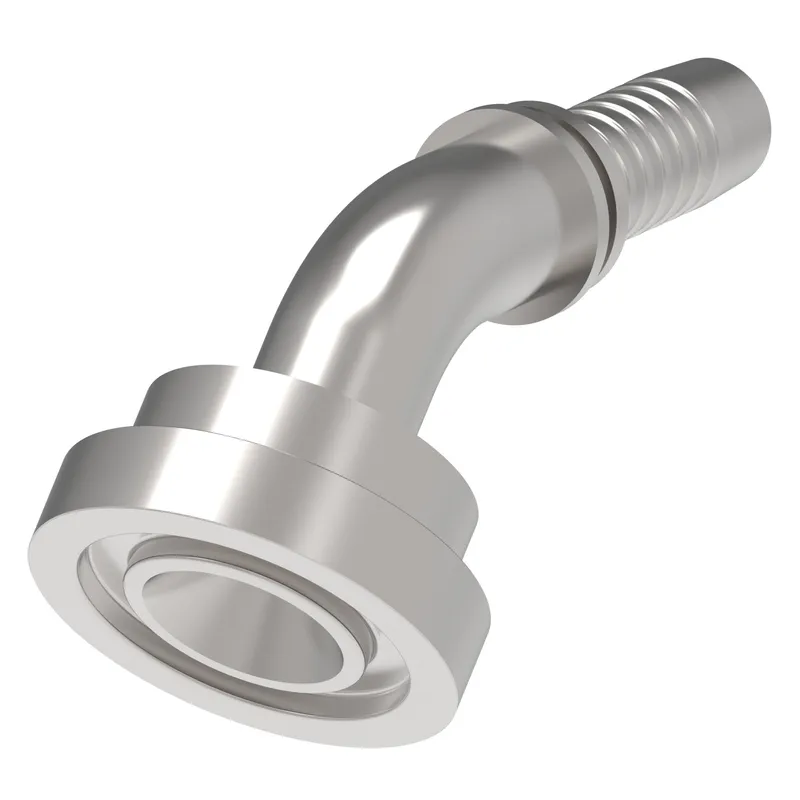

Danfoss 87641-08-08Z

HOSE NIPPLE ASSY, 2P/08, C62/08, CS, 45D

MPN
87641-08-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87641-08-08Z?

Danfoss HOSE NIPPLE ASSY, 2P/08, C62/08, CS, 45D, manufacturer part number 87641-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.287
A dimension MM83.500
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
Drop dimension IN0.945
Drop dimension MM24.00
End size 1-8
End Type 1Split flange code 62
Finish platingZinc plating
Hose cut off factor IN2.318
Hose cut off factor MM58.900
Hose size-8
Inside diameter IN0.393
Inside diameter MM10.000
Product height in1.960
Product height mm49.784
Product length in4.180
Product length mm106.172
Product materialCarbon steel
Product width in1.250
Product width mm31.75
Thread sealantNo
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
