Danfoss 87611-08-08SR

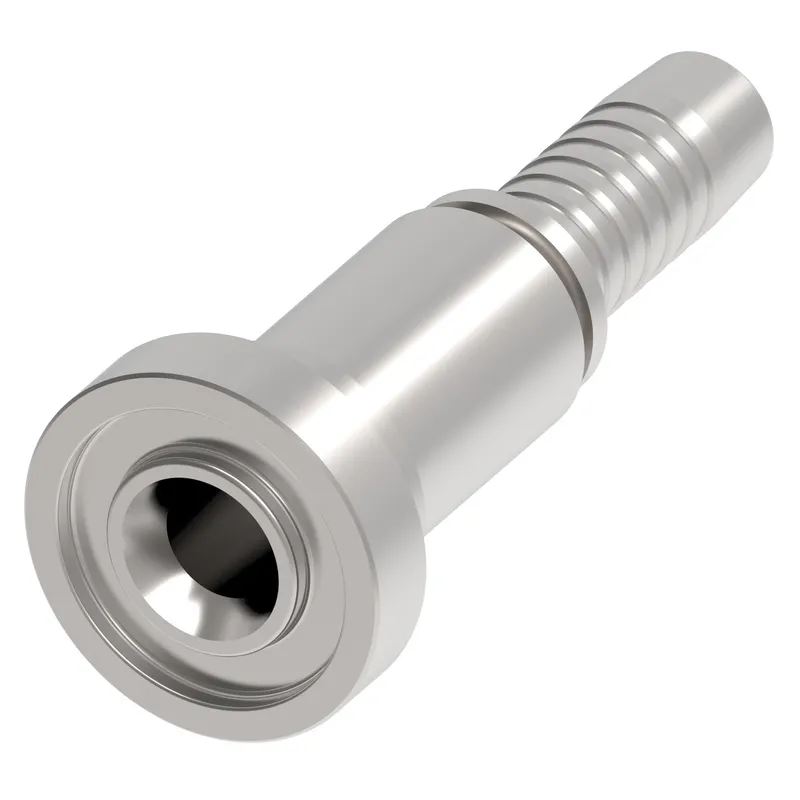

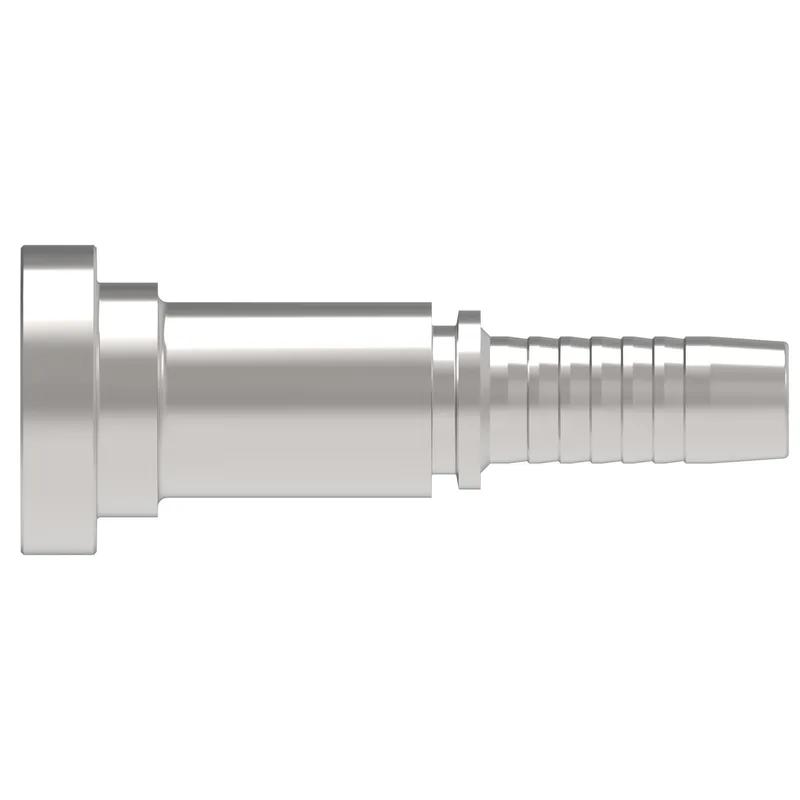

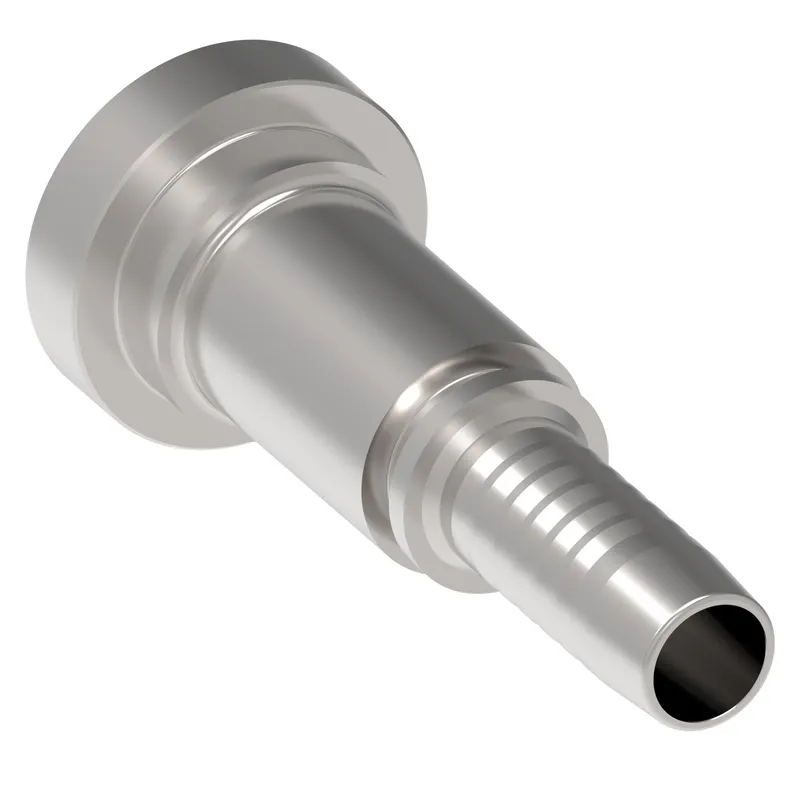

HOSE NIPPLE ASSY, 2P/08, C62/08, AN, STR

MPN: 87611-08-08SR
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87611-08-08SR?

Danfoss HOSE NIPPLE ASSY, 2P/08, C62/08, AN, STR, manufacturer part number 87611-08-08SR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	8.779
A dimension MM	223.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End size 1	-8
End size 2	-8
End Type 1	Split flange code 62
End Type 2	Line/hose/tube
Hose cut off factor IN	1.850
Hose cut off factor MM	47.000
Hose size	-8
Inside diameter IN	0.393
Inside diameter MM	10.000
Product height in	1.248
Product height mm	31.699
Product length in	3.091
Product length mm	78.501
Product material	304 Stainless steel
Product width in	1.248
Product width mm	31.699
Thread sealant	No
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
