Danfoss 87611Y-16-12Z

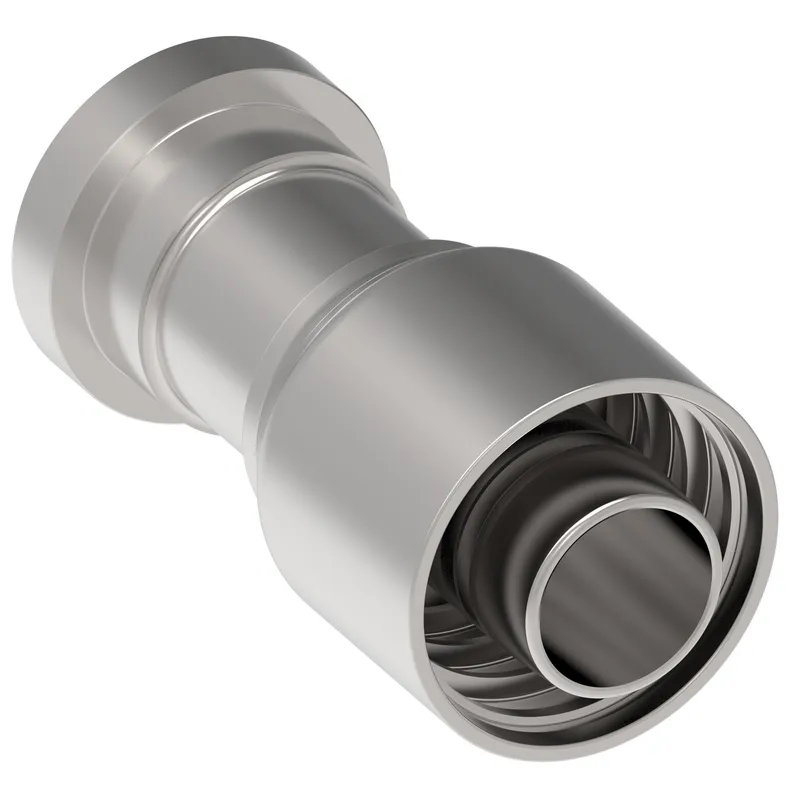

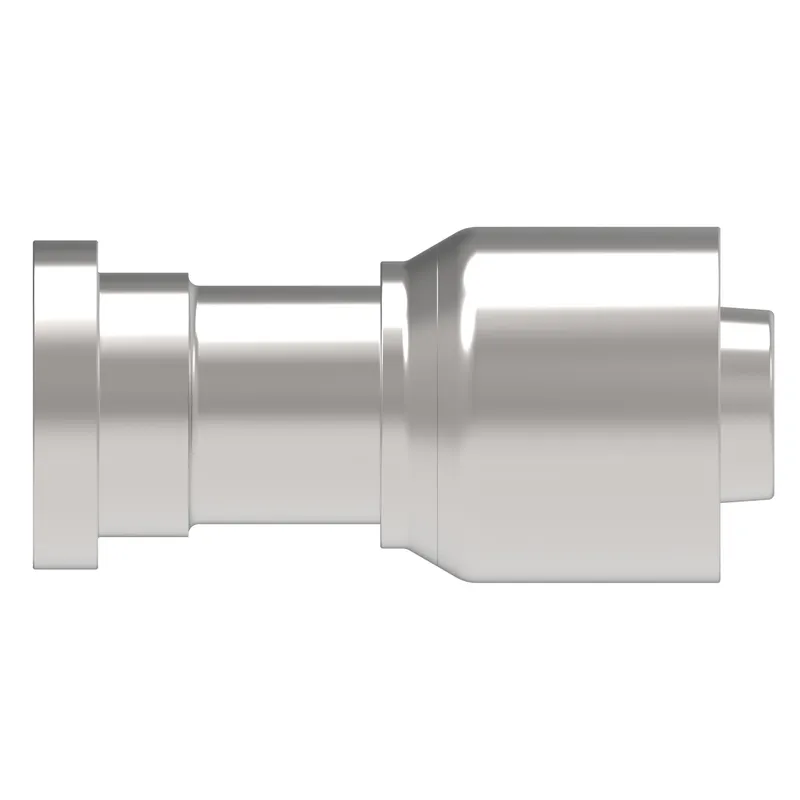

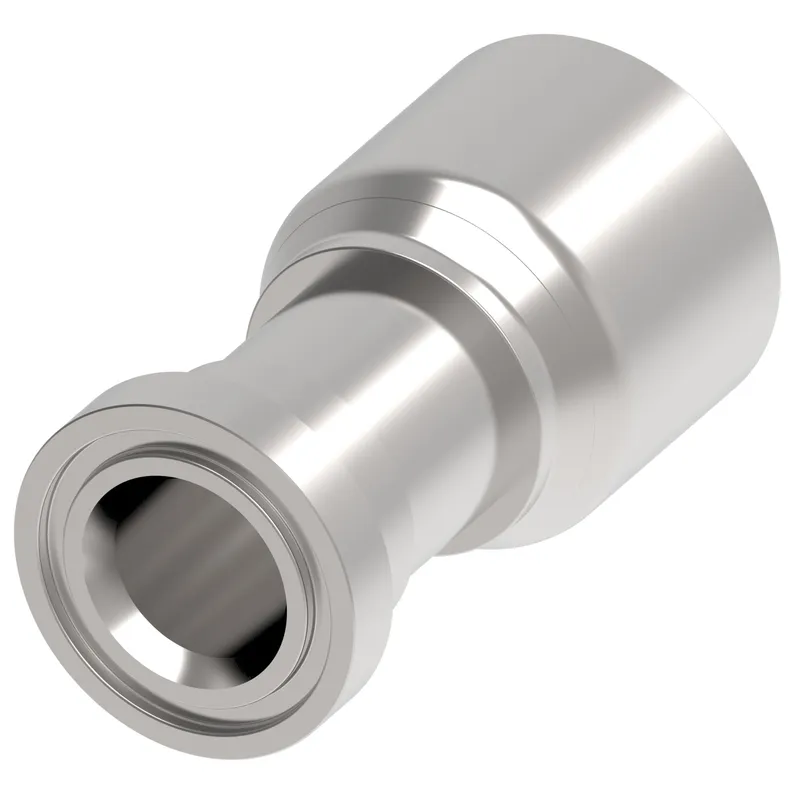

HOSE NIPPLE ASSY, 1P/12, C62/16, CS, STR

MPN
87611Y-16-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87611Y-16-12Z?

Danfoss HOSE NIPPLE ASSY, 1P/12, C62/16, CS, STR, manufacturer part number 87611Y-16-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.720
A dimension MM94.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Construction StyleCrimp
End size 1-16
End Type 1Split flange code 62
Finish platingZinc plating
Hose cut off factor IN2.204
Hose cut off factor MM56.000
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.874
Product height mm47.600
Product length in3.720
Product length mm94.488
Product materialCarbon steel
Product width in1.874
Product width mm47.6
Thread sealantNo
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87611Y-16-12Z: frequently asked questions

When can 87611Y-16-12Z be shipped?

87611Y-16-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87611Y-16-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87611Y-16-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87611Y-16-12Z, subject to availability and destination.
