Danfoss 87391Y-40-32Z

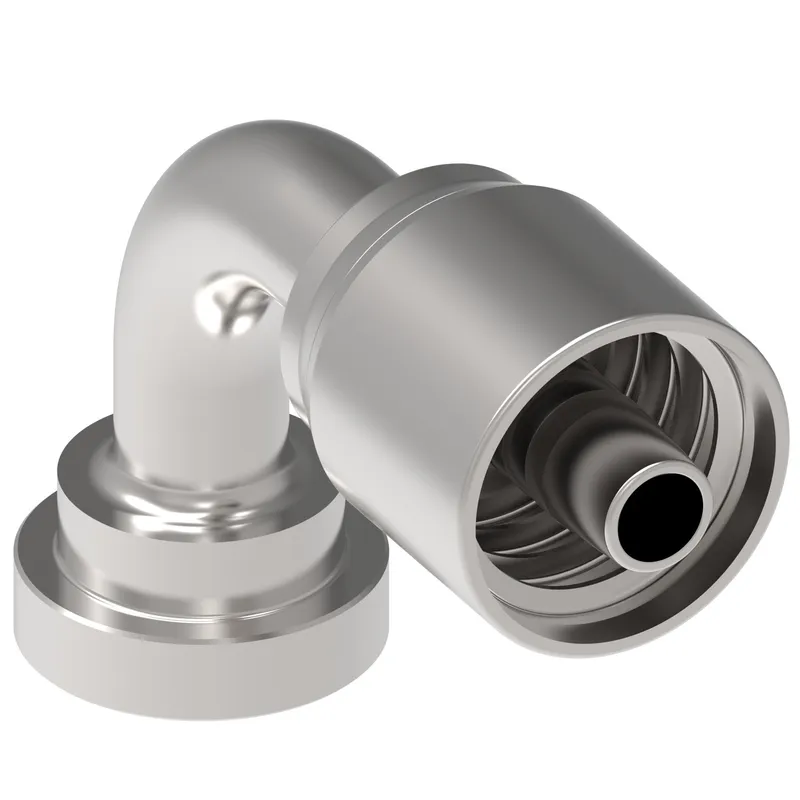

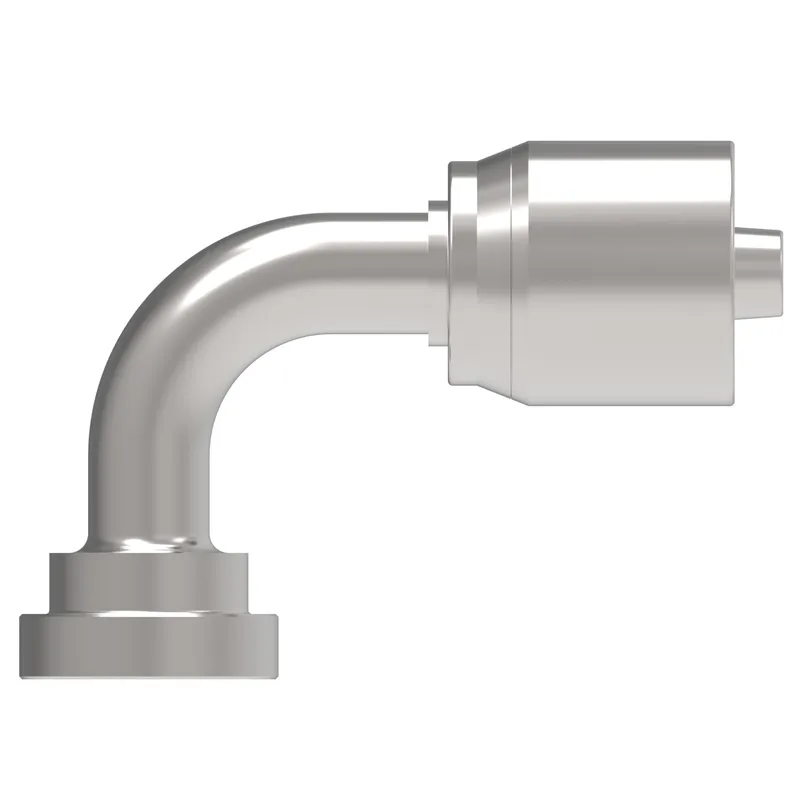

HOSE NIPPLE ASSY, 1P/32, C61/40, CS, 90D

MPN
87391Y-40-32Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87391Y-40-32Z?

Danfoss HOSE NIPPLE ASSY, 1P/32, C61/40, CS, 90D, manufacturer part number 87391Y-40-32Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN8.021
A dimension MM203.750
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN2.000
Compatible hose ID MM50.800
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN4.576
Drop dimension MM116.25
End size 1-40
End size 2-32
End Type 1Split flange code 61
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN5.187
Hose cut off factor MM131.750
Hose size-32
Inside diameter IN1.692
Inside diameter MM43.000
Product height in6.152
Product height mm156.251
Product length in9.677
Product length mm245.801
Product materialCarbon steel
Product width in3.311
Product width mm84.099
Thread sealantNo
Working pressure max BAR207
Working pressure max PSI3002
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87391Y-40-32Z: frequently asked questions

When can 87391Y-40-32Z be shipped?

87391Y-40-32Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391Y-40-32Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391Y-40-32Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391Y-40-32Z, subject to availability and destination.

More Danfoss (Drives) parts

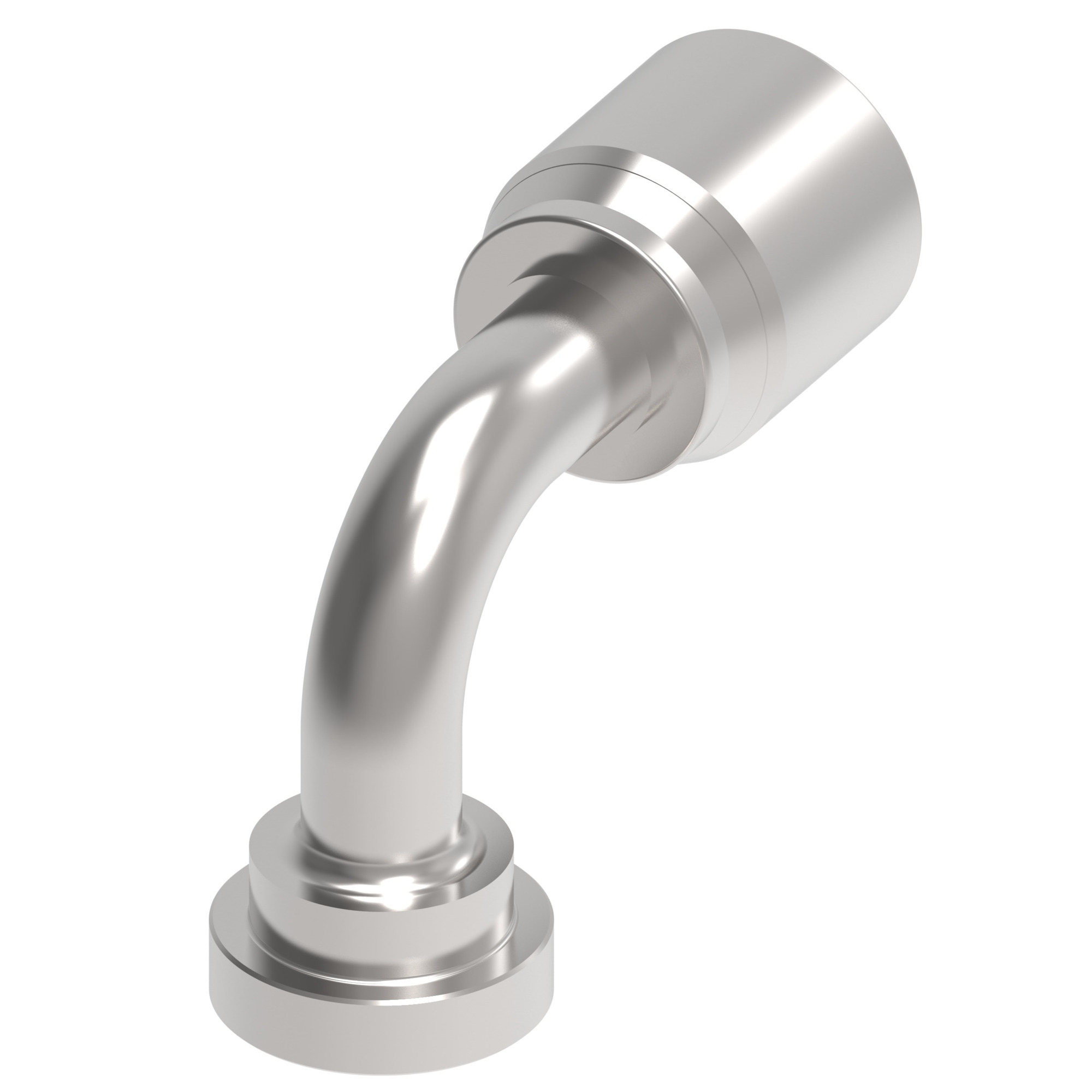

Danfoss 87391Y-24-32ZN – HOSE NIPPLE ASSY, 1P/32, C61/24, CS, 90D
